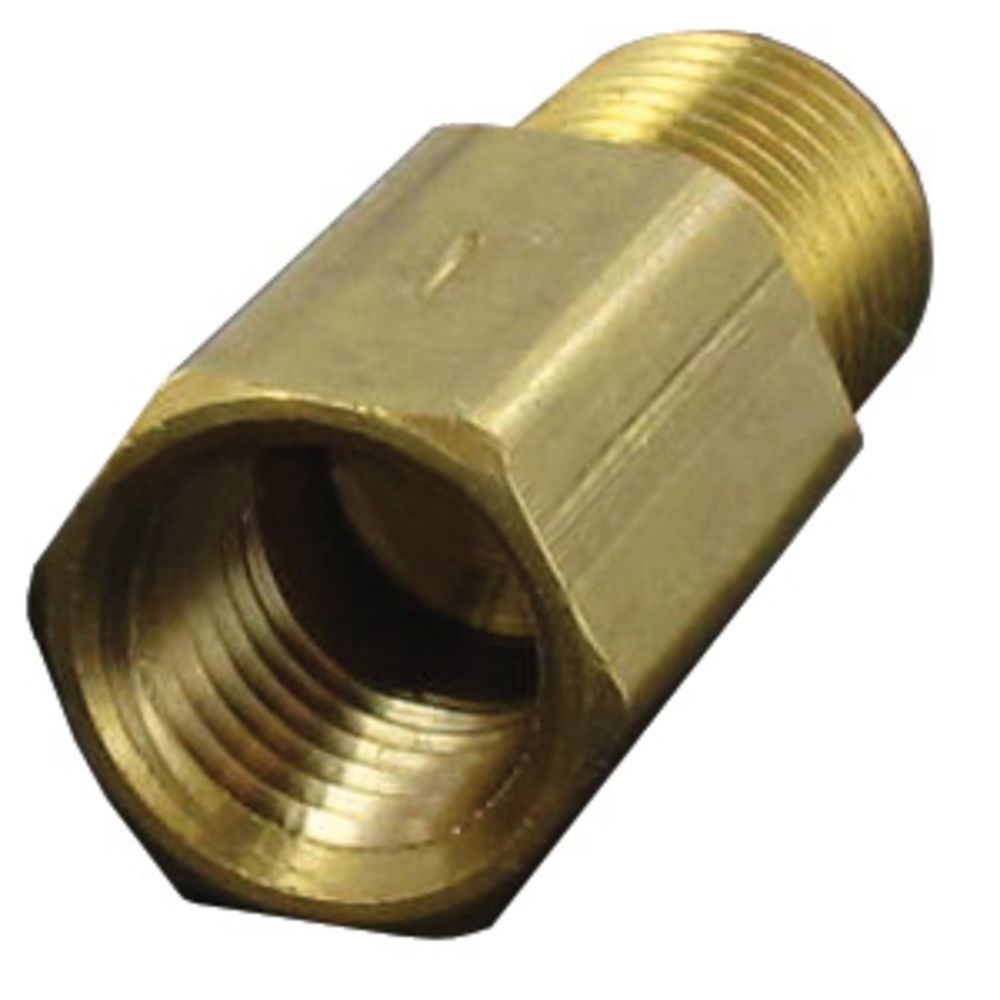

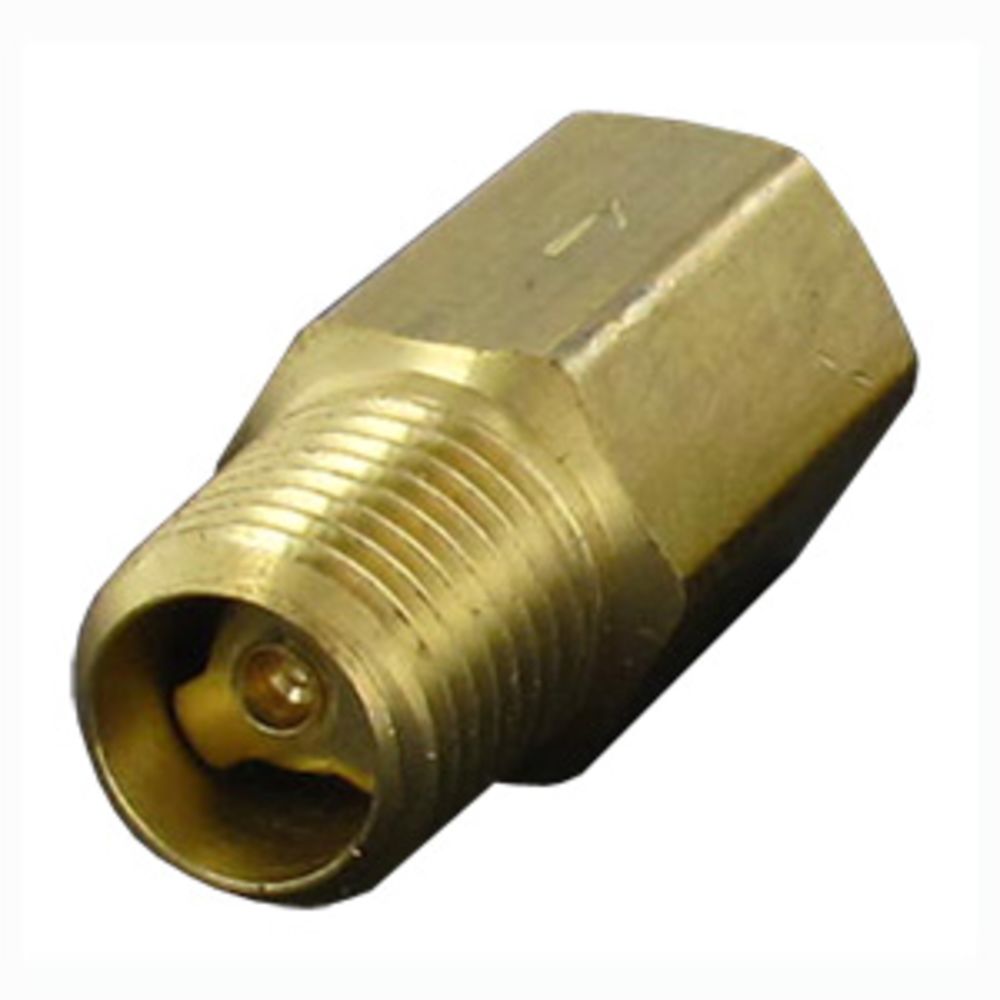

Inline Brass Check Valve - 1/4" MPT inlet x 1/4" FPT Outlet

CV14B-MF CV14B-MxF Show Picture 1Show Picture 2

Made in USA

Part Number: CV14B-MF
Alt. Part Number: CV14B-MxF
In Stock, Ready to Ship!
MSRP: $11.48
Price: $8.20
Qty:

How do we compare?
$20.50 $12.30 more ea @ h2oPurificationSystems
  as of May 22, 2018

CV14B-MF Brass Check Valve - 1/4" MPT x 1/4" FPT Features:


Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

  • Material:  Brass
  • Connection:  1/4 Male NPT inlet x 1/4 Female NPT outlet
  • Dimensions: 1.41" x 11/16" Hex
  • Cracking Pressure:  1.5 psi +/- 1/2 psi
  • Flow Rates:  1.28 gpm @ 5 psi, 1.92 gpm @ 10 psi, 2.36 gpm @ 15 psi, 2.8 gpm @ 20 psi
  • O-Rings: Buna-N FDA grade (Viton available by special order)

Certifications
Dimensions
1.41" x 11/16" Hex
General
Material
Brass
Operating Condition
5 psi
1.28 gpm
