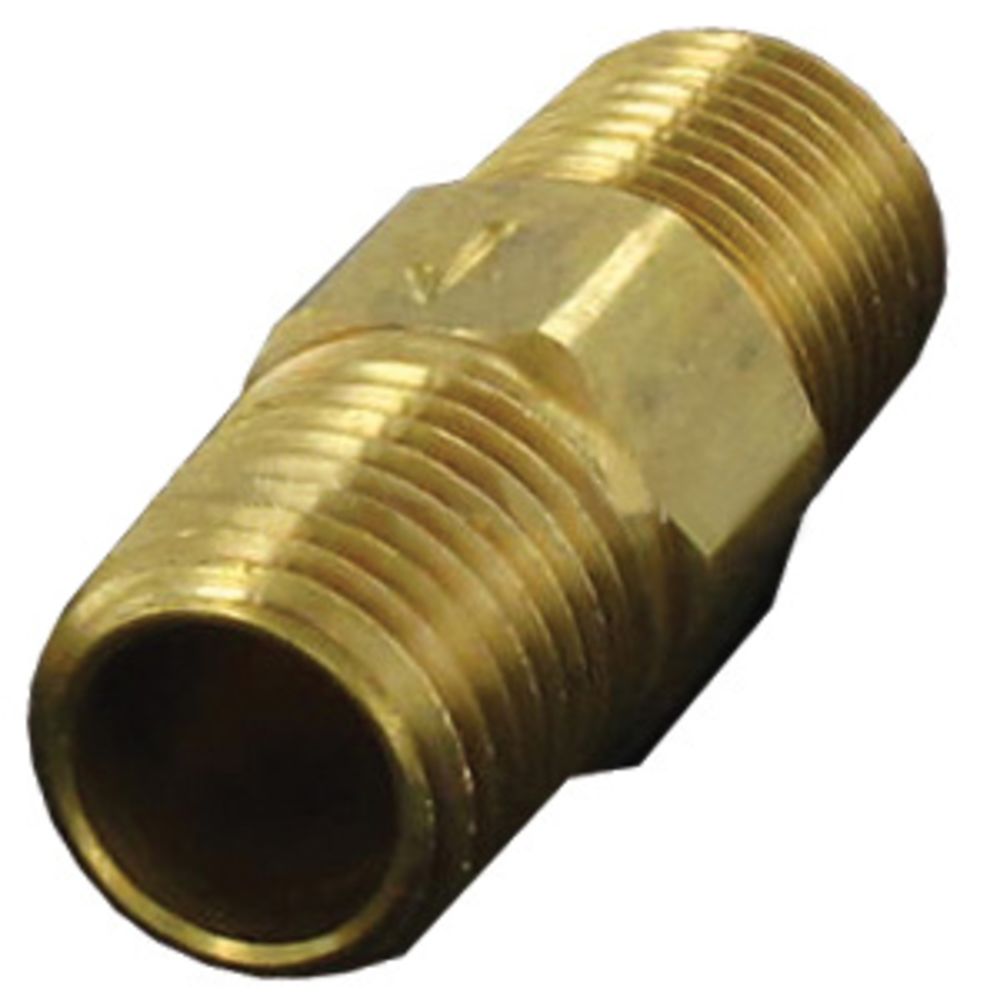

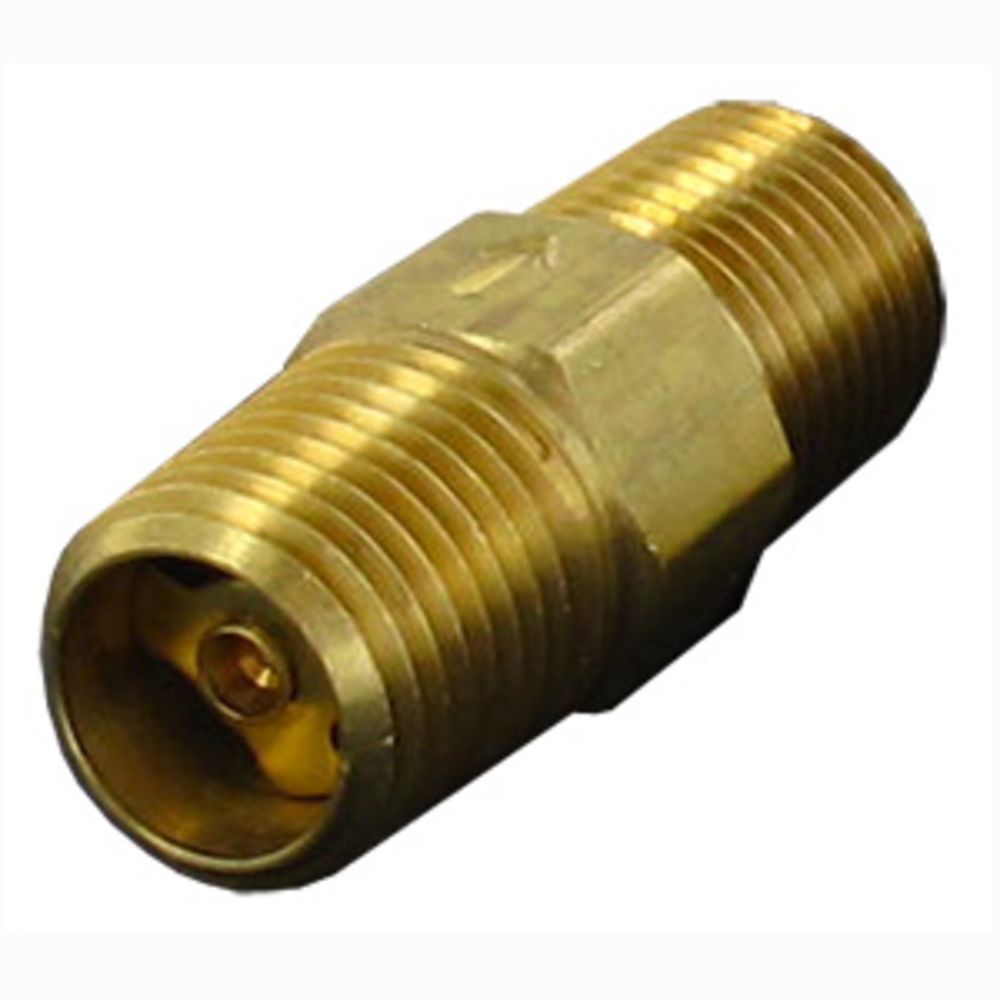

Inline Brass Check Valve - 1/4" MPT Inlet x 1/4" MPT Outlet

CV14B-MM CV14B-MxM Show Picture 1Show Picture 2

Made in USA

Part Number: CV14B-MM
Alt. Part Number: CV14B-MxM
In Stock, Ready to Ship!
MSRP: $9.51
Price: $6.79
Qty:


CV14B-MM Brass Check Valve - 1/4" MPT x 1/4" MPT Features:


Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Also Replaces MarkVII Brass Check valves FJ7050 and 4604M4M.

  • Material:  Brass
  • Connections: 1/4" MPT Inlet x 1/4" MPT Outlet
  • Dimensions: 1½" x 9/16" Hex
  • Cracking Pressure:  1.5 psi +/- 1/2 psi
  • Flow Rates:  1.28 gpm @ 5 psi, 1.92 gpm @ 10 psi, 2.36 gpm @ 15 psi, 2.8 gpm @ 20 psi
  • O-Rings: Buna-N FDA grade (Viton available by special order)

Certifications
Dimensions
1½" x 9/16" Hex
General
Material
Brass
Operating Condition
1.28 gpm @ 5 psi
Mouse over for more information.
