Aquatec 5852-2K77-N584 Pump 1 GPM, 3/8"JG, 115V

5852-2K77-N584 AquatecShow Picture 1Show Picture 2Show Picture 3
Mouse over to view larger image.
You might like:

NSF Certified  Made in USA

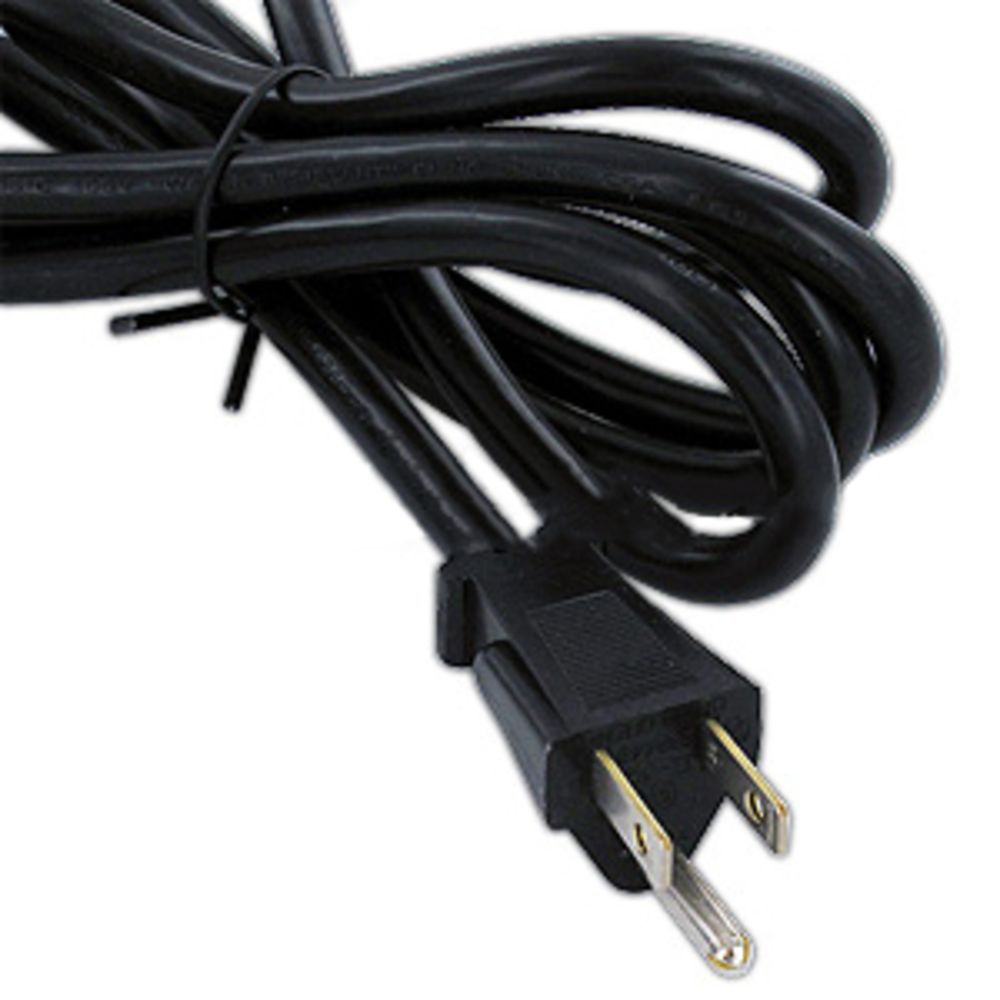

Power Cord Included

Demand/Delivery Pump

Free Shipping!
Model: 5800
Part Number: 5852-2K77-N584
In Stock, Ready to Ship!
MSRP: $163.79
Price: $116.99
Qty:

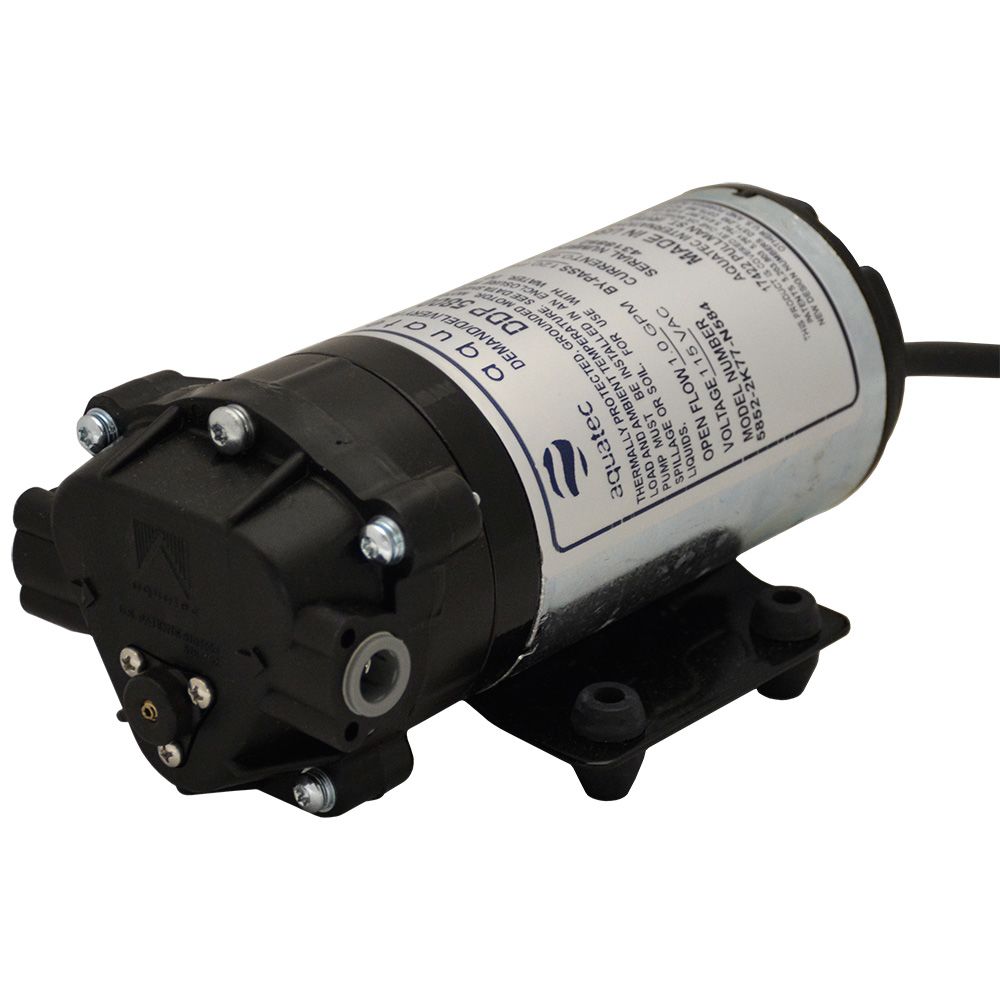

5800 Demand Pump 1gpm 120psi, 3/8"JG, w/Viton Seals Features:


The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

  • Flow rate: 1gpm @ 120 psi
  • 120 PSI internal bypass switch
  • Amps: 0.85 Amps @ 120 psi
  • Volts: 115 VAC
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal

Aquatec 5852-2K77-N584 Demand Pump Benefits:


  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage



Aquatec 5852-2K77-N584 Demand Pump Technical Information
Aquatec 5800 Series Demand Pump Data
Certifcations
NSF 58
1 year
Made in USA
Dimensions
8.46 "
3.6 "
4 "
Materials
Polypropylene
Viton
Santoprene
Operating Conditions
140 max °F
Self prime up to 7 ft
Pump Specifications
Demand
3/8" QC
3/8" QC
1 @ 120 psi gpm
115VAC
0.85 @ 120 psi AMP
1600 RPM
120 psi
Cord/No Switch Wires
