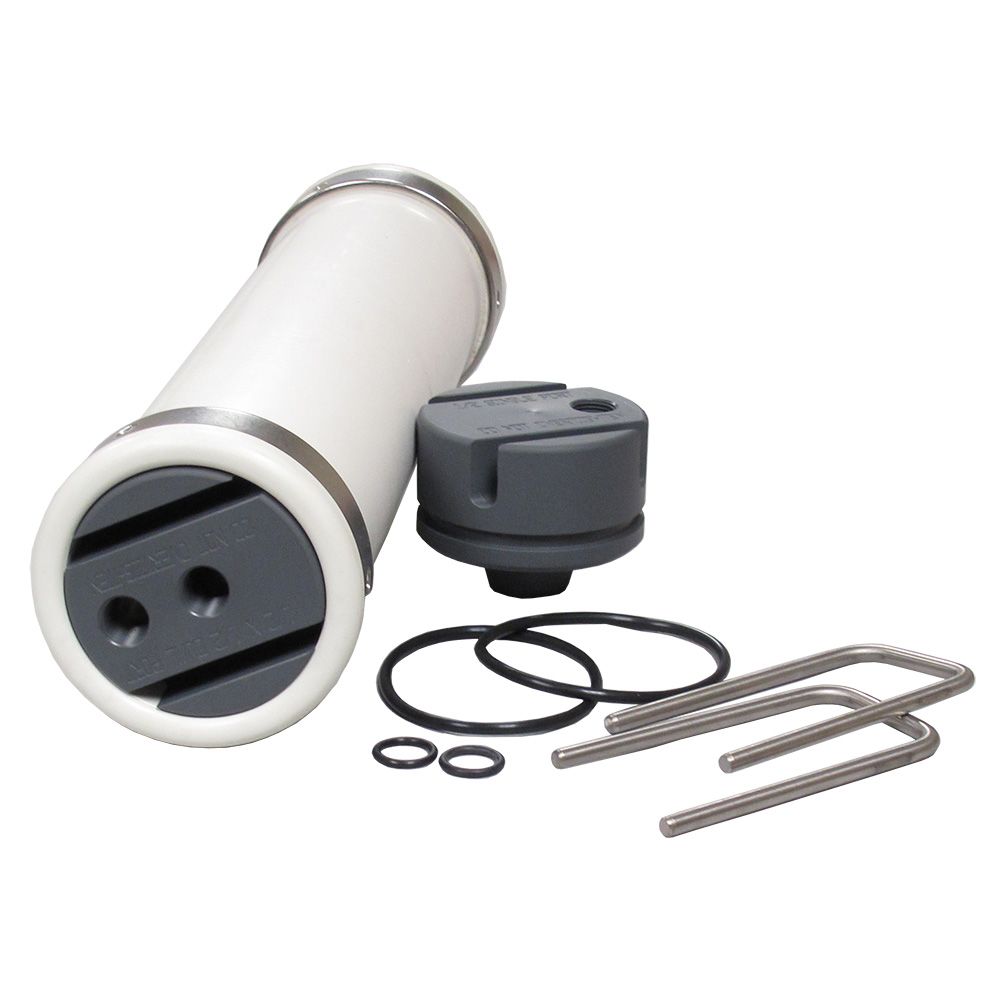

PVC Membrane Housing 4" x 21", U-Pin

MHPVCU-4021NS Hydrocomponents & Technologies, Inc.
Mouse over to view larger image.

Free Shipping!
Part Number: MHPVCU-4021NS
This item is no longer available. We have replaced it with:
Stainless Steel Membrane Housing 4" x 21" 1/2" Feed

PVC Membrane Housing 4" x 21" U-Pin


  • White PVC housing
  • NSF Approved
  • Self-locking 304 Stainless Steel U-Pin
  • Ethylene Propylene FDA Approved O-ring
  • Sturdy PVC Collars
  • Flush mount easy aligning PVC end plugs
  • Max separation between permeate port and feed/concentrate port allow the use of large fittings

Ideal for today's ultra-low pressure membrane applications. PVC pressure vessels should not be placed in direct sunlight or near UV sources. PVC housing expand slightly when pressurized and must be allowed to "breathe".

HTCI PVC U-Pin Vessels 150 psi Specifications
Certifications
Dimensions
4 "
21 "
Materials
PVC
PVC
Ethylene Propylene
Operating Conditions
150 psi
Housing Specifications
1/2"
1/2"
U-Pin
