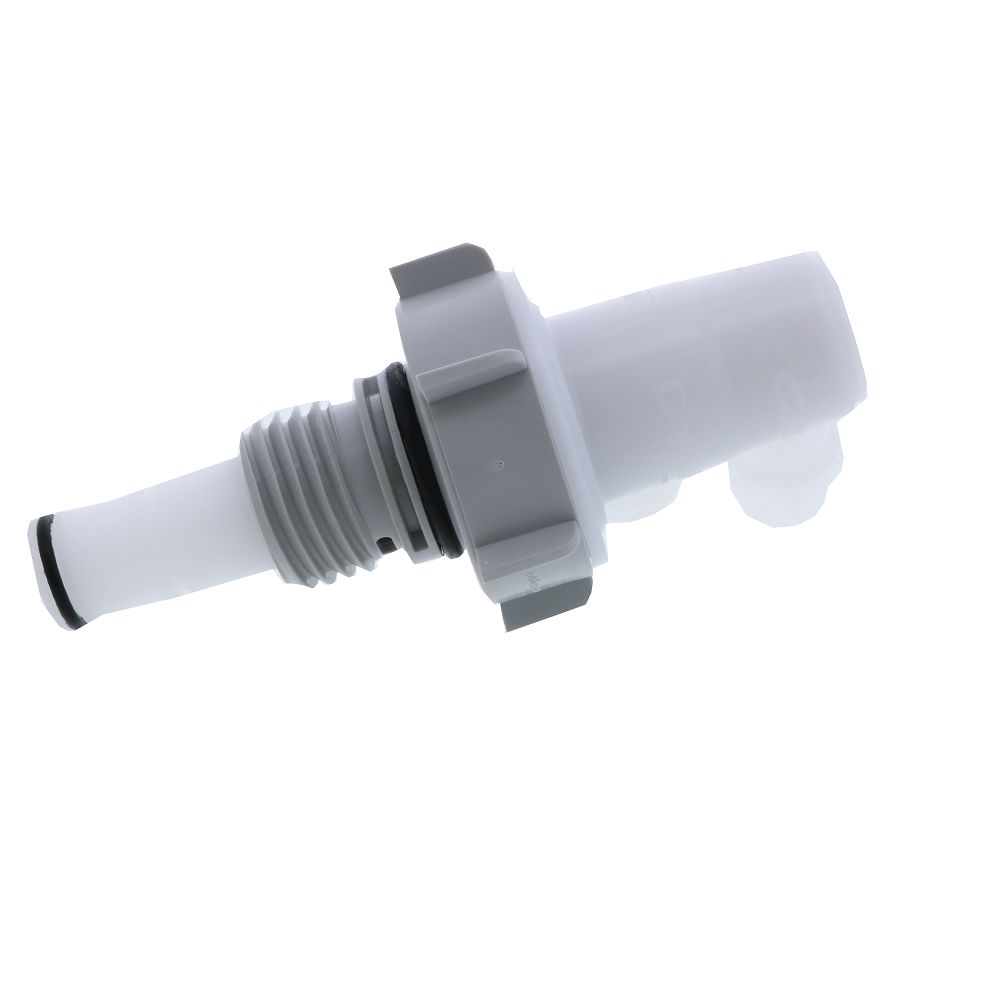

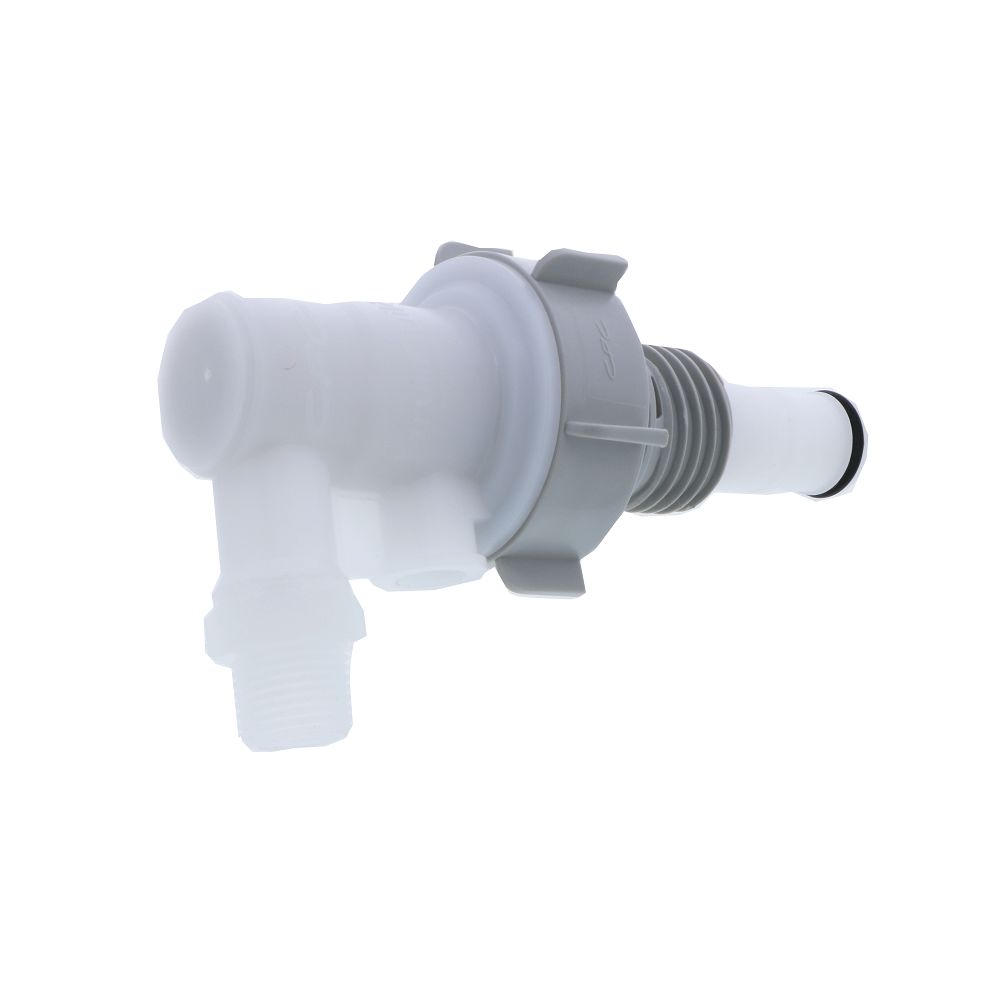

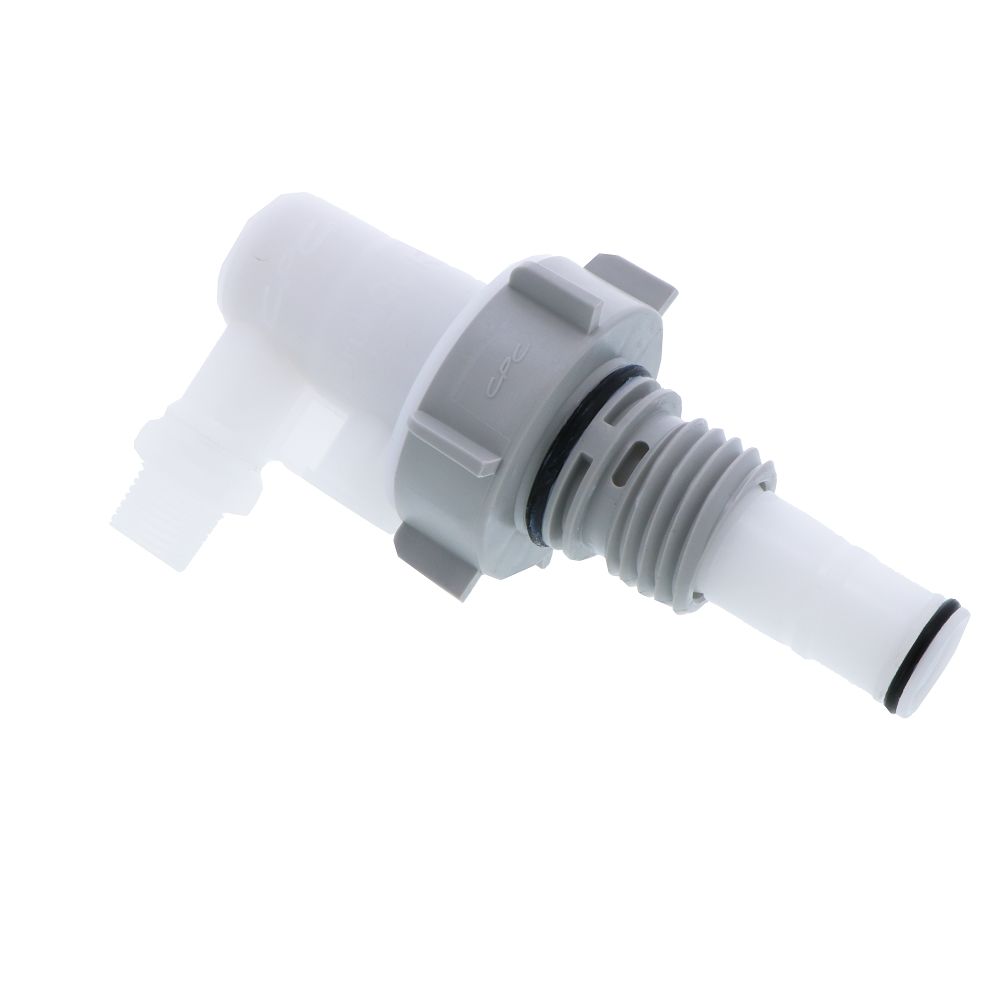

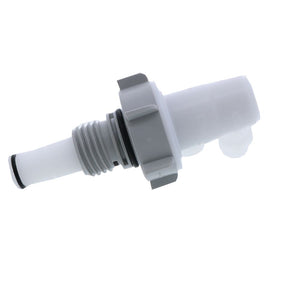

DrumQuik DQPRO120208206 PRO Elbow Coupler EPDM O-Rings Hastelloy C Spring - 1/2 MNPT

Part Number: DQPRO120208206

1 4

Sold Out

Colder Products

DrumQuik DQPRO120208206 PRO Elbow Coupler EPDM O-Rings Hastelloy C Spring - 1/2 MNPT

Part Number: DQPRO120208206

MSRP: $106.10

$106.10

Quantity

Unit Price

Price

Savings

$106.10

—

$103.44

$517.24

$100.79

$5,039.75

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

DrumQuik PRO Couplers are designed with quick connect/disconnect capabilities in order to allow for faster drum change outs. These couplers come with an automatic shutoff valve and are constructed out of polypropylene. Using DrumQuik dispensing systems helps users keep a clean and safe work environment.

Specifications:

Material: Polypropylene
Mounting Option: Thread
Seal Option: EPDM
Valve Spring: Hastelloy C
Pressure Range: 0 to 45 psig (0 to 3.1 bar)
Temperature Range: 32ºF to 120ºF
Sold individually
Also available in bags of 5

Specifications

Product Details
Body Material	Polypropylene
Inlet Connection	1/2" MPT
Max Pressure (Psi)	45
Max Temp (°F)	120°F
Min Pressure (Psi)	0
Min Temp (°F)	32°F
Mounting Options	Thread
Nsf Version	No
O-Rings	EPDM
Outlet Connection	1/2" MPT
Series	DrumQuik
Size	1/2"
Spring	Hastelloy C
Valve Type	Valved
Connection Type	Male (MPT)
Shipping Dimensions
Shipping Length	6.38 in.
Shipping Width	3 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Height	3 in.
Product Length	6.38 in.
Product Width	3 in.
Product Weight (lbs)	0.01875

Product Details
Body Material	Polypropylene
Inlet Connection	1/2" MPT
Max Pressure (Psi)	45
Max Temp (°F)	120°F
Min Pressure (Psi)	0
Min Temp (°F)	32°F
Mounting Options	Thread
Nsf Version	No
O-Rings	EPDM
Outlet Connection	1/2" MPT
Series	DrumQuik
Size	1/2"
Spring	Hastelloy C
Valve Type	Valved
Connection Type	Male (MPT)
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	13 in.
Shipping Height	13 in.
Product Weight & Dimensions
Product Weight (lbs)	2.2

Product Details
Body Material	Polypropylene
Inlet Connection	1/2" MPT
Max Pressure (Psi)	45
Max Temp (°F)	120°F
Min Pressure (Psi)	0
Min Temp (°F)	32°F
Mounting Options	Thread
Nsf Version	No
O-Rings	EPDM
Outlet Connection	1/2" MPT
Series	DrumQuik
Size	1/2"
Spring	Hastelloy C
Valve Type	Valved
Connection Type	Male (MPT)
Product Weight & Dimensions
Product Weight (lbs)	6

Downloads

DrumQuik DQPRO120208206 PRO Elbow Coupler EPDM O-Rings Hastelloy C Spring - 1/2 MNPT Manual
