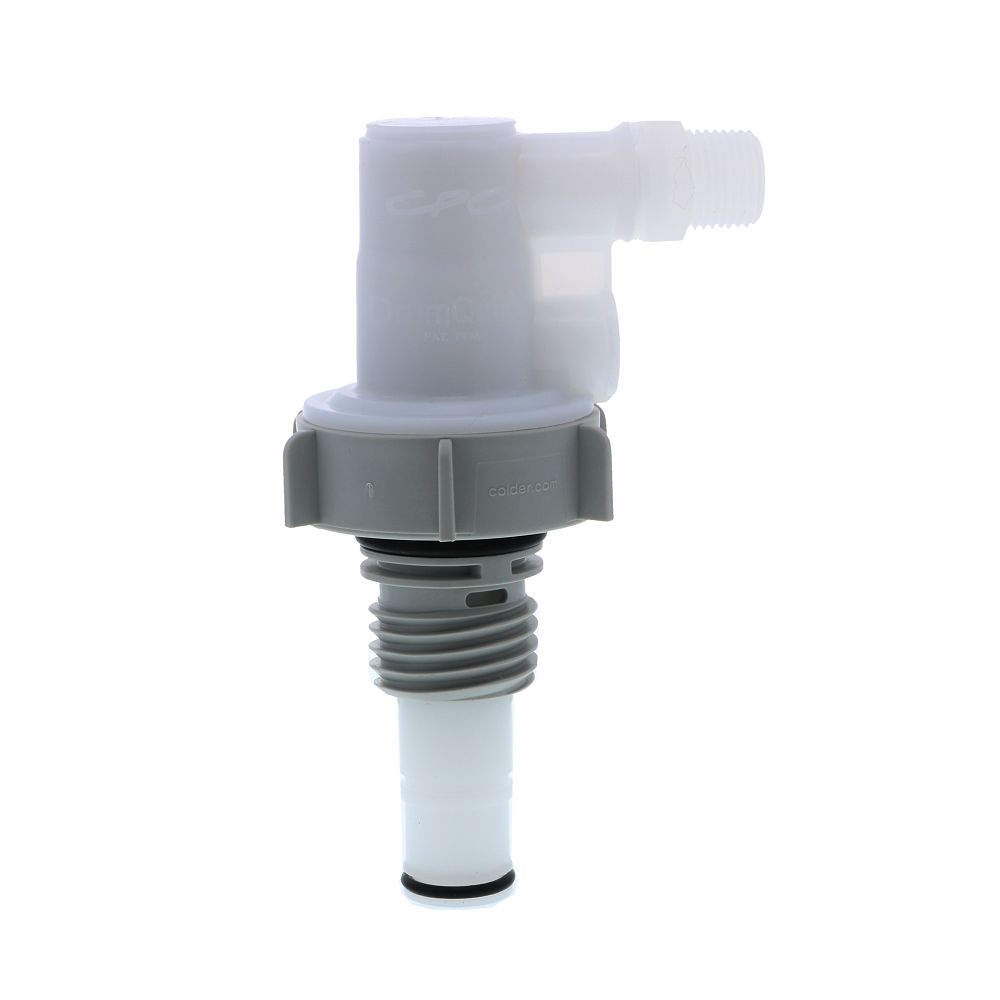

DrumQuik PRO Couplers are designed with quick connect/disconnect capabilities in order to allow for faster drum change outs. These couplers come with an automatic shutoff valve and are constructed out of polypropylene. Using DrumQuik dispensing systems helps users keep a clean and safe work environment.
Specifications:
Specifications:
- Material: Polypropylene
- Mounting Option: Thread
- Seal Option: EPDM
- Valve Spring: 316 Stainless Steel
- Pressure Range: 0 to 45 psig (0 to 3.1 bar)
- Temperature Range: 32ºF to 120ºF
- Sold individually
- Also available in bags of 5
Weight & Dimensions
Weight (lbs) | 1 |
Details
Series | DrumQuik |
Max Temp (°F) | 120 |
Max Pressure (Psi) | 45 |
Min Temp (°F) | 32 |
Min Pressure (Psi) | 0 |
Bag Quantity | 5 |
Body Material | Polypropylene |
Mounting Options | Thread |
Seal Material | EPDM |
Size | 1/2" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Inlet/Outlet Connection | 1/2" MPT |
