SharkBite® Ice Maker Connection Kit

5.0
(1 reviews)
Part Number: 25024

SharkBite® Ice Maker Connection Kit

5.0
(1 reviews)
Part Number: 25024
MSRP: $71.50
Regular price $42.76
Quantity
Unit Price
Price
Savings

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The SharkBite® Ice Maker Connection Kit contains components for installing a water supply line to an ice maker. This kit is also ideal if you need to replace an old or leaking saddle valve. No special tools, soldering, glue, tape, or clamps are needed. As you insert the pipe into this push-to-connect fitting the stainless-steel teeth clamp down tightly while the built-in O-ring compresses ensuring a leak-free seal. If any of these SharkBite® fittings need to be disconnected simply slip the disconnect tool behind the collet firmly and the fitting will disconnect. Unlike many plumbing connectors, SharkBite® fittings can be rotated after assembly to make installation quick and easy.

Applications: Ice maker connection or saddle valve replacement

Features:
  • Innovative push-to-connect quick and reliable connection
  • Lead-free construction for durability and safety
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
  • Connect and Go – No additional securing needed
  • Corrosion resistant to prolong the lifecycle of the fitting
  • Compact and robust lead-free DZR brass body for strong corrosion resistance
NOTE: SharkBite® fittings are certified by NSF to meet standards 14, 61 and 372. This ensures that this fitting can be used for potable water and hydronic heating applications.

*If you do not see the item you need on our site please call and speak with one of our certified water specialists to assist you with a specific item order.

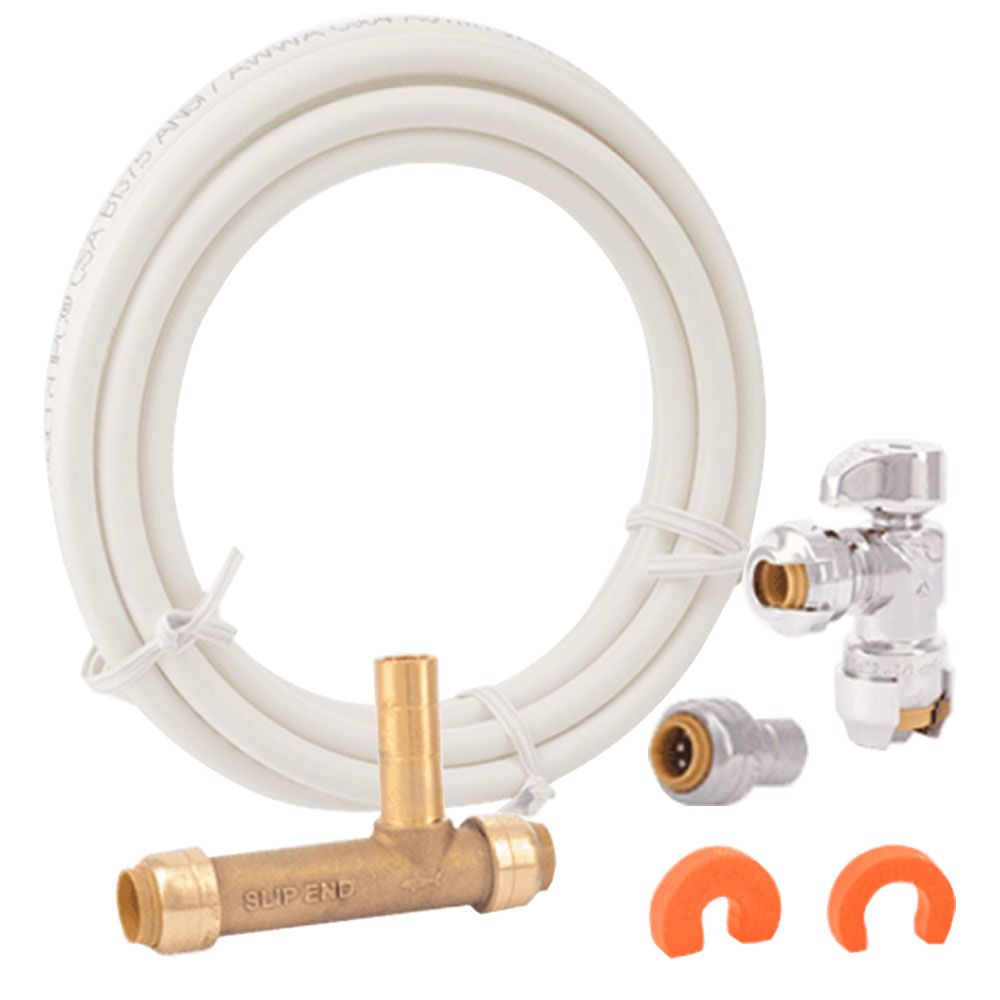

Ice Maker Connection Kit Includes:
Quantity Part Number Description
1 U4482LF 1/2" Service Slip Tee Adapter
1 23048-0000LF 1/2" x 1/4" (3/8" OD) Angle Stop Valve
1 PEX Tubing 10 ft. coil of 1/4" Tubing
1 U3524LF 1/4" (3/8" OD) Compression x 1/4" (3/8" OD) Stop Valve Connector
1 U706 1/4" Disconnect Clip
1 U708 3/8" Disconnect Clip

Specifications

    Product Details

    Body Material

    Lead-Free Brass

    Inlet Connection

    1/4" Compression

    Max Pressure (Psi)

    200

    Max Temp (°F)

    200°F

    O-Rings

    EPDM

    Outlet Connection

    1/4" Compression

    Push-In Size

    1/2" ID

    5/8" OD

    1/4" ID

    3/8" OD

    Size

    1/4"

    Tubing Material

    PEX

    Connection Type

    Compression

    Type

    Fitting Kits

    Warranty & Certifications

    Ca Prop 65

    1

    Product Certification Standard

    NSF/ANSI 61

    Warranty

    25 Year

    Shipping Dimensions

    Shipping Length

    9 in.

    Shipping Width

    7 in.

    Shipping Height

    2 in.

    Product Weight & Dimensions

    Product Height

    2

    Product Length

    9

    Product Width

    7

    Product Weight (lbs)

    0.943

Downloads

SharkBite Ice Maker Connection Kit ManualSharkBite Ice Maker Connection Kit ManualSharkBite Ice Maker Connection Kit ManualSharkBite Ice Maker Connection Kit Manual
