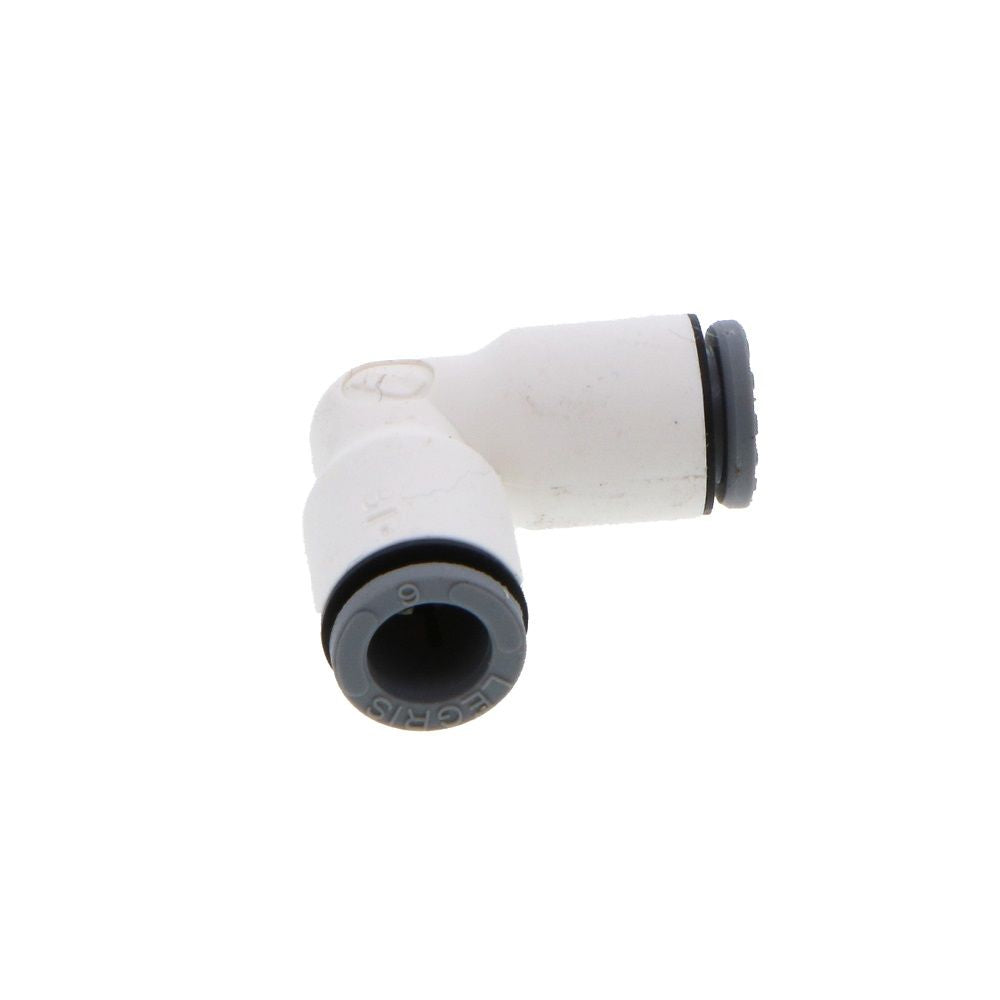

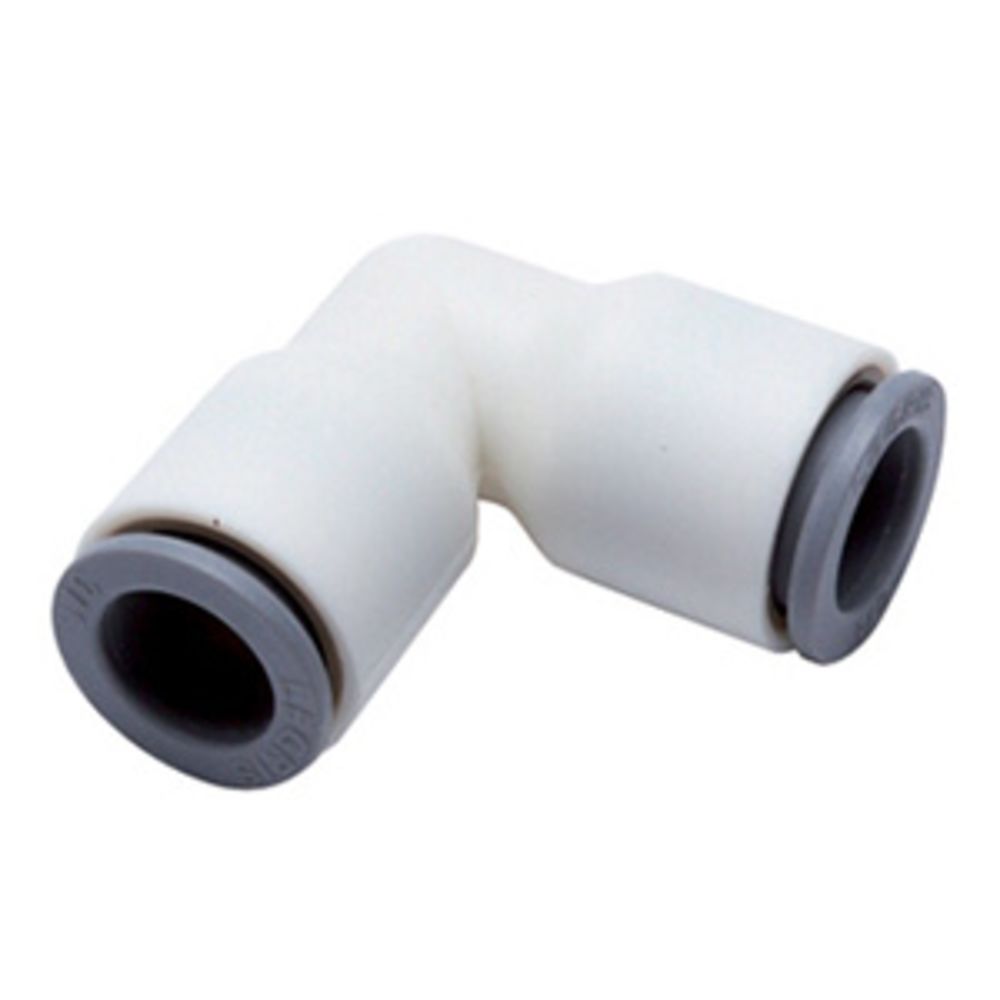

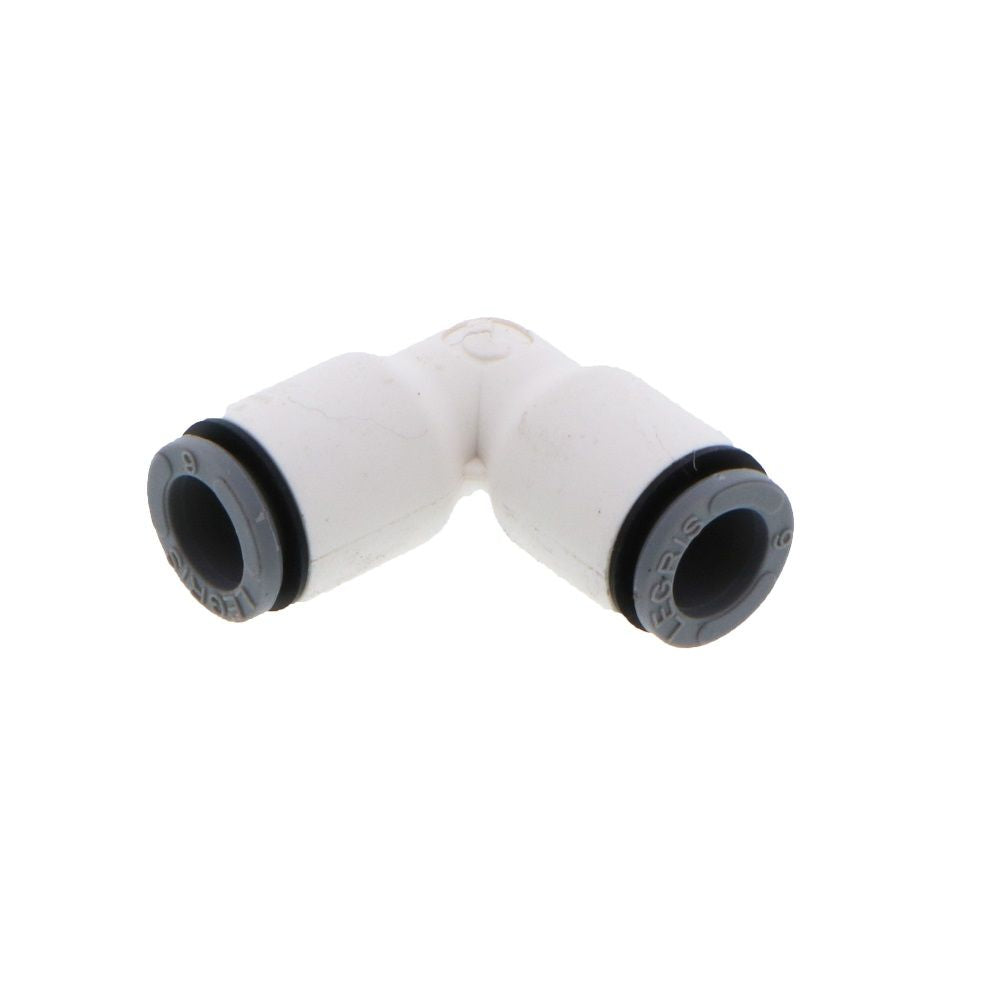

Parker LIQUIfit Union Elbow - 6mm – Fresh Water Systems

The Parker 6302-06-00WP2 LIQUIfit Union Elbow Fittings are designed as an alternative fitting solution for water applications. This LIQUIfit Union Elbow is both NSF certified and FDA approved assuring that no fluid contamination will occur.

Specifications:

Connections: 6mm x 6mm
EPDM O-ring
Engineered Hi-Performance Nylon
High chemical resistance
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F
Suitable for potable liquids and food applications

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Food Beverage Air Carbonation
Body Material	Nylon
Max Pressure (Psi)	230
Max Temp (°F)	200
Min Pressure (Psi)	Vacuum
Min Temp (°F)	35
Mounting Options	Free Floating
Push-In Size	6mm OD
Seal Material	EPDM
Series	LIQUIFit
Shape	90
Color / Finish	White
Sub-Type	Union Elbow
Type	Elbow
Warranty & Certifications
Certifications	NSF 61, NSF 51, FDA Approved

Product Details
Application	Water Food Beverage Air Carbonation
Body Material	Nylon
Max Pressure (Psi)	230
Max Temp (°F)	200
Min Pressure (Psi)	Vacuum
Min Temp (°F)	35
Mounting Options	Free Floating
Push-In Size	6mm OD
Seal Material	EPDM
Series	LIQUIFit
Shape	90
Color / Finish	White
Sub-Type	Union Elbow
Type	Elbow
Warranty & Certifications
Certifications	NSF 61, NSF 51, FDA Approved
