Home / Water Filtration Systems / Food & Beverage Filtration Systems / Optipure 160-50125 FXI-22P+ Triple 20" System
Everpure Commercial

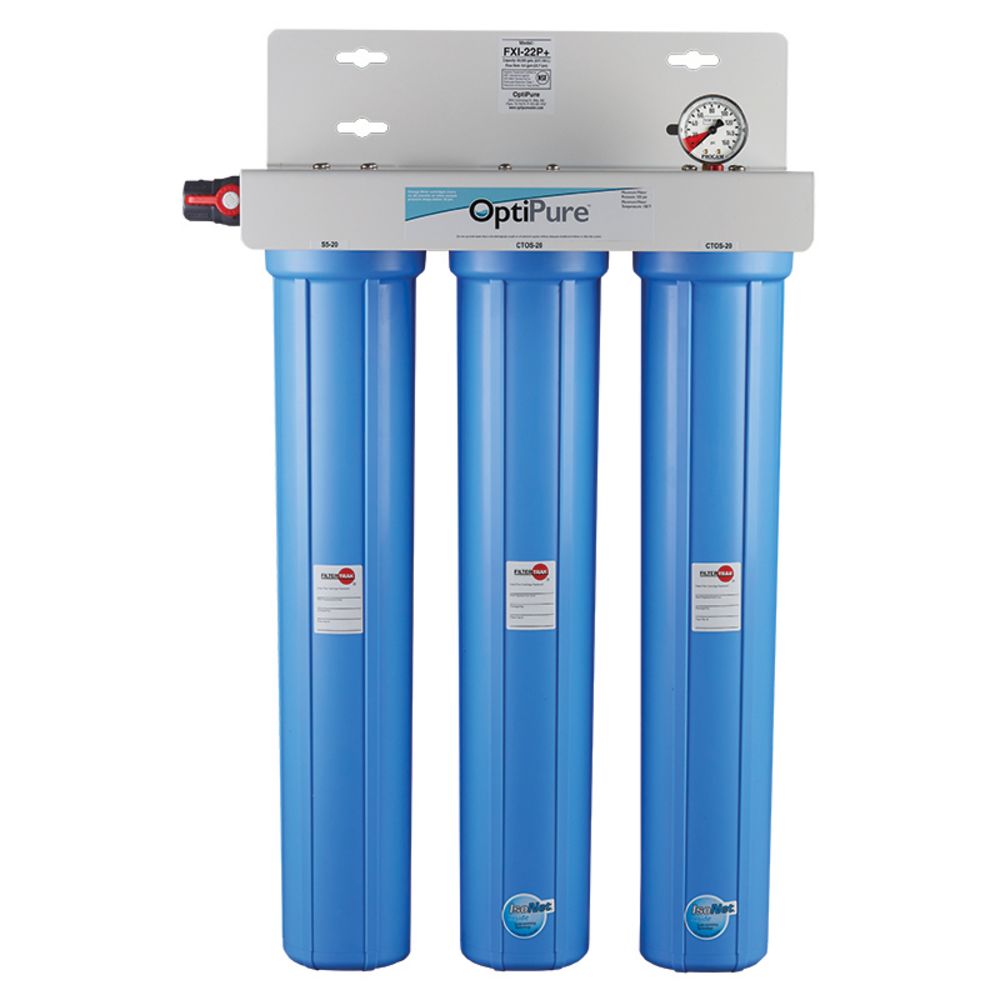

Optipure 160-50125 FXI-22P+ Triple 20" System

Part Number: 160-50125
Your price:
This Optipure 160-50125 FXI-22P+ Triple 20" System is a triple-housing water treatment system with drop-in 20” cartridges that reduces sediment down to 0.5-microns and reduces chlorine, taste & odor at a flow rate of 6.0 gpm for 60,000-gallons. The system includes IsoNet®, OptiPure’s patented scale inhibiting technology, which delivers consistent protection against the precipitation and accumulation of scale and provides a protective barrier to help guard against corrosion.

Features:
  • IsoNet®, OptiPure’s patented scale-inhibiting technology, helps protect equipment against scale and corrosion for the rated capacity of the system.
  • Reduces maintenance frequency and cost, and extends equipment life.
  • Gradient-density sediment filtration protects against dirt, rust and other debris down to 0.5-microns.
  • Additional 5-microns pre-filter provides further protection on water supplies with excessive sediment.
  • High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine.
  • Sturdy, powder-coated mounting bracket and full-flow inlet shut-off valve simplify installation.
  • Built-in pressure gauge allows visual monitoring of when filters need to be changed.
  • Inlet shut-off and depressurization valves make filter replacement quick and simple.
  • Minimizes waste by only replacing drop-in cartridges and reusing filter sumps.
  • NSF Certified under Standard 42.

Specifications:
  • Connection: Inlet & Outlet 1/2” FNPT
  • Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
  • Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
  • Service Flow Rate: 6.0 gpm (22.7 lpm)
  • Sediment Reduction: 0.5 microns (nominal)

Installation Tips:
  • Feed-water connection to system should be COLD only.
  • Do not exceed system specifications for temperature and pressure.
  • Allow 3” clearance below system for filter housing removal and cartridge replacement.
  • Detailed installation, operation and maintenance manual included with each system.
  • No activation procedure or flushing required for system to perform as specified.
