CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 120VAC

Home / Plumbing / Valves / CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 120VAC

CFA

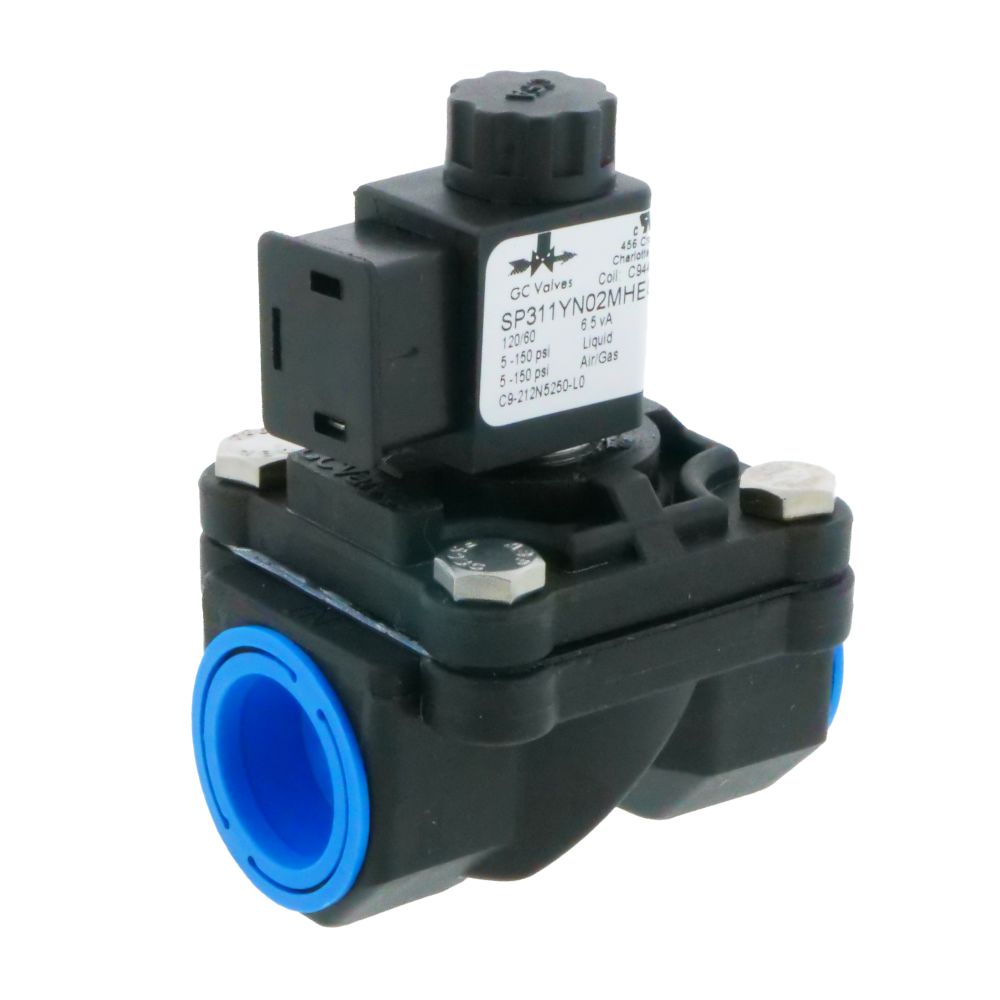

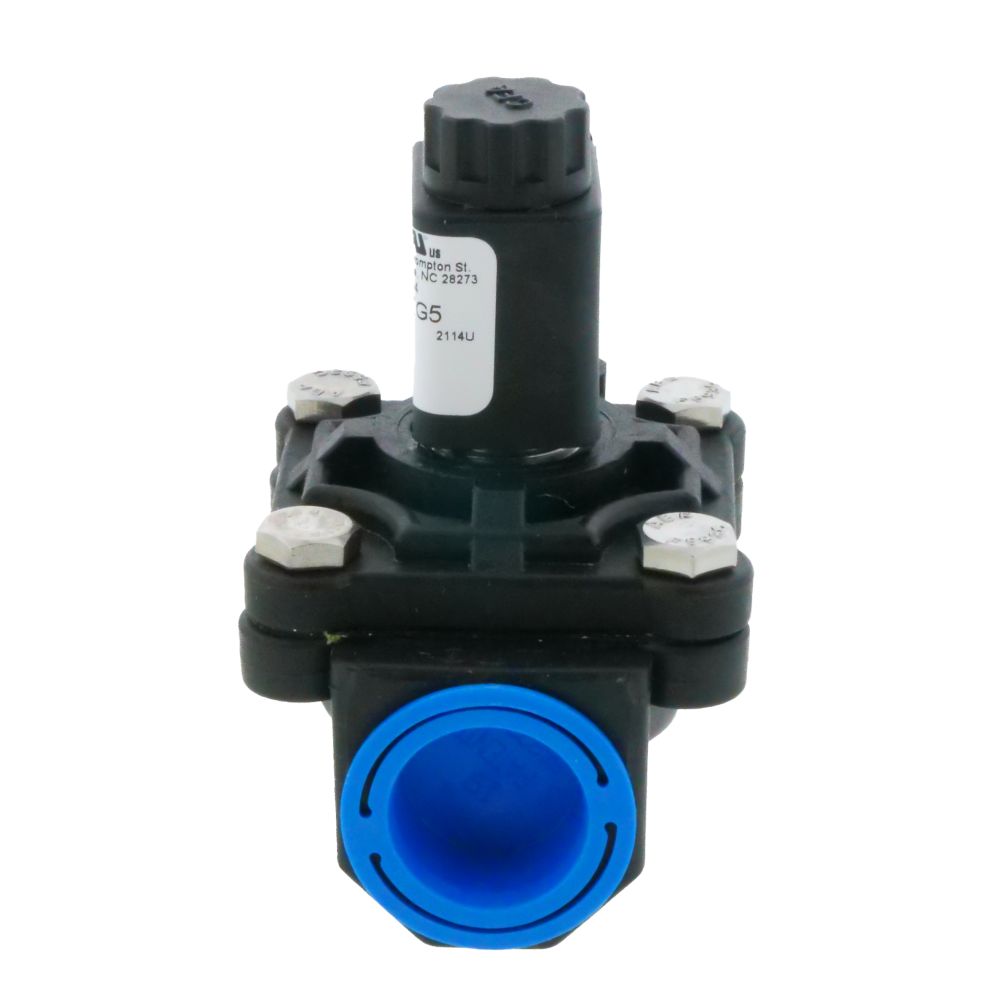

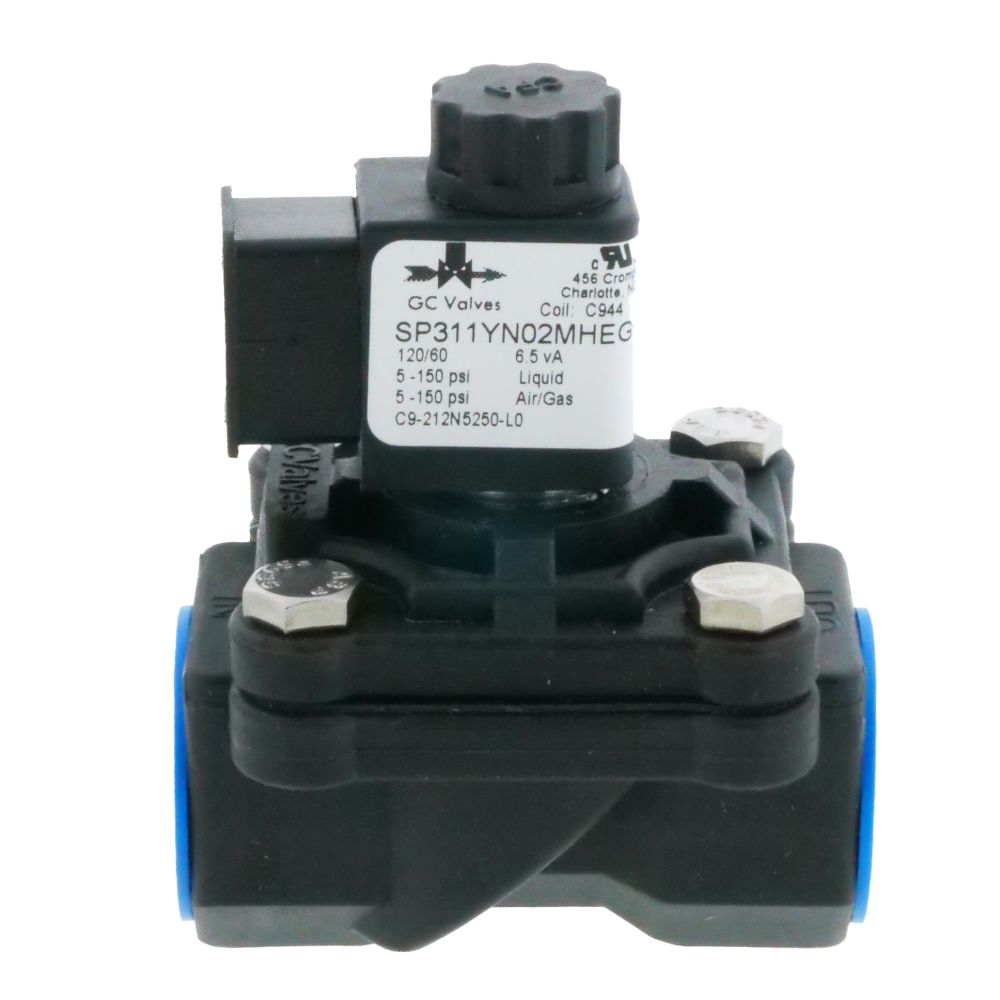

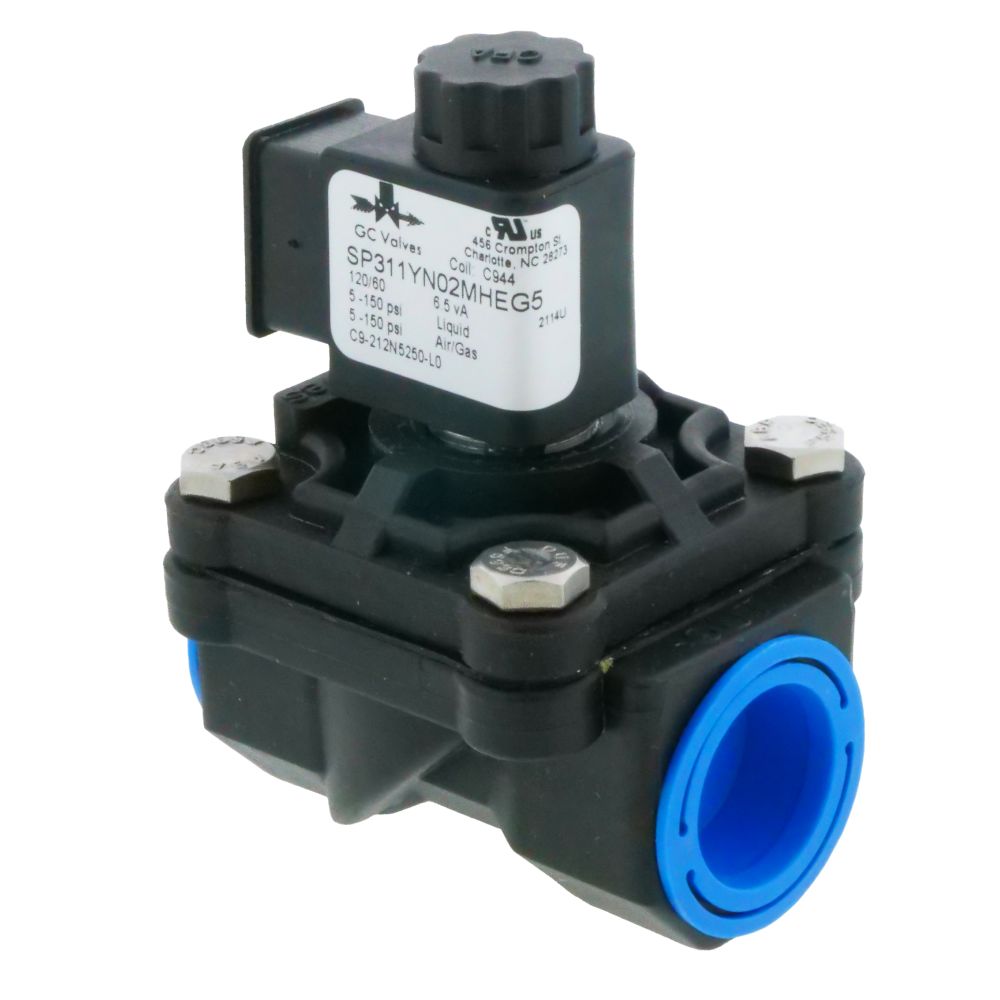

CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 120VAC

Part Number: C9-212N5250-L0-120VAC

Alt. Part Number: 3108N-662CN-B20953A-1249, 953A-308, SP311YN02MHEG5, 05EZ009A1-1GHA, C92003420F1A

similar items

The CFA C9-212N5250-L0-120VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm material is made Buna-N, and the seals are viton.

Specifications:

Connection Size: 3/4" FPT
Power Connection: Din Connector
Voltage: 120v AC
Body: Nylon
Diaphragm Material: Buna-N
Seal Material: Viton
Media: Liquid
Media Temperature: 41 - 122 °F
Response Time: 25 - 100mS
Operating Pressure: 5 - 150 PSI
Normally Closed

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	120
Min Pressure (Psi)	5
Wetted Materials	Glass Reinforced Nylon EPDM
Diameter	3/4"
Port Size	3/4" NPT"
Voltage	120 VAC
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1

Connection Size: 3/4" FPT
Power Connection: Din Connector
Voltage: 120v AC
Body: Nylon
Diaphragm Material: Buna-N
Seal Material: Viton
Media: Liquid
Media Temperature: 41 - 122 °F
Response Time: 25 - 100mS
Operating Pressure: 5 - 150 PSI
Normally Closed
