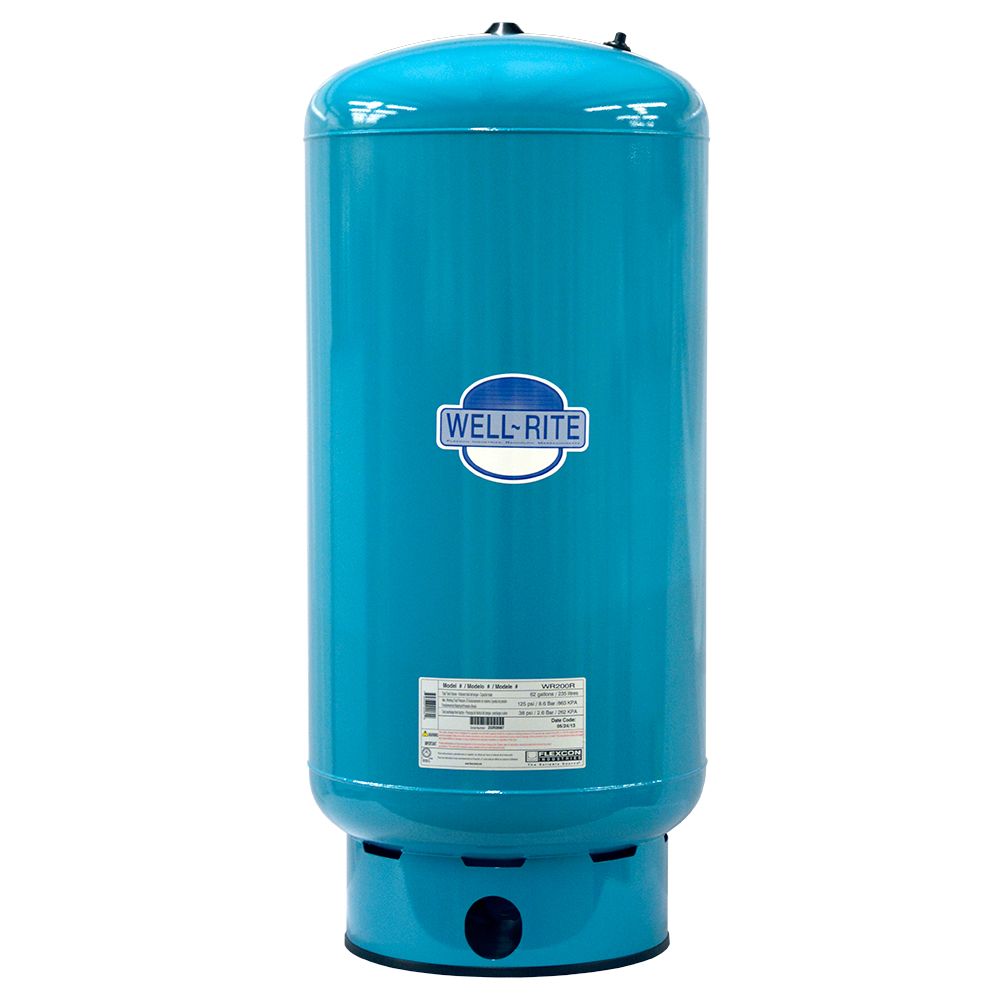

Well-Rite WR-240 Well Pressure Tank 81 Gallon Steel

WR-240 Flexcon IndustriesFWR-240
Mouse over to view larger image.
You might like:

Freight Only  NSF Certified  BPA Free  Made in USA

Part Number: WR-240
Alt. Part Number: FWR-240
Typically ships within 2 business days.
Price: $575.04
Qty:


Well-Rite WR-240 Well Pressure Tank Features:


The Well-Rite WR-240 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-140 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown 30/50 Setting: 27.6 gallons
  • 5 year warranty
  • NSF Standard 61 listed

Well-Rite WR-240 is compatible with the following tanks:

  • Well-X-Trol WX-255
  • Goulds V250
  • Flex2Pro H2P-80
  • Champion CH17255
  • A.O. Smith PM85
  • Flex2Pro WWT-80



The Well-Rite WR-240 81 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.

Well-Rite WR-240 Well Pressure Tank Features
Well-Rite WR-240 Well Pressure Tank Specifications
Well-Rite WR-240 Well Pressure Tank Installation Manual

Tank Specifications
Pressure Pump Tank, RO Water Storage
81 Gallons
38 psi
1-1/4" FNPT Stainless Steel
Bottom
Top
32.6 Gallons
27.6 Gallons
23.9 Gallons
Dimensions
62 "
21 "
99 lbs
Operating Conditions
140 °F
125 psi
Drawn Steel w/ Epoxy Finish
Butyl Rubber
USA
Certifications
NSF Certified to Standard 61
Warranty
5 years
