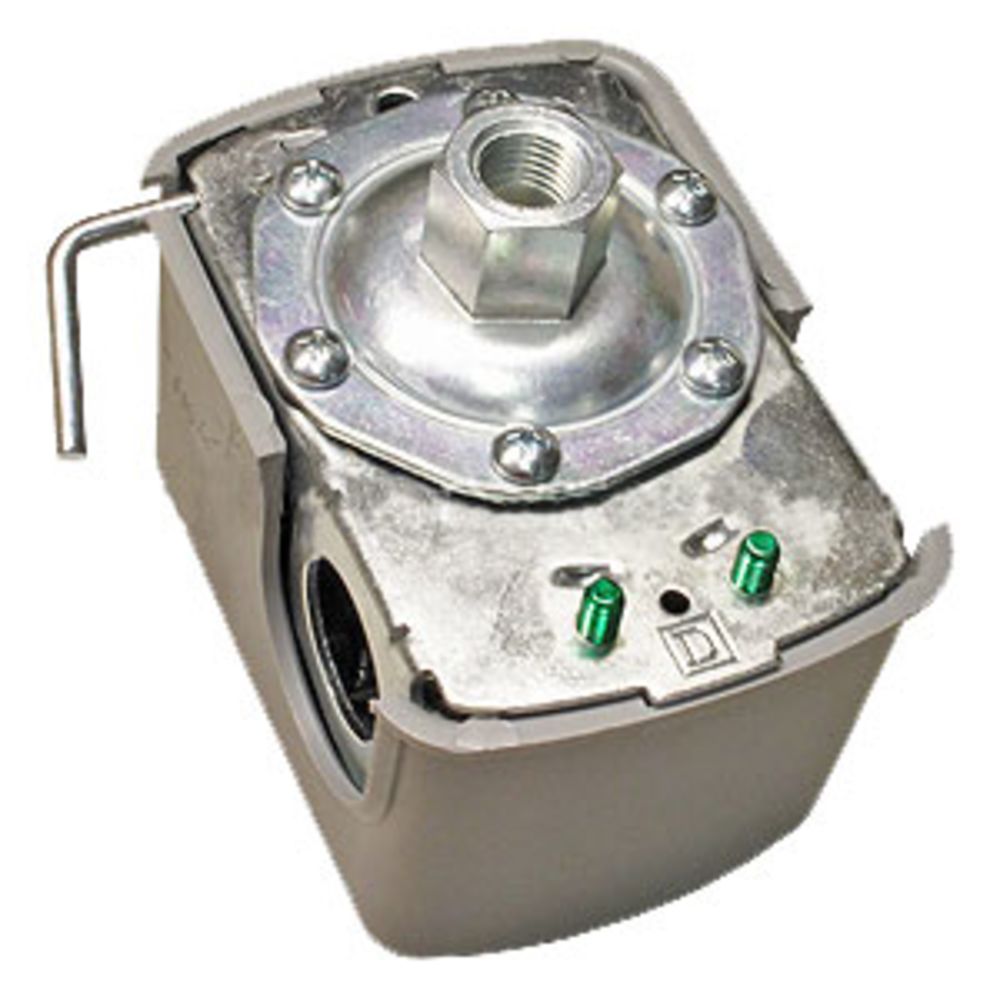

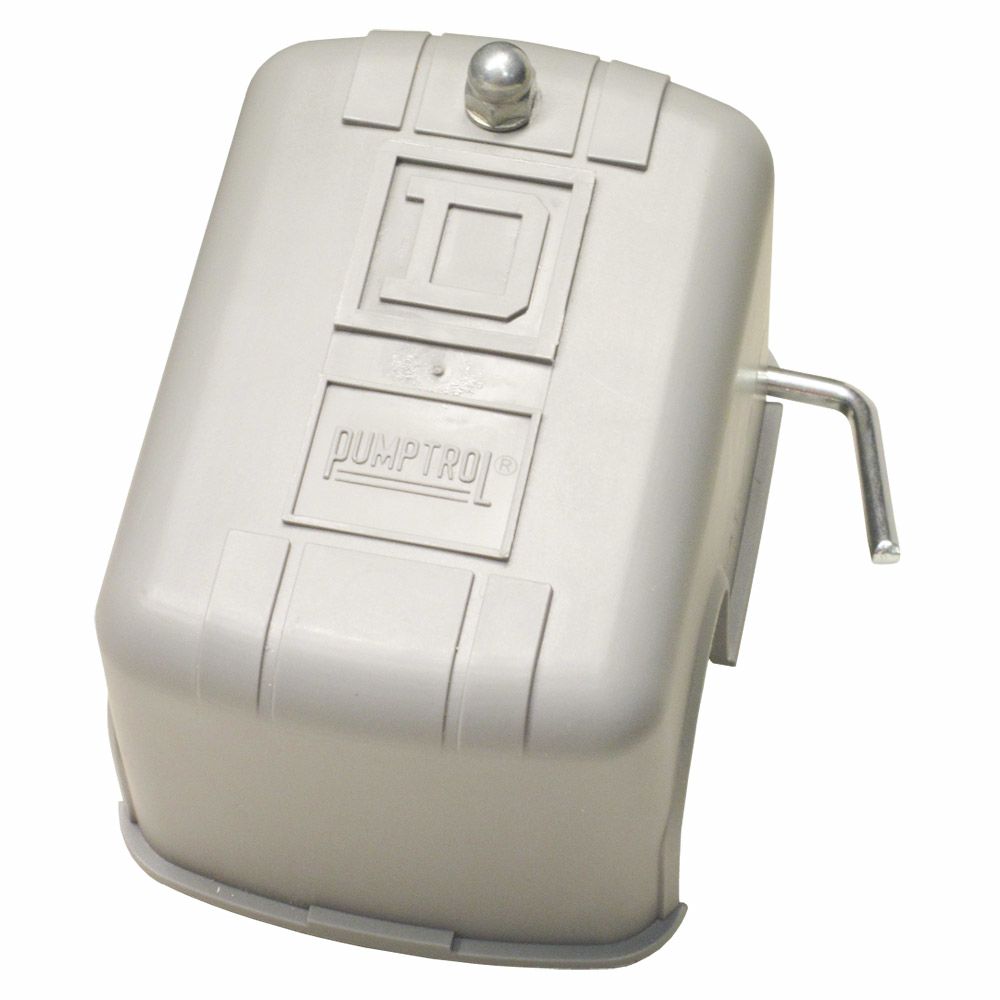

Square D Pumptrol Well Tank Pressure Switch With Low Pressure Cut-Off

9013FSG2J21M4 Square DFSG-2 M4Show Picture 1Show Picture 2
Mouse over to view larger image.

Part Number: 9013FSG2J21M4
Alt. Part Number: FSG-2 M4, 9013FSG2M4, 2FH06
In Stock, Ready to Ship!
MSRP: $36.00
Price: $29.99
Qty:


Square D Pumptrol 9013FSG2J21M4 Well Tank Pressure Switch With Low Pressure Cut-Off Features:


Square D Pumptrol 9013FSG2J21M4 well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

  • Factory Set Cut-In Pressure: 30 psi
  • Factory Set Cut-Out Pressure: 50 psi
  • Pressure Connection: 1/4" FNPT
  • Low Pressure Cut-Off turns pump off at approximately 10 psi below cut-in
  • Maximum Voltage Rating: 575VAC
  • Amps: 10A
  • Maximum Allowable Pressure: 220 psig
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • UL Listed and CSA Certified

Square D Pumptrol Well Tank Pressure Switch With Low Pressure Cut-Off Specifications

Construction
DPST
NEMA 1
Zinc Plated Steel
Nitrile (Buna N)
General Purpose (Indoor)
1/4" FNPT
Screw Clamp
F
Mexico
Dimensions
2.78 "
2.80 "
3.76 "
1.13 lbs
Operating Specs
20 - 65 psig
15 - 30 psig
Adjustable
575 VAC
1 HP @ 460/575 VAC, 3 HP @ 230 VAC
1.5 HP @ 115 VAC, 2 HP @ 230 VAC
220 psig
2-Pole
30/50 psi
10 - 45 psig
10
Certifications
CSA Certified, UL Listed
Mouse over for more information.
