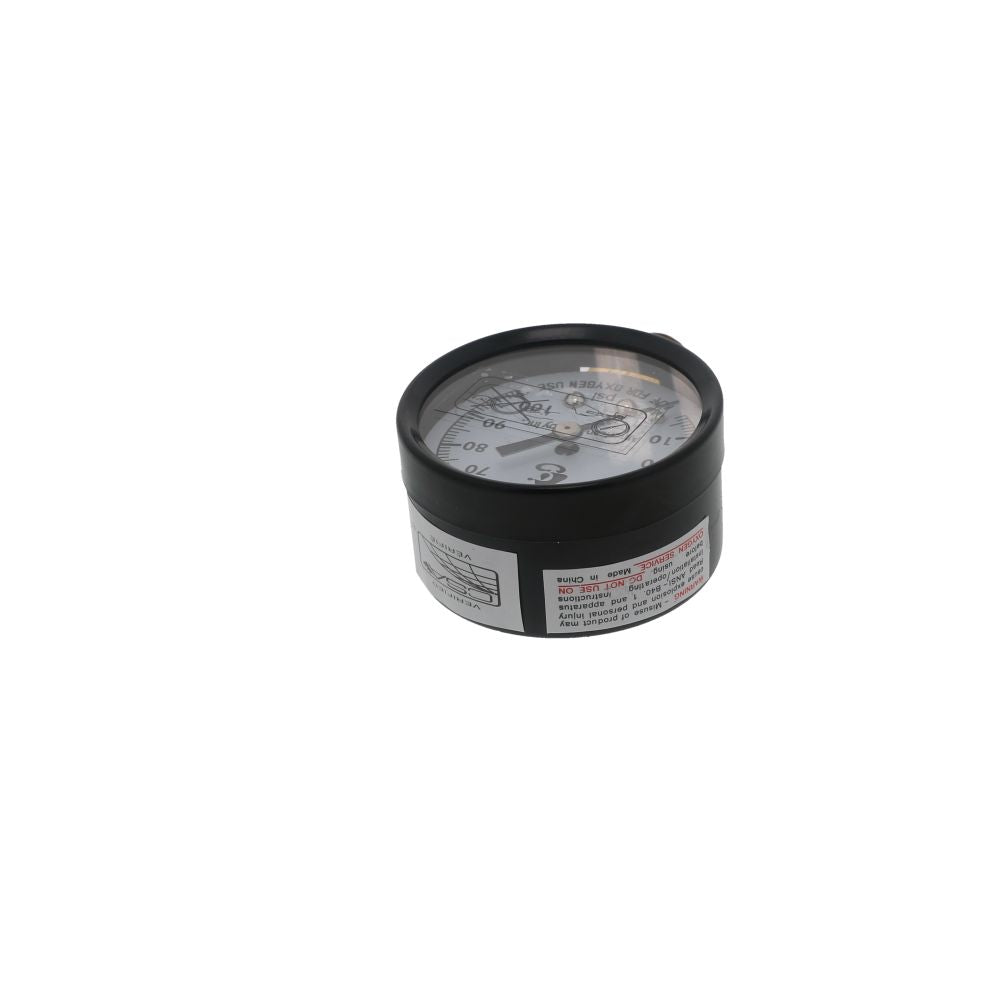

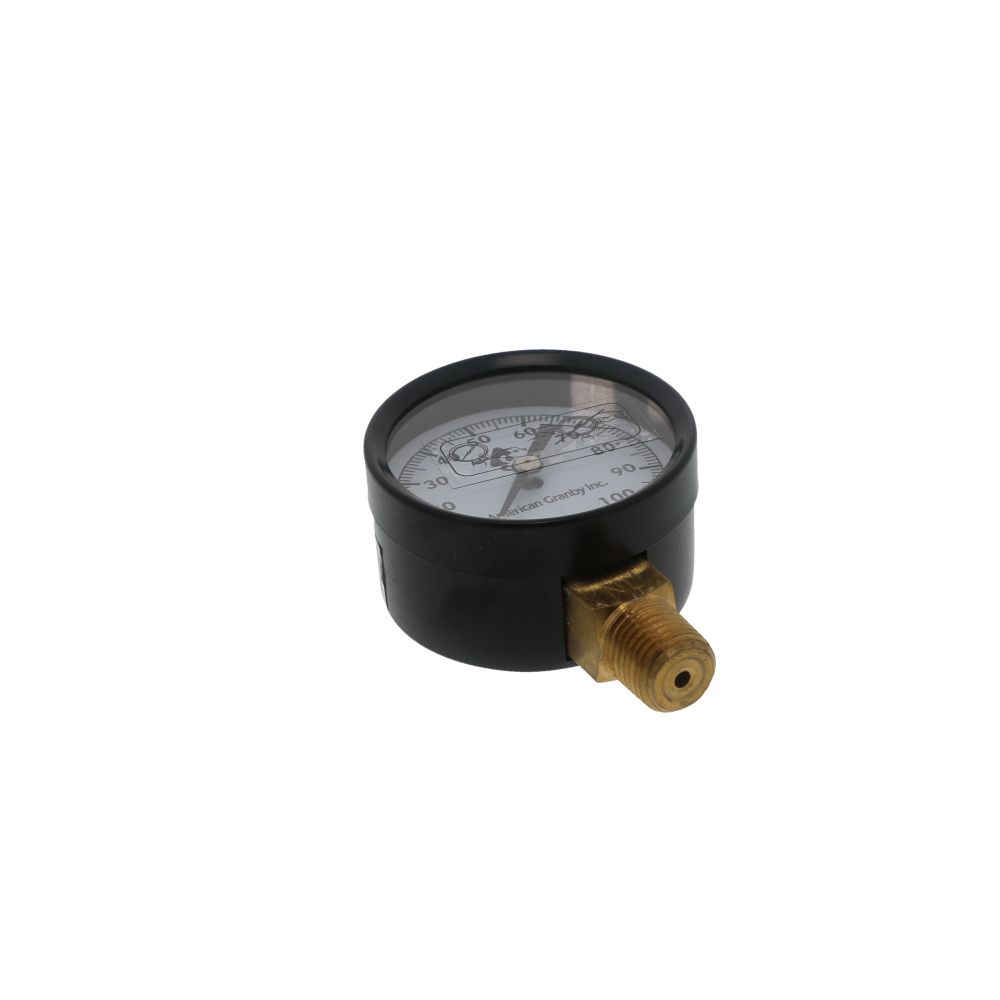

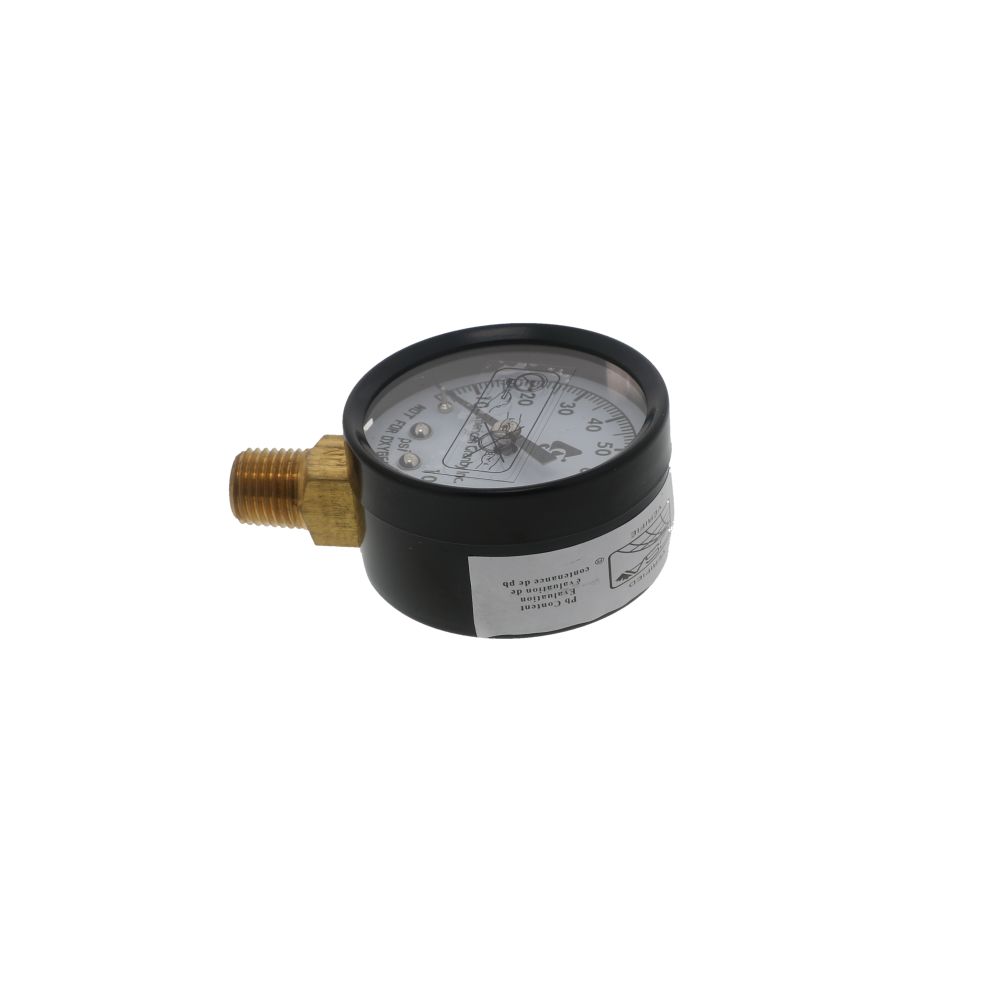

Water Pressure Gauge 100 PSI, 1/4" MPT, 2.0" Glass Dial, Lead Free Bra

This Lead Free Water Pressure Gauge 0-100 PSI is designed to be used with air or water. It's precision made phosphor-bronze Bourdon tube movements are rugged enough to assure maximum accuracy even under adverse field conditions.

Specifications:

2" Dial 0 to 100 psi Scale
Black Steel Case
Mar-resistant Glass Lens
1/4" NPT connection
Use with air or water only

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Accuracy	B (3-2-3%)
Application	Water Air
Dial Size	2" (50 mm)
Face	White Aluminum with Black Print
Fluid	None - Dry
Housing Material	Black Steel
Material Of Construction	Brass
Max Pressure (Psi)	100
Max Temp (°F)	160
Min Pressure (Psi)	0
Min Temp (°F)	-50
Pointer	Aluminum - Black
Units Of Measure (Psi, Bars, Hgvac)	PSI/Bars
Accuracy Grade	B Grade: 3-2-3%
Case Filling	Dry
Case Type	Black Painted Steel
Connection Type	1/4" MPT
Gauge Bezel	Chrome Plated Steel
Gauge Lens	Glass
Mounting Style	Lower Mount
Pressure Rating	100 PSI
Type	Lower Mount
Wetted Parts	Lead Free Brass
Shipping Dimensions
Shipping Length	2 in.
Shipping Width	1.5 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Weight (lbs)	0.4

Water Pressure Gauge 100 PSI, 1/4" MPT, 2.0" Glass Dial, Lead Free Brass, Lower Mount, Black Steel Case

Water Pressure Gauge 100 PSI, 1/4" MPT, 2.0" Glass Dial, Lead Free Brass, Lower Mount, Black Steel Case
