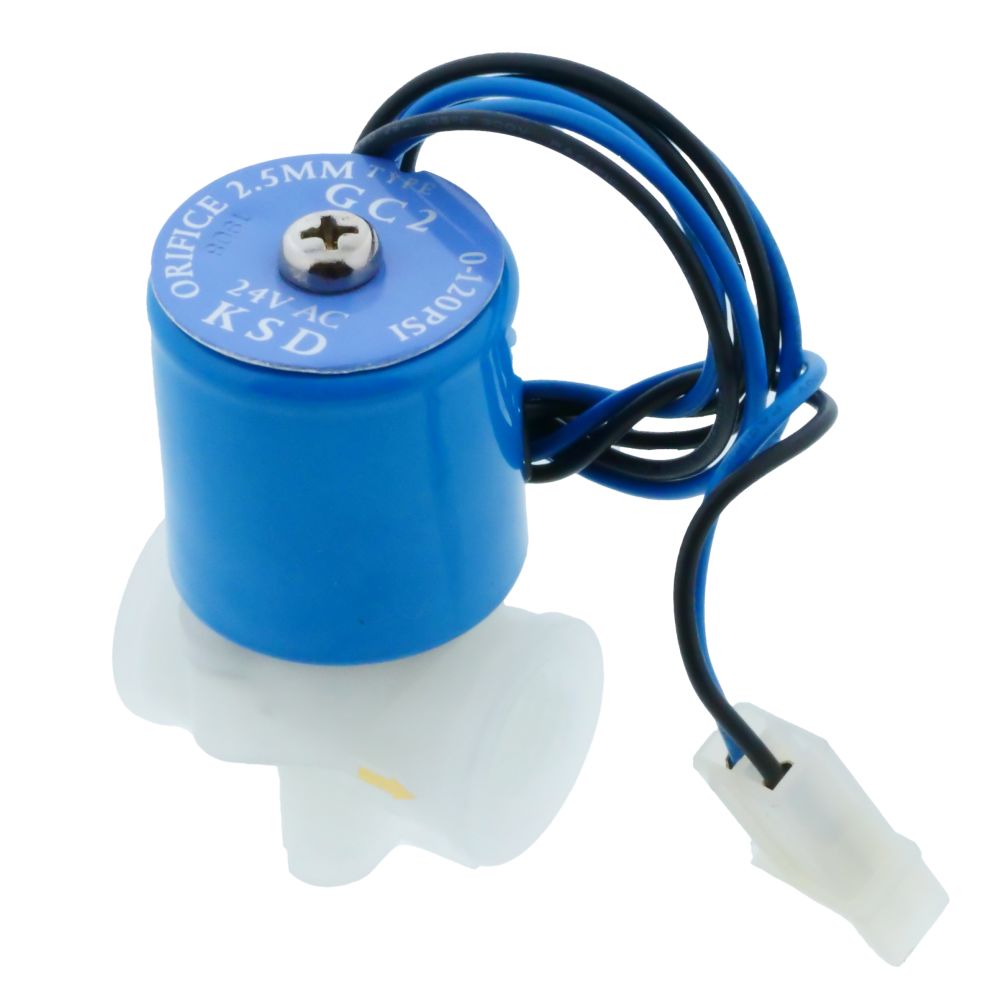

Electronic Shut-off Solenoid Valve with QC fittings 24VAC

Part Number: SV-2-24V
Alt. Part Number: 622-1004N-1IAJG, 1102X-062CE-B205AN

Options

1/4" FPT

SV-2-24V

$24.60

1/4" QC

SV-2-24V-14

$24.60

3/8" QC

SV-2-24V-38

$24.60

Details
Specs
Reviews
Related Items

SV-2-24V Electronic Shut-off Solenoid Valve with QC fittings:

Feed water control valve is used in combination with the tank and the pump pressure switch to automatically close OFF the feed water source when the RO tank is full.

Conserves water
Positive shut-off
Compact design
Plastic valve body
Low power
Cool running
Hermetically protected electronics for long life

COMPRABLE TO: Shurflo 94-091-00

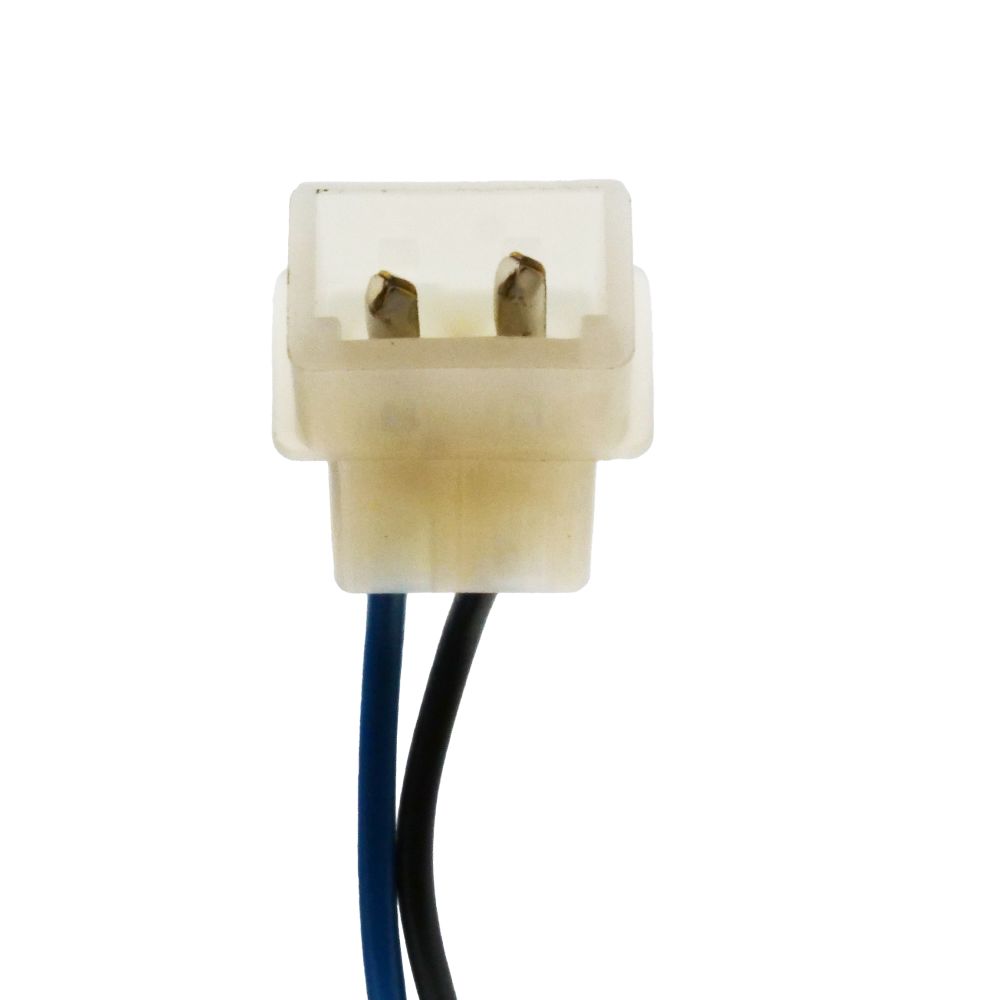

NOTE: A wire harness is required with a one plug power source

Specifications

Port Size

1/4 "

Normally Open or Normally Closed

Closed

Voltage

24 - 50/60

Temperature Range

max. 180°F (+82°C)

Eclosure/Terminations

1/2 FPT "

Leads

24 "

Operating Pressure Differential

AC - 150 PSI / 10.34 Bar

Certifications

Orifice Size

3/32 "

Mouse over for more information.
