10" Slimline Sediment Prefilter Kit - 1/2"

Sediment Prefilter Kit for UV Water Treatment System

Part Number: FK-10SL12-SD05

Price: $42.88

Qty:

Details
Specs
Reviews
Related

10" Slimline Sediment Prefilter Kit - 1/2":

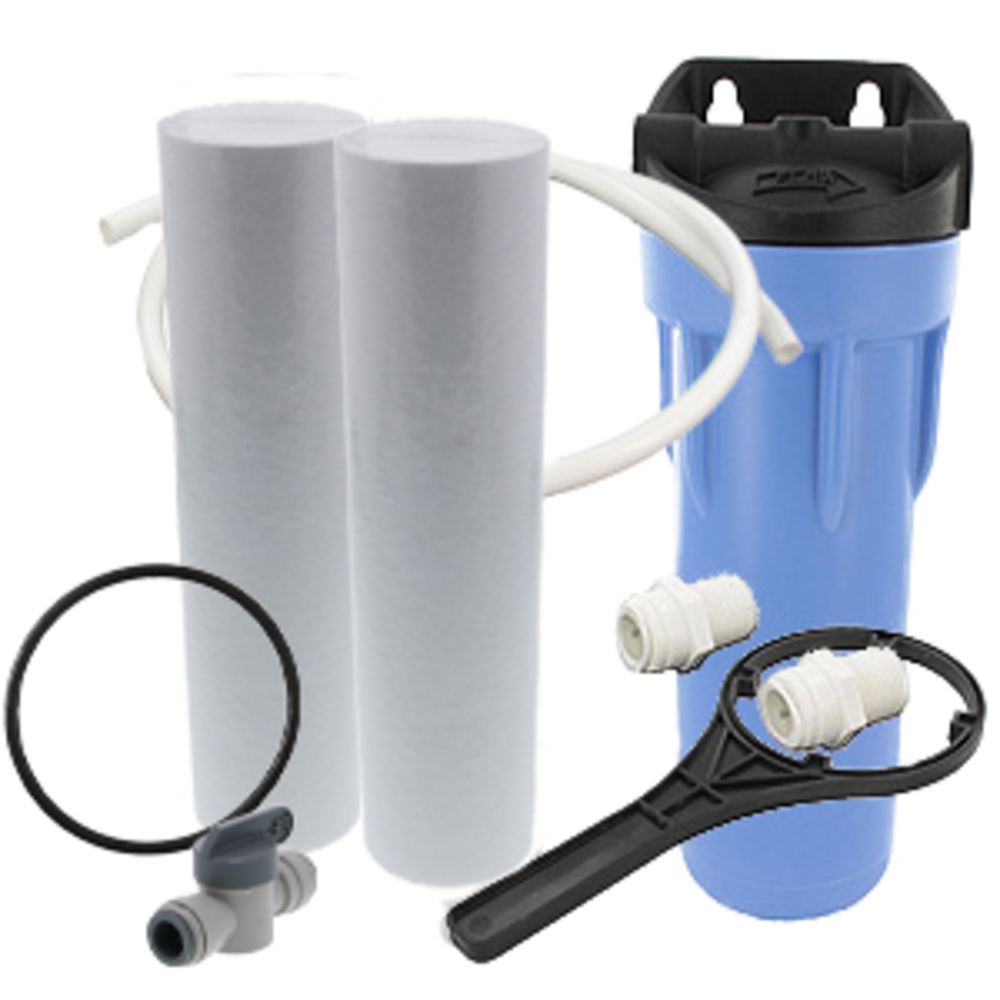

Sediment Pre-filter kit for Ultraviolet (UV) Disinfection Water Systems Includes:

10" Slimline Filter Housing 1/2" Inlet/Outlet
Integrated Bracket with Pressure Relief
Filter Wrench for Slimline Housings
Extra O-ring for Slimline Housings
Two Dual Gradient Polypropylene 5 micron filters
Two 1/2" OD x 1/2" NPT Male Connectors
1/2" OD Ball Valve
1/2" OD Tubing 4 ft. Section

The Slimline Sediment Prefilter Kit, for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates up to 2.5 gpm using our dual gradient polypropylene filters at 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.

Standard Set-up Diagram

Optional Bypass Set-up Diagram

General

Applications

Sediment Prefiltration

Contaminants Reduced

Sediment, Turbidity (cloudiness)

Rating (Nominal)

5 µm

Flow Rate

2.5 gpm

Connection Type

1/2" NPT

Media Type

Dual Gradient Polypropylene

Housing Materials

Polypropylene

Fittings Materials

Acetal

Dimensions

Height

13-3/8" "

Width

5-3/8" "

Operating Conditions

Operating Pressure

100 psi

Operating Temperature

100 °F

Certifications

Mouse over for more information.
