20" Heavy Duty Sediment Prefilter Kit - 1.5"

Sediment Prefilter Kit for UV Water Treatment System

Sediment Prefilter Kit for Ultraviolet Disinfection Systems

Part Number: FK-20BB15-SD05

Price: $96.05

Qty:

Details
Specs
Reviews
Related

20" Heavy Duty Sediment Prefilter Kit - 1.5":

Sediment Pre-filter kit for Ultraviolet (UV) Disinfection Water Systems Includes:

20" Heavy Duty Filter Housing 1.5" Inlet/Outlet
White Powder Coated Steel Mounting Bracket w/lag bolts
Filter Wrench for Heavy Duty Housings
Extra O-ring for Heavy Duty Housings

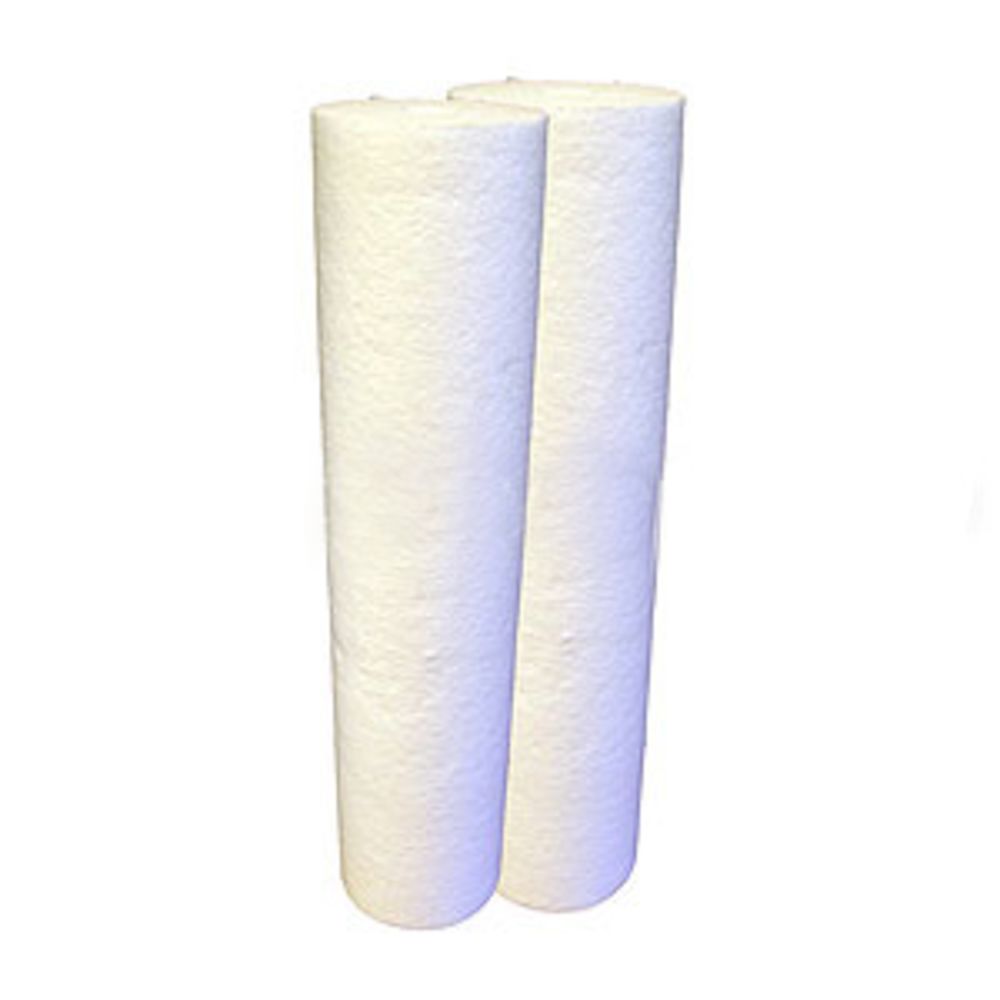

Two Dual Gradient Polypropylene 5 micron filters

Note: Fittings and Inline Ball Valve are not available in 1-1/2" configuration. All systems should be plumbed in with a bypass.

The Heavy Duty Sediment Prefilter Kit, for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates up to 20 gpm using our dual gradient polypropylene filter that starts at 50 microns, down to 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.

Standard Set-up Diagram

Optional Bypass Set-up Diagram

General

Applications

Sediment Prefiltration

Contaminants Reduced

Sediment, Turbidity (cloudiness)

Rating (Nominal)

5 µm

Flow Rate

20 gpm

Connection Type

1-1/2" NPT

Media Type

Dual Gradient Polypropylene

Housing Materials

Polypropylene

Fittings Materials

Polysulfone

Dimensions

Height

23-7/8" "

Width

7-1/4" "

Operating Conditions

Operating Pressure

100 psi

Operating Temperature

100 °F

Certifications
