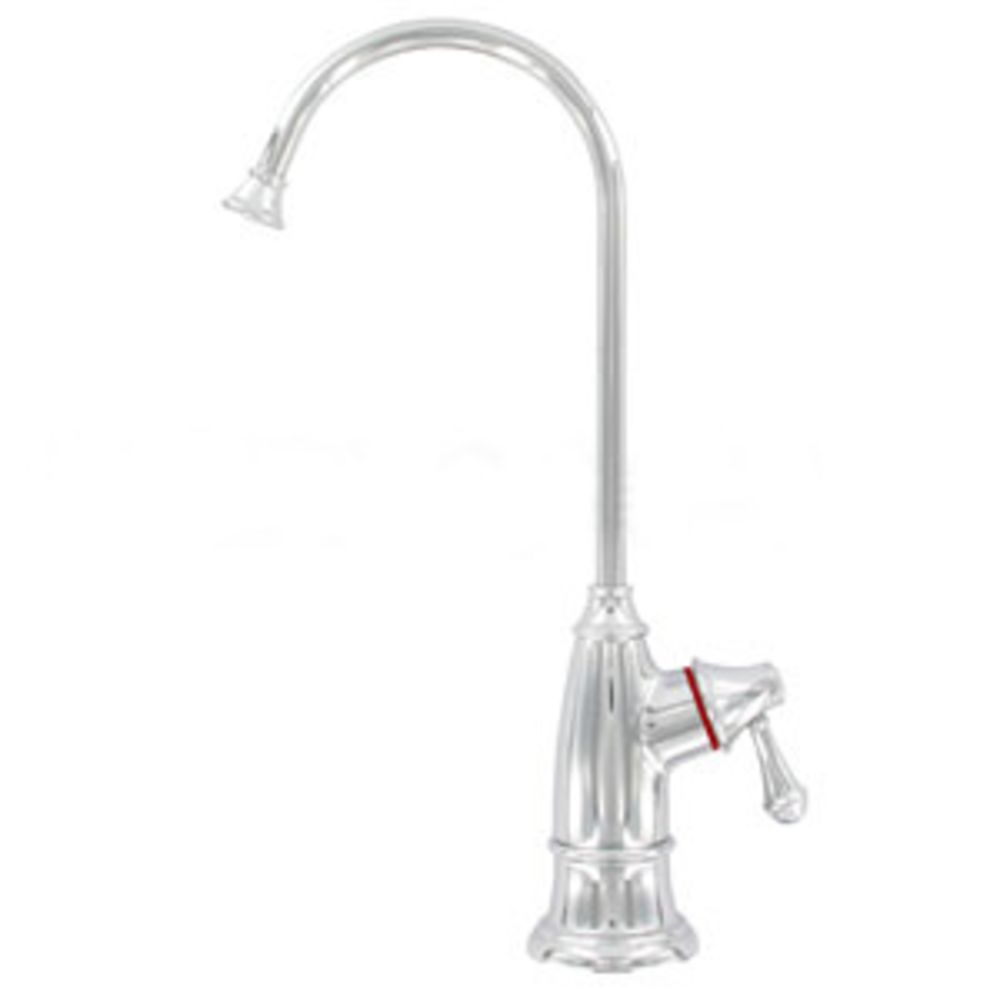

Tomlinson Designer Hot Only Drinking Water Faucet

Finishes

Chrome

1022304

$105.99

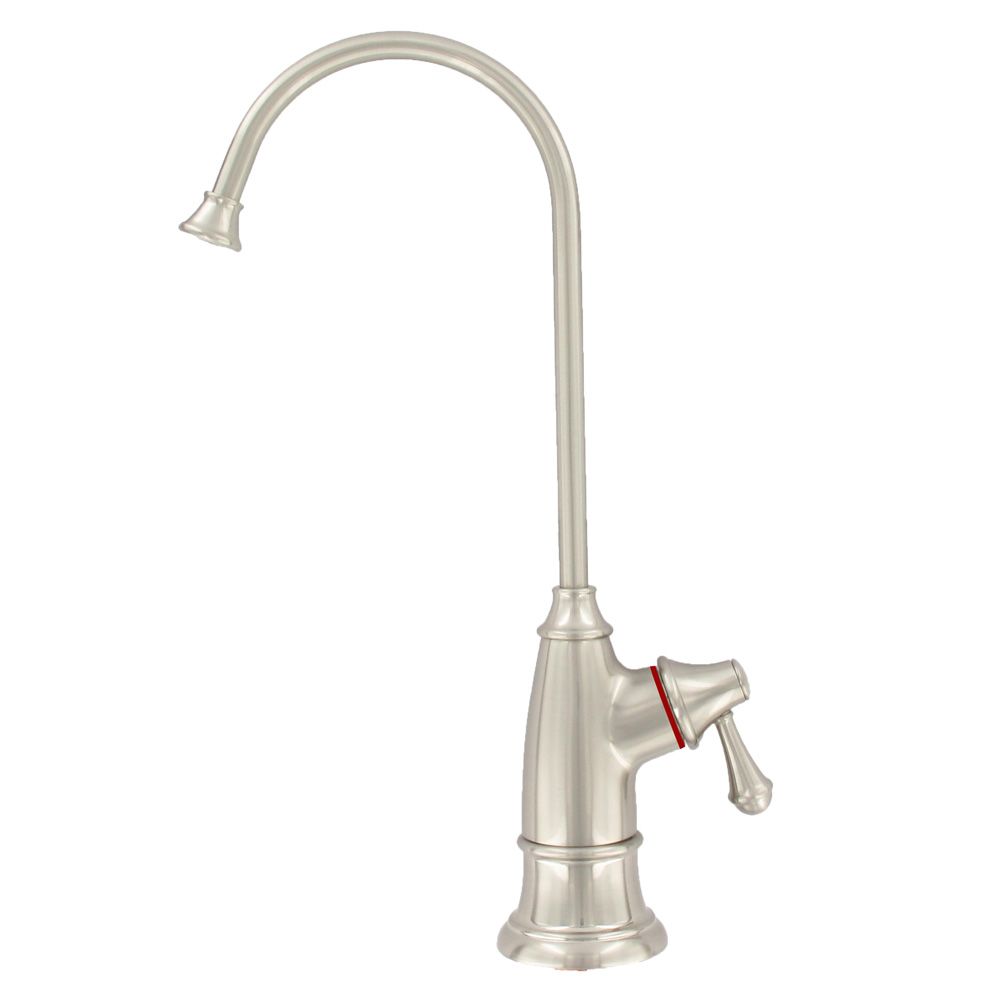

Satin Nickel

1022318

$115.99

Brushed Stainless

1022324

$115.99

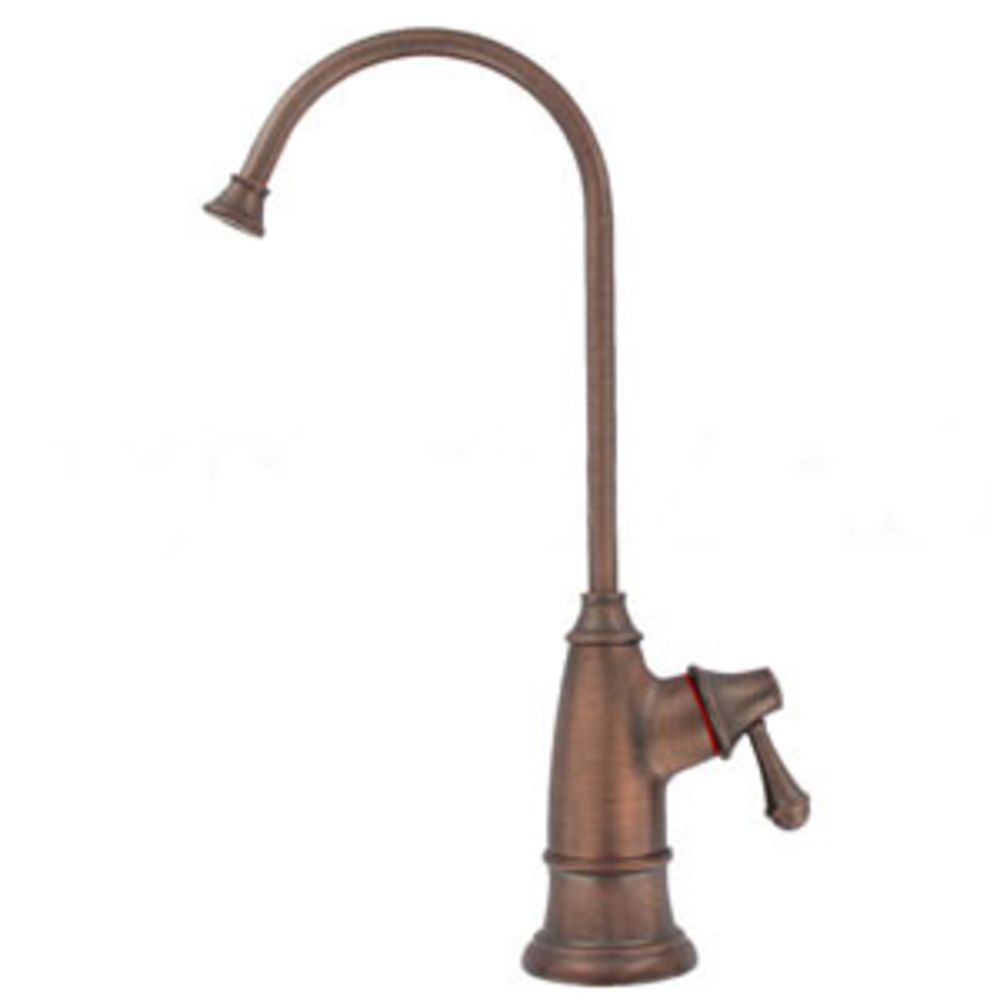

Antique Bronze

1022319

$115.99

Details
Specs
Reviews
Related Items

Tomlinson Designer Hot Only Drinking Water Faucet Features:

Hot handle is self-closing for added safety
Lever style handles
Protective spout tip design prevents after-drip
Internal ceramic disk provides smooth operation
12" reach neck
Neck swivels 360º
Includes all mounting hardware
Preinstalled tubing for quick connections
NSF listed to ANSI/NSF Standard 61
Two year warranty

Note: The Tomlinson Designer Hot Only Drinking Water Faucet is not compatible with Insinkerator products.

Tomlinson Designer Hot Only Faucet is compatible with the following hot water dispensers:

Waste King (Anaheim Mfg.)
Everpure Everhot EV931840
HT200 Franke Little Butler Heating Tank
Everpure Commercial Grade Instant Hot CGHE1
Little Gourmet
KitchenAid (Whirlpool)
Mountain Plumbing MT641
Quick & Hot AH-780-UL
Waterstone #5000 Hot Tank
Solaria Instant Hot Water Dispenser EV9318-40

General

Faucet Type

Drinking Water

Air Gap

Non Air Gap

Handle Type

Spring Loaded Hot Handle

Finish

Antique Bronze, Brushed Stainless, Chrome, Satin Nickel

Valve Type

Ceramic Disk

Connection Type

1/4" Tubing

Warranty

2 years

Origin

Taiwan

Dimensions

Height

12 "

Reach

5 "

Base

2.25 "

Maximum Counter Thickness

4.5 "

Hole Size

1 "

Material

Faucet Construction

Lead Free Brass

Supply Tubing

LLDPE Plastic

To Hot Tank Inlet

LLDPE Plastic

Certifications

AB1953 Compliant, California Prop. 65, NSF/ANSI 61

Operating Conditions

Operating Pressure

125 psi

Temperature Range

40 - 190 °F
