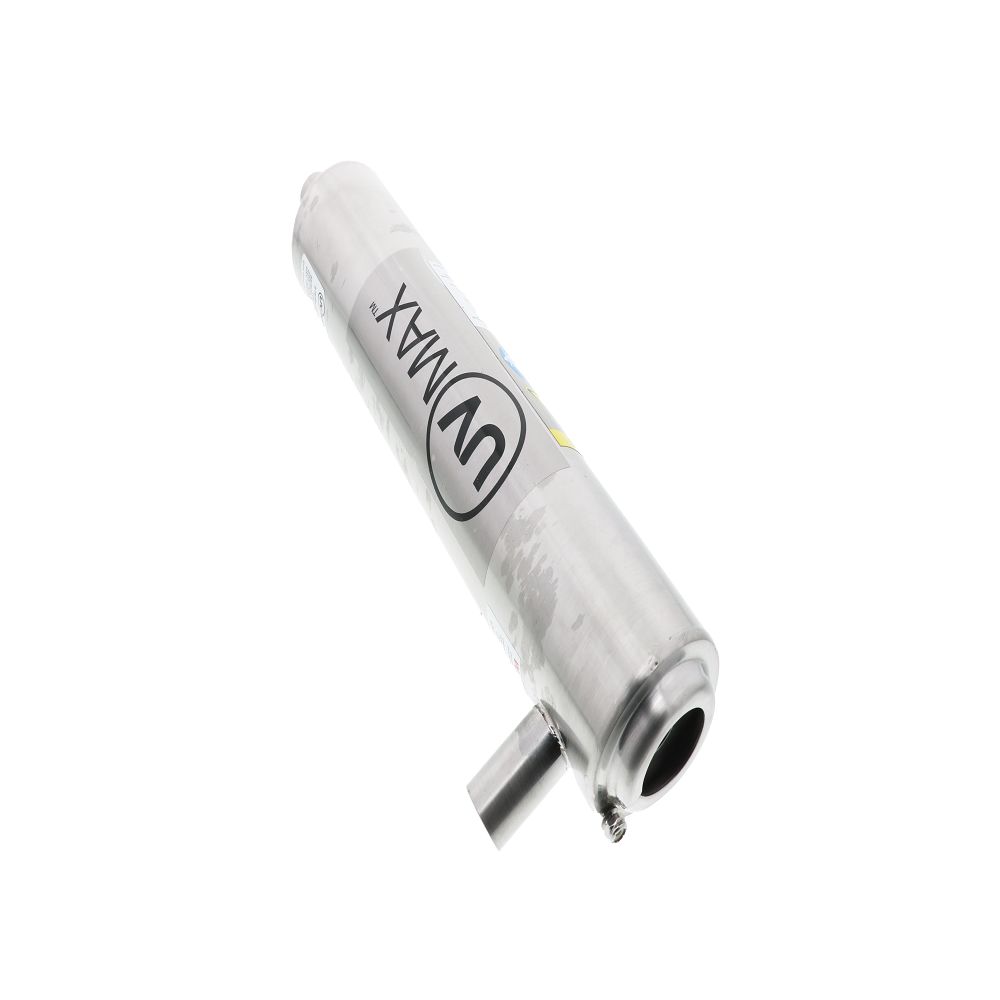

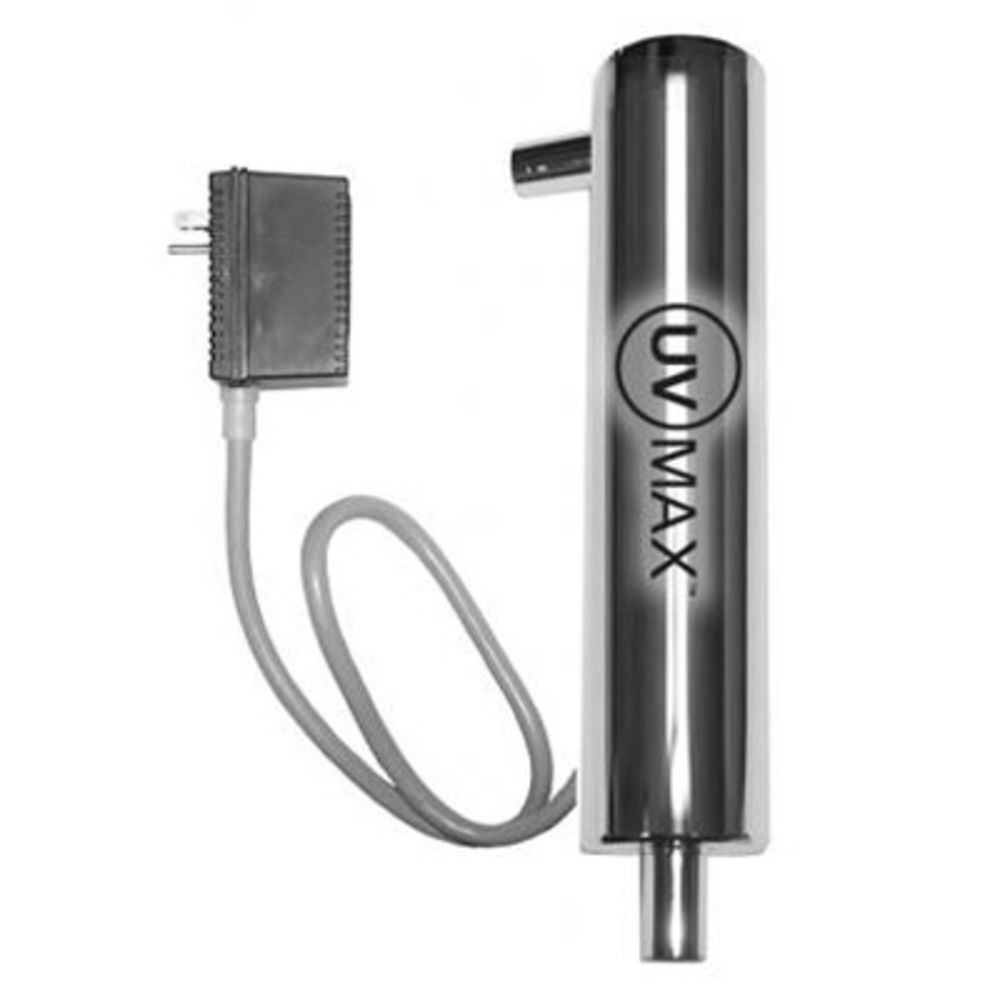

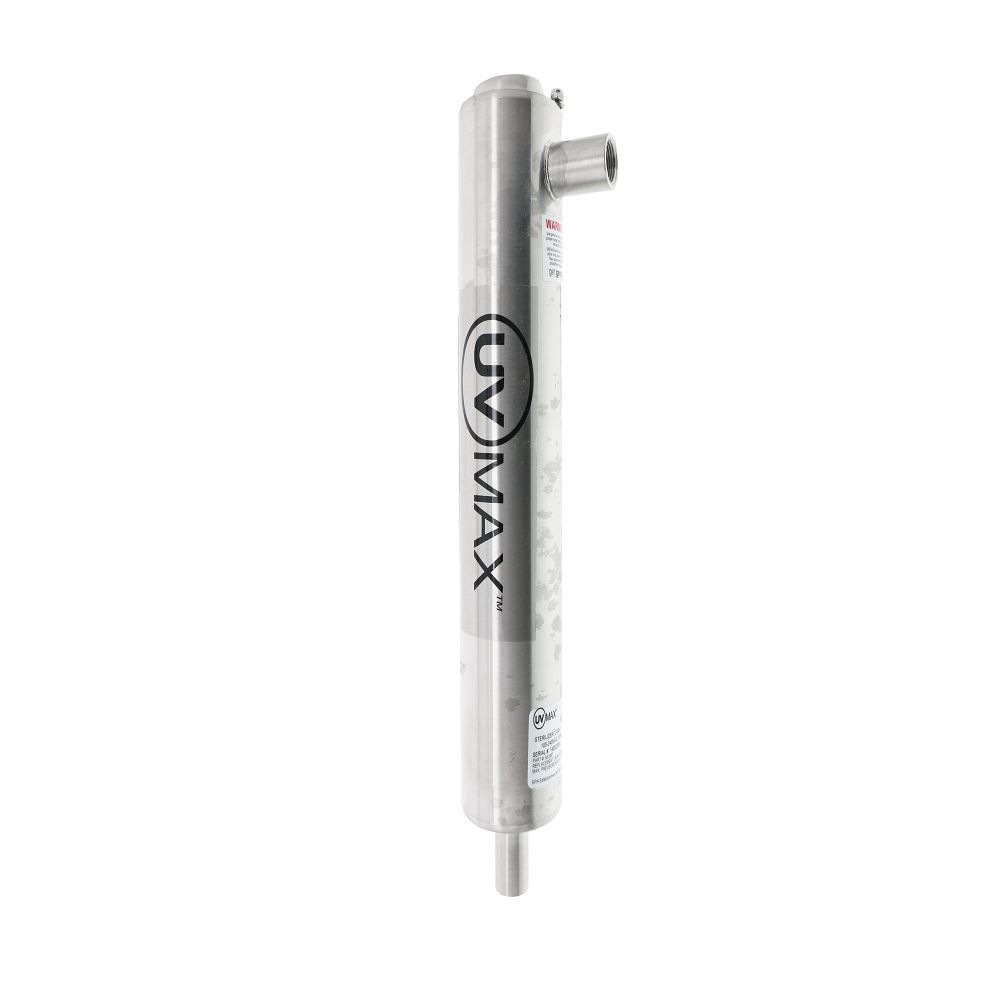

Trojan UVMax A, 1 gpm

Trojan UVMax A, 1 gpm Features:

Install a Trojan UV Max Model A disinfection water system and you no longer have to be concerned about contamination from harmful bacteria, virus, and microorganisms such as E.coli, Giardia and Cryptosporidium causing illness. Tojan UVMax Model A is a point-of-use ultraviolet disinfection water treatment system offers a 1 gpm water flow rate. The UV Max Model A compact design, simple installation, and low cost of operation is ideal for point of use applications. Drink confidently with Trojan's quality and reliability from its 1 gpm high-output ultraviolet water purification system the Trojan UV MAX Model A.

Stainless steel chamber with safety cap
Universal power input

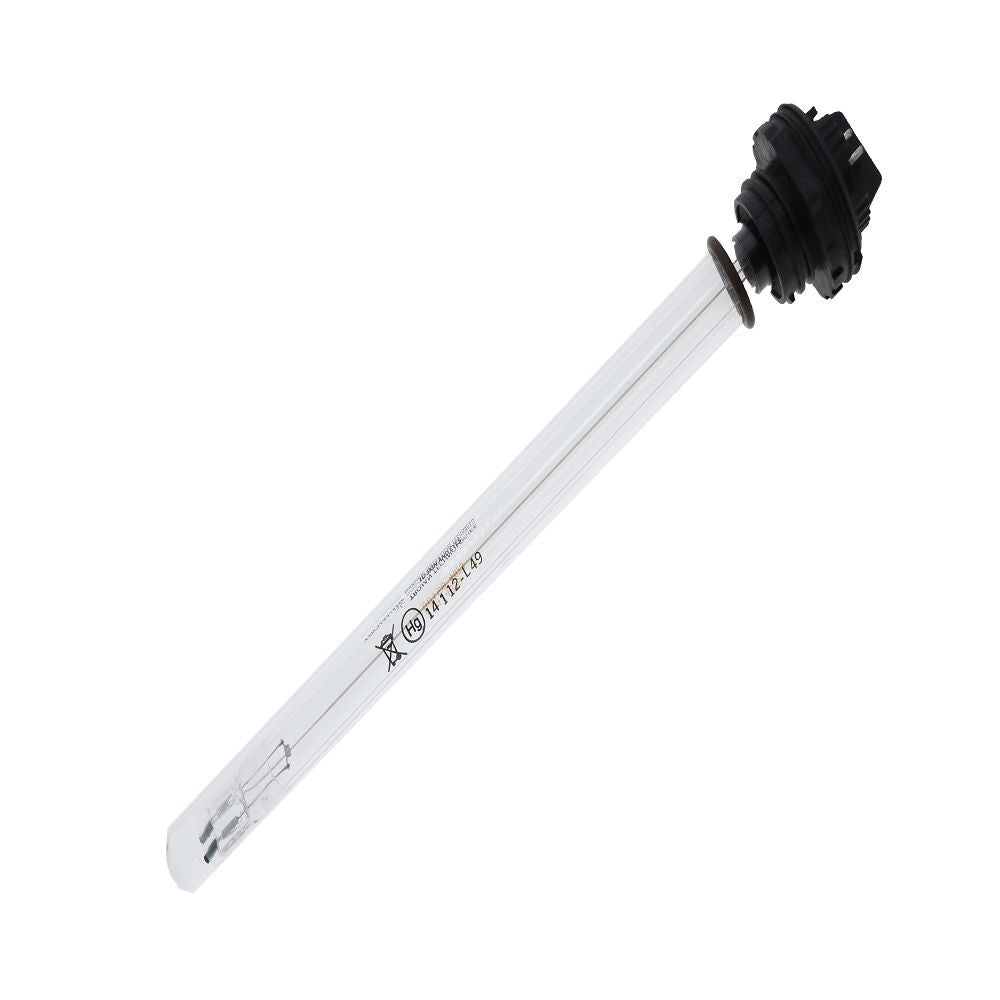

High-output UV lamp
Environmentally-friendly
Full 3 Year Warranty

Trojan UVMAX A Points of Interest (.pdf, 304KB)
Trojan UVMAX A Series Brochure (.pdf, 1.6MB)
Trojan UVMAX A Series Dimensions and Layout (.pdf, 292.KB)
Trojan UVMAX A Series Owner's Manual (.pdf, 2.4MB)

Operating Conditions

Flow Rate (30mJ/cm2 Dose)

1 gpm

Ambient Temperature

32-122 °F

Operating Pressure Range

125 max psi

Dimensions

Inlet/Outlet

3/8" FPT

Chamber Length

15.5 "

Chamber Diameter

2.5 "

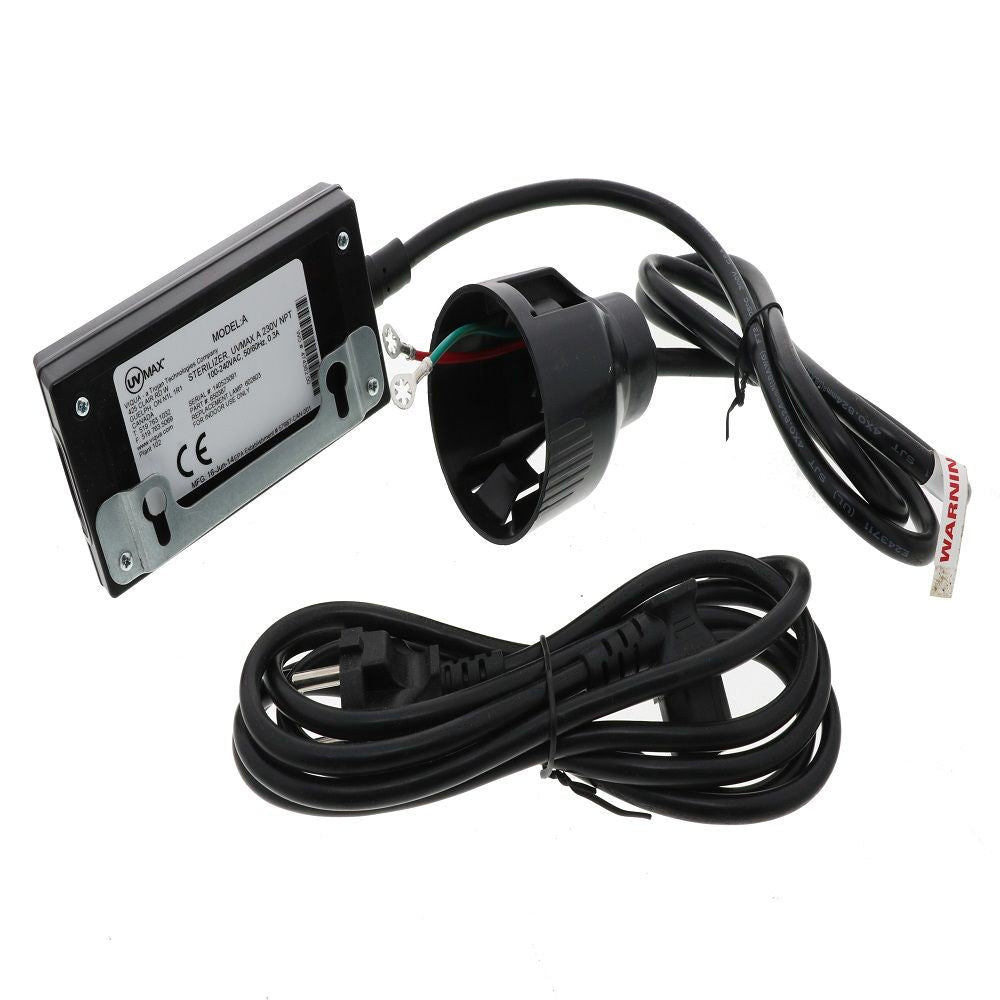

Power Supply Dimensions

2.8"x3.3"

Electrical

Voltage

120 V

Frequency

50-60 Hz

Power Consumption

22 W

General

Chamber Material

304 Stainless Steel Reactor

Certification

CE Standards

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors

Mouse over for more information.
