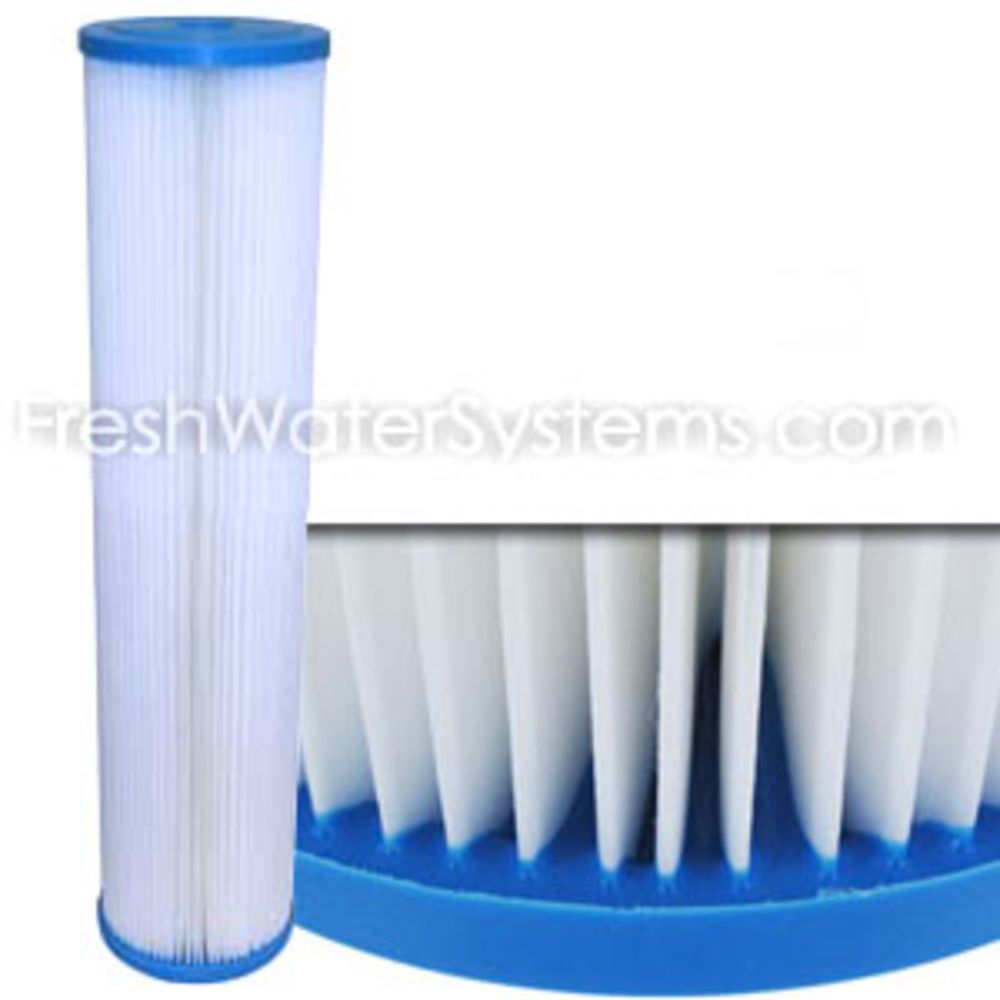

20" x 4-1/2" BB Liquatec SPF Pleated - 10 mic

Part Number: SPF-45-2010

MSRP: $34.60

Price: $20.55

Qty:

Details
Specs
Reviews
Related

The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity. The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.

Features:

Polyester media is chemical and bacteria resistant
Cleanable (reusable) on cartridges 5 microns and up
Pleated media has more surface area providing:
- Greater dirt holding capacity
- Lower pressure drop
- Extended filter life
Pleated media has a polypropylene core for added strength
Vinyl plastisol ends fuse components together into a unified end cap and gasket

Liquatec SPF Series Polyester Pleated Filters Specifications

Filter Specifications

Filter Application

Sediment/Dirt/Rust

Cartridge Style

Drop-In

Micron Rating (Nominal)

10 µm

Manufacturer

Liquatec

Dimensions

Length

20" (50.8 cm)

Outer Diameter

4.5" (11.4 cm)

Quantity per case

Operating Conditions

Flow Rate

20 gpm

Initial Pressure Drop

1 psid

Temperature Rating

40-125 °F

Filter Life

Capacity

30 psid

Change Frequency

As Needed

Materials of Construction

End Cap Material

Vinyl-Plastisol

Filter Media

Pleated Polyester

End Caps

DOE

Certifications
