Parker LIQUIfit Bulkhead Union - 1/2 x 1/2

Part Number: 6316-62-00WP2

1 4

Parker

Parker LIQUIfit Bulkhead Union - 1/2 x 1/2

Part Number: 6316-62-00WP2

MSRP: $16.92

$5.23

Quantity

Unit Price

Price

Savings

$5.23

—

$4.96

$248.38

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Features:

Engineered Hi-Performance Nylon
High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F
Suitable for potable liquids and food applications
Both ends unscrew
Gaskets (to create seal): YES

1/2" x1/2" Bulkhead Unions
John Guest	DM fit	Parker LIQUIfit
PI1216S	ABU0707	6316-62-00WP2

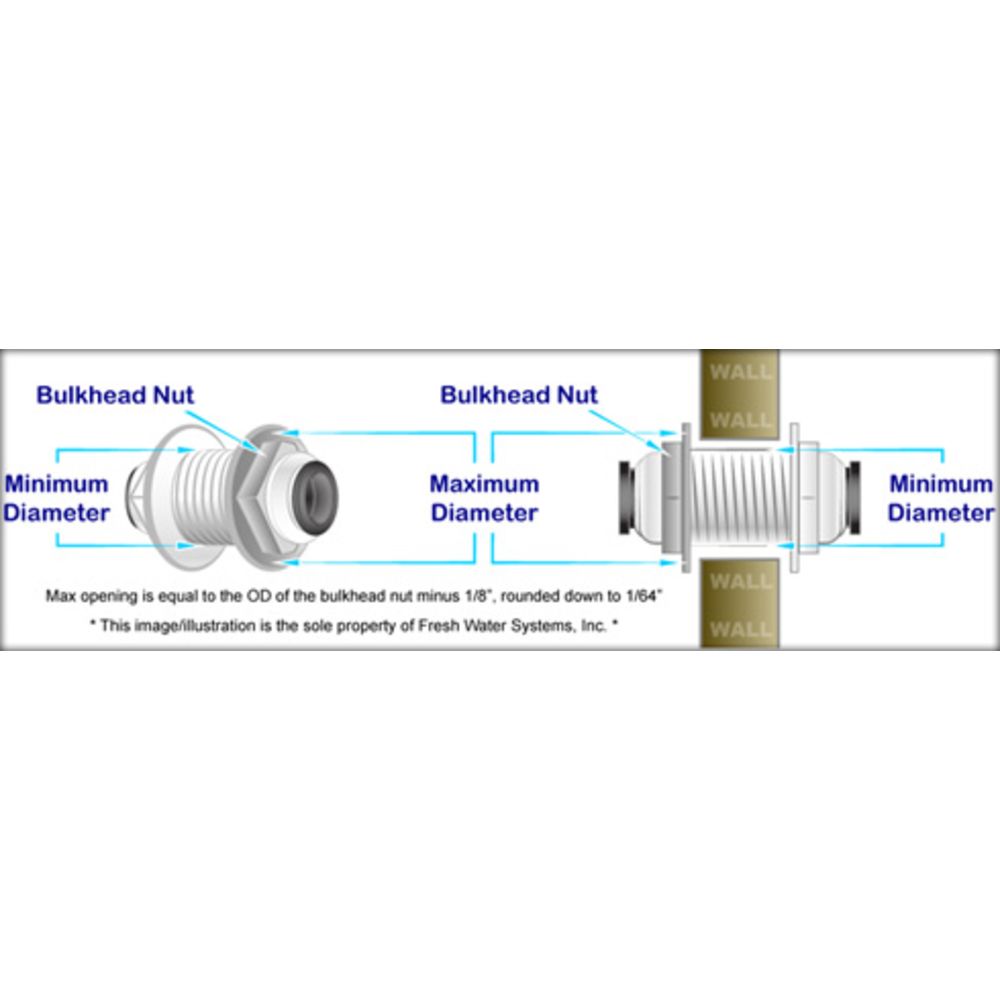

Min - Max Hole Size	Min - Max Hole Size	Min - Max Hole Size
1-1/64" to 1-13/64"	1-3/64" to 1-23/64"	1" to 1-7/32"

Specifications

Product Details
Fitting Connection Size

1/2" Tube OD
Push-In Size

1/2" OD
Seal / O-Ring Material

EPDM
Series

LIQUIFit
Shape

Straight
Shipping Dimensions
Shipping Length

2.25
6
Shipping Width

1.5
6
Shipping Height

1.5
4

Downloads

Parker LIQUIfit Bulkhead Union - 1/2 x 1/2 Manual
