Trojan UVMax B4, 4 gpm

Trojan UVMax B4, 4 gpm Features:

Install a Trojan UV Max B4 disinfection water system and you no longer have to be concerned about contamination from harmful bacteria, virus, and microorganisms such as E.coli, Giardia and Cryptosporidium causing illness. Tojan UVMax B4 is a point-of-use ultraviolet disinfection water treatment system offers a 4 gpm water flow rate. The UV Max B4 Plus compact design, simple installation, and low cost of operation is ideal for point of use applications. Drink confidently with Trojan's quality and reliability from its 4 gpm high-output ultraviolet water purification system the Trojan UV MAX B4.

Trojan UVMax controller with water-resistant case
Indicator lights show the status of each system component
Stainless steel chamber with safety cap and special lamp plug
Universal power input
High-output UV lamp
Environmentally-friendly
Full 3 Year Warranty

Trojan UVMAX B4 Points of Interest (.pdf, 304KB)
Trojan UVMAX B4 Series Brochure (.pdf, 1.6MB)
Trojan UVMAX B4 Series Dimensions and Layout (.pdf, 292.KB)
Trojan UVMAX B4 Series Owner's Manual (.pdf, 2.4MB)

Operating Conditions

Flow Rate (30mJ/cm2 Dose)

4 gpm

Ambient Temperature

32-122 °F

Operating Pressure Range

125 max psi

Dimensions

Inlet/Outlet

3/4" MPT

Chamber Length

14.5 "

Chamber Diameter

4 "

Power Supply Dimensions

8.5"x6"

Electrical

Voltage

120 V

Frequency

50-60 Hz

Power Consumption

36 W

General

Chamber Material

304 Stainless Steel Reactor

Certification

CE Standards

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors

Mouse over for more information.

Customers who purchased this item also bought:

Trojan Quartz Sleeve 602731 for UVMax B & B4 Systems FWS # 602731	$33.60	Qty:
10" Heavy Duty Sediment Prefilter Kit - 3/4" FWS # FK-10BB34-SD05	$98.98	Qty:
10" BB Dual Gradient Polypropylene Sediment Filter 50/5 mic FWS # SGD-45-1005	$13.31	Qty:
20" Slimline Sediment Prefilter Kit - 1/2" FWS # FK-20SL12-SD05	$64.88	Qty:

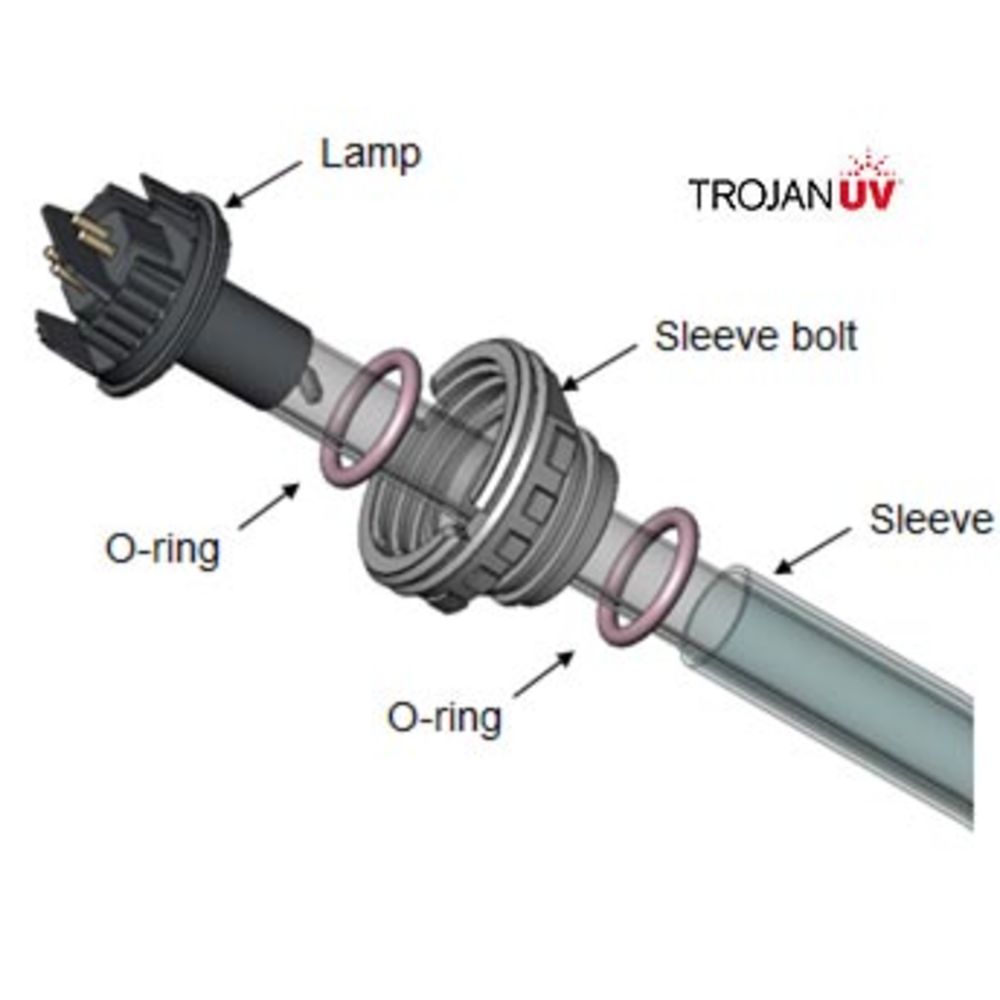

Trojan UV Lamp 602804 for UVMax B, B4 FWS # 602804	$78.65	Qty:
