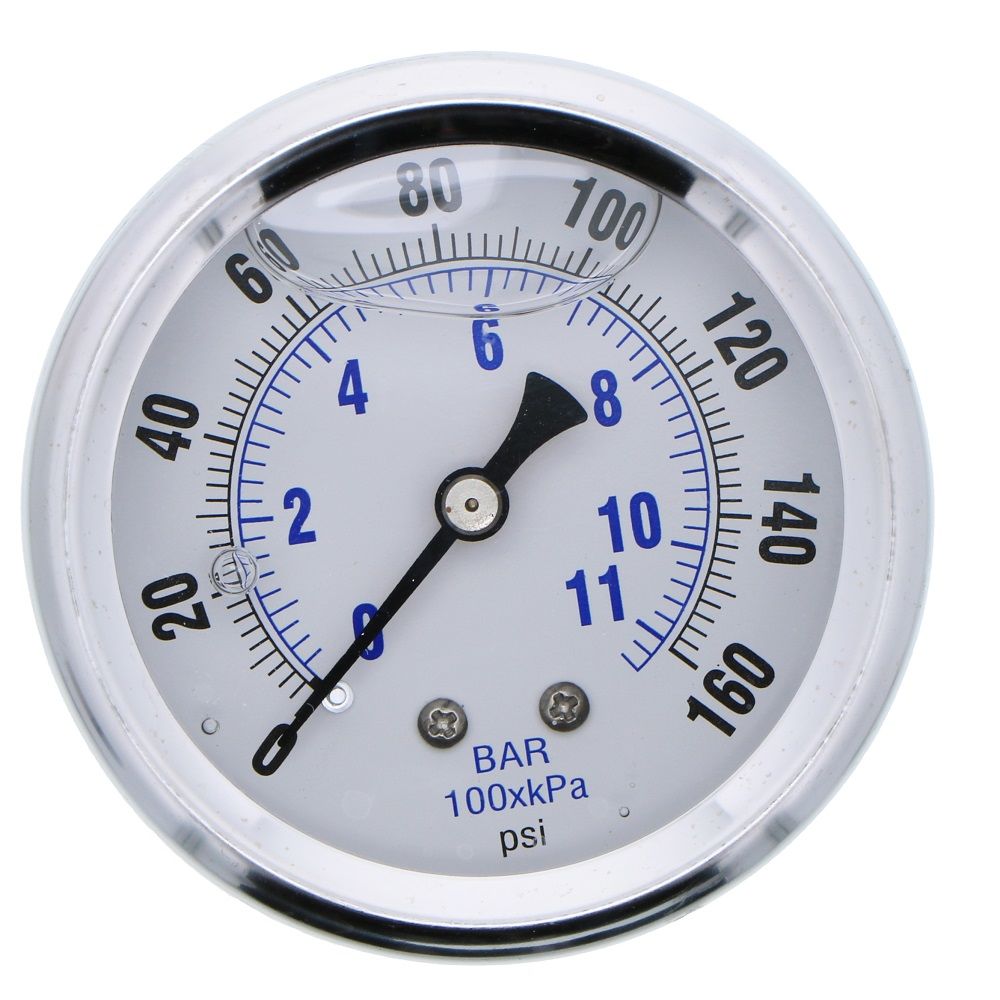

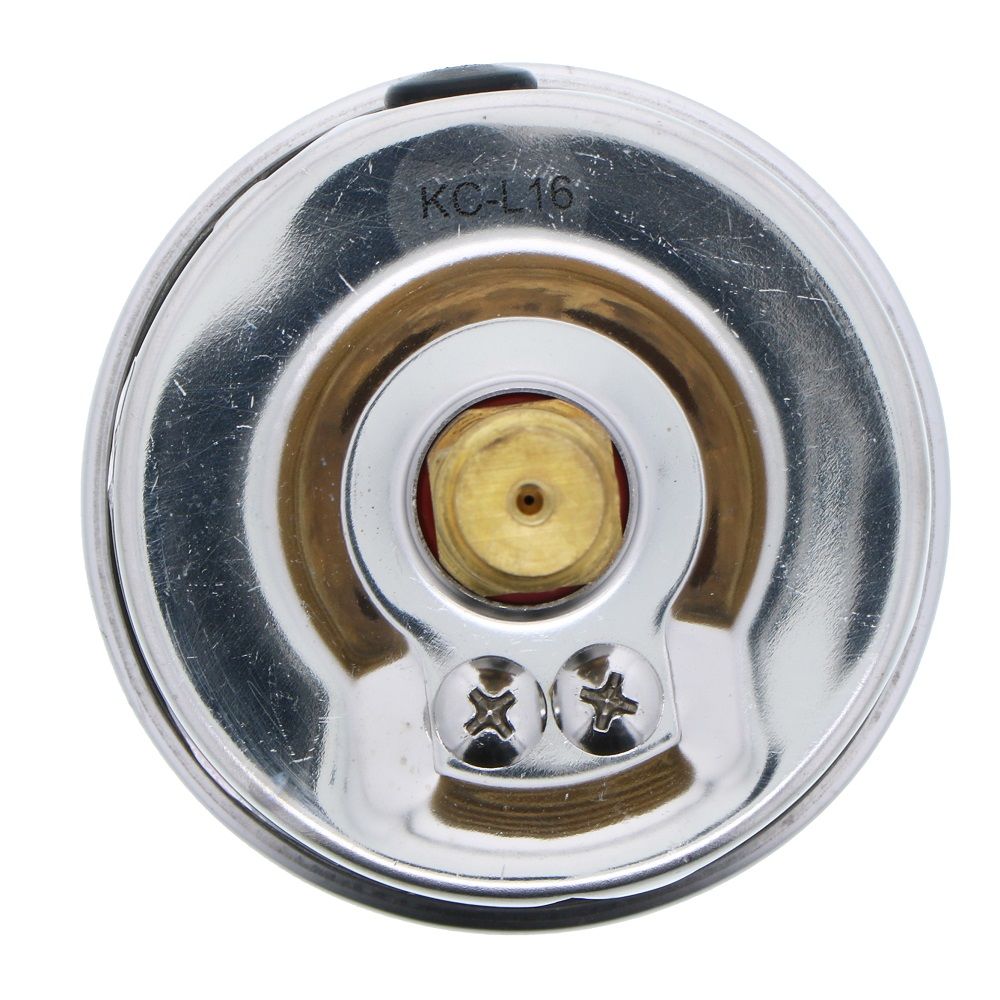

NOSHOK Bottom Mount 2.5" Pressure Gauge 0-160 psi, S.S., 1/4" NPT

NOSHOK 25-901-160 Bottom Mount Pressure Gauge - 2.5

Liquid Gauges are used on industrial applications throughout the world where pulsation, vibration and shock is present and the pressure media is not corrosive to brass.

Model: 900 Series Pressure Gauge
Part Number: 25-901-160

Price: $22.14

Qty:

Details
Specs
Reviews
Related

NOSHOK Bottom Mount 2.5" Water Pressure Gauge 0-160 psi, S.S., 1/4" NPT

The NOSHOK 25-901-160 gauges are a high quality gauge that incorporates unique design features aimed at extended service life and reliability. The are used world wide where pulsation, vibration, and shock are present and the media is not corrosive to brass.

Extremely high quality pressure gauges
Liquid filled for extended service life and shock resistance
Stainless Steel case with polycarbonate lens
Unique o-ring case and connection seals guard against leakage and protect against shock and vibration
Relief disc on top and back provides positive case relief
High grade glycerine fill dampens the effects of pulsation, vibration and shock loads, and provides lubrication of the movement
Three Year Warranty
Applications: Chemical Plants, Petro Chemical Refineries, Pharmaceutical, Food & Beverage Processing, Fertilizer Plants, Off-Shore Oil Platforms, Paper Mills, Salt Mines, On Shipboard

NOSHOK 25-901-160 Water Pressure Gauge Specifications
NOSHOK 25-901-160 Water Pressure Gauge Installation Guide

General

Face Diameter

2.5"

Mount Type

Lower Bottom

Connection

1/4" MPT

Operating Specs

Pressure Range

0 - 160 psi

Temperature Range

0 - 140 °F

Construction

Casing

304 Stainless Steel

Internals

Brass

Stem

Brass

Face	Molded Plastic with Black/Red Print

Lens	Polycarbonate

Pointer

Molded Plastic

Fluid

Glycerine and water

Mouse over for more information.
