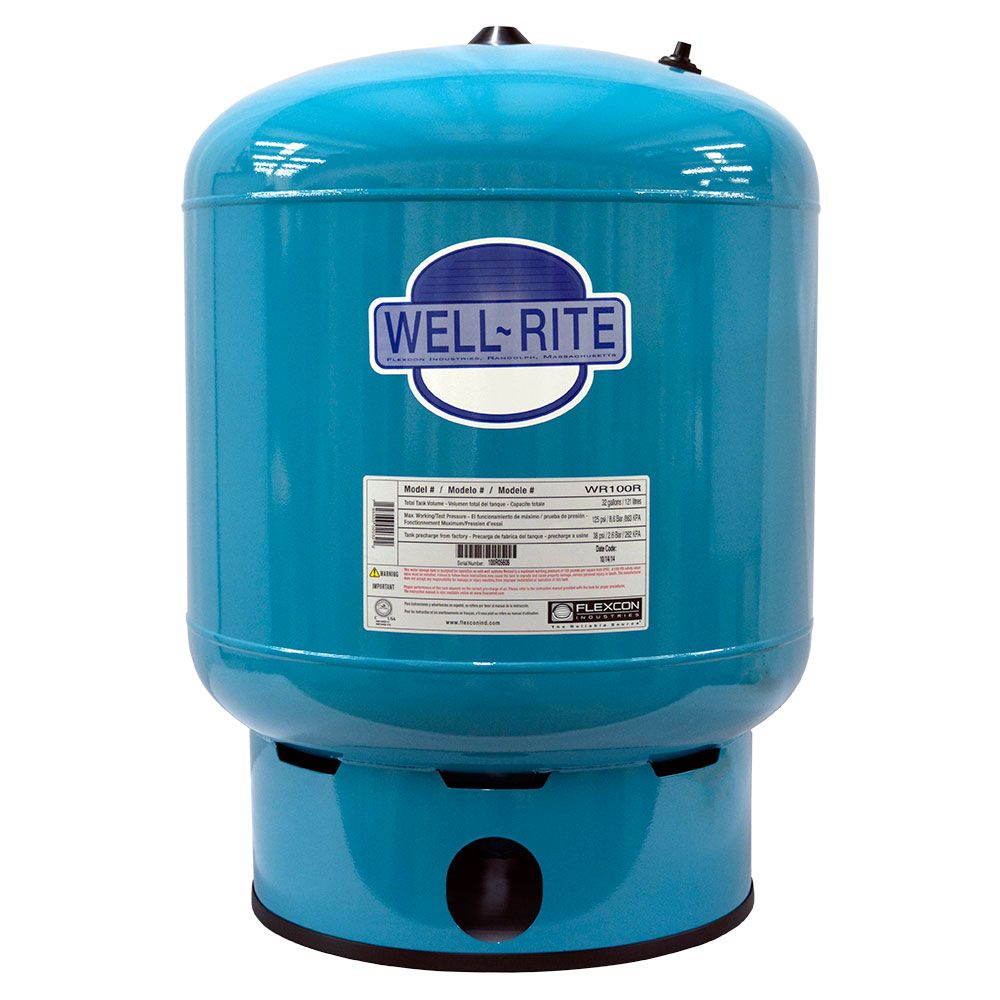

Well-Rite WR-100 Well Tank/RO Water Storage Tank 32 Gal Steel

Well-Rite WR-100 Well Pressure Tank Features:

The Well-Rite WR-100 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-100 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Stainless steel system connection
Brass Air Valve with o-ring seal
Controlled Action Diaphragm maximizes drawdown
Heavy duty butyl diaphragm
Appliance quality urethane paint for indoor or outdoor installation
Drawdown 30/50 Setting: 10.9 gallons
5 year warranty
NSF Standard 61 listed

The Well-Rite WR-100 32 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection avoids leaching issues and features a powder coated steel exterior and fully enclosed polypropylene & butyl water reservoir. The air pre-charge is factory set at 38 psi for well tank applications. For RO applications, reduce the pre-charge to 7 PSI to maximize water storage.

Well-Rite WR-100 Well Pressure Tank Features
Well-Rite WR-100 Well Pressure Tank Specifications
Well-Rite WR-100 Well Pressure Tank Installation Manual

Tank Specifications

Total Volume

32 Gallons

Holding Capacity @ 40 psi

17.5 Gallons

Tank Pre-charge

38 psi

Inlet/Outlet Size

1-1/4" NPT Stainless Steel

Inlet/Outlet Location

Top

Air Valve Stem Location

Top

Drawdown at 30/50 Setting

10.9 Gallons

Dimensions

Height w/ Stand

27.75 "

Diameter

21 "

Weight

54 lbs

Operating Conditions

Max Temperature

140 °F

Max Working Pressure

125 psi

Tank Materials

Steel

Diaphragm Materials

Butyl Rubber

Origin

USA

Certifications

NSF 61

Warranty

5 years
