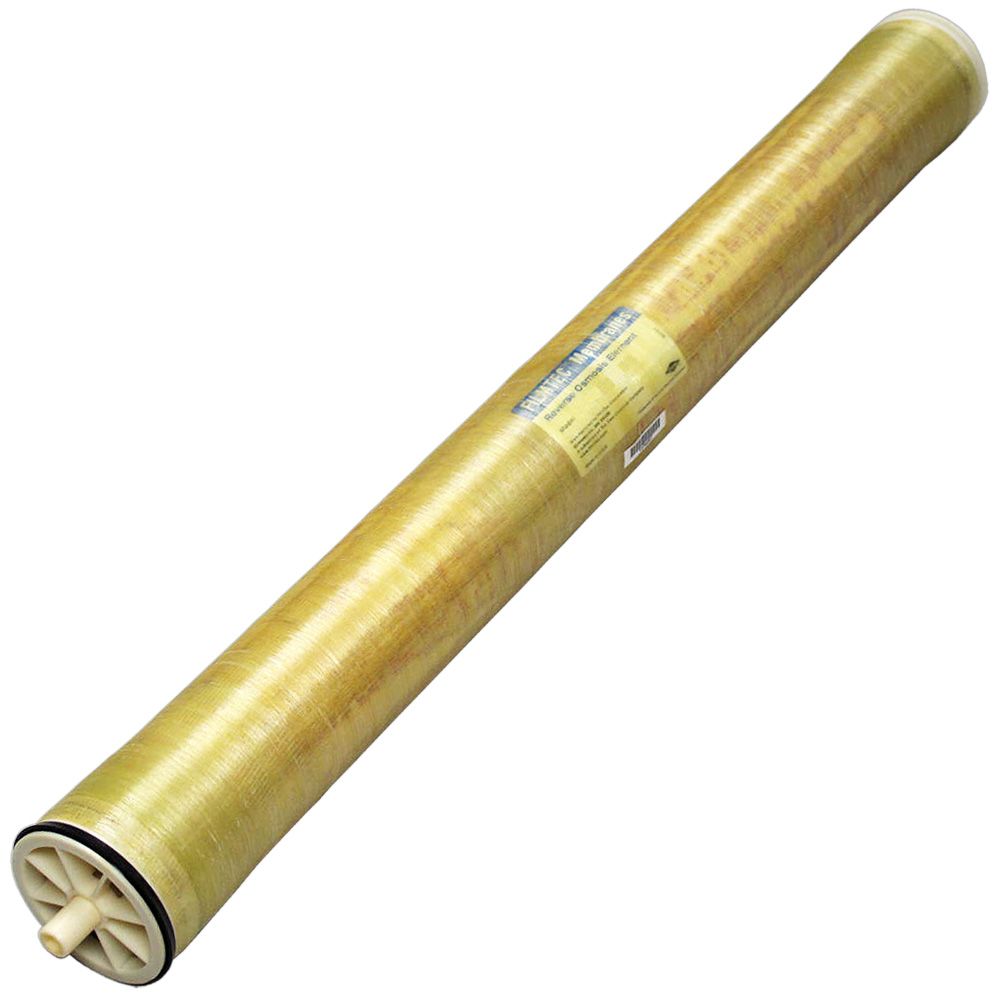

Filmtec SW30-4040 Sea Water 1950 GPD RO Membrane Element

Sea Water Membrane

1950 Gallon Per Day

Part Number: SW30-4040

Price: $446.01

Qty:

Details
Specs
Reviews
Related

Filmtec SW30-4040 Sea Water Membrane 3.9" x 40" 1950 GPD Features:

The Dow FILMTEC SW30-4040 Sea Water Membrane is specifically designed for applications where the higher TDS (Total Dissolved Solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining a 99.4 percent stabilized salt rejection.

Up to 1950 Gallon Per Day production
Up to 1000 SIPG
Fits Standard 4" Housings or Pressure Vessels
Highest flow rates available to meet the water demands of both sea-based and land-based desalinators
May also be operated at lower pressure to reduce pump size, cost and operating expenses
Improved FILMTEC seawater membrane combined with automated, precision element fabrication result in the most consistent product performance available

DOW Filmtec SW30-4040 Sea Water RO Membrane Element Specifications

Also known as:

Filmtec Membranes

80741

Production

Applied Pressure

800 psi

Permeate Flow Rate

1950 gpd

Average NaCl Rejection

99.4 %

Dimensions

Length

40 "

Diameter

3.9 "

Operating Conditions

Max Temperature

113 °F

Max Pressure

1000 psi

Maximum Pressure Drop

15 psid

pH Range, Continuous Operation

2-11

pH Range, Short Term Cleaning

1-13

Maximum Feed Silt Density Index

5 SDI

Chlorine Tolerance

<0.1 ppm

Membrane Specifications

Membrane Style

Drop-in Element

Materials

Polyamide Thin-Film

Active Area

80 ft²

Outer Wrap

Fiberglass

Certifications
