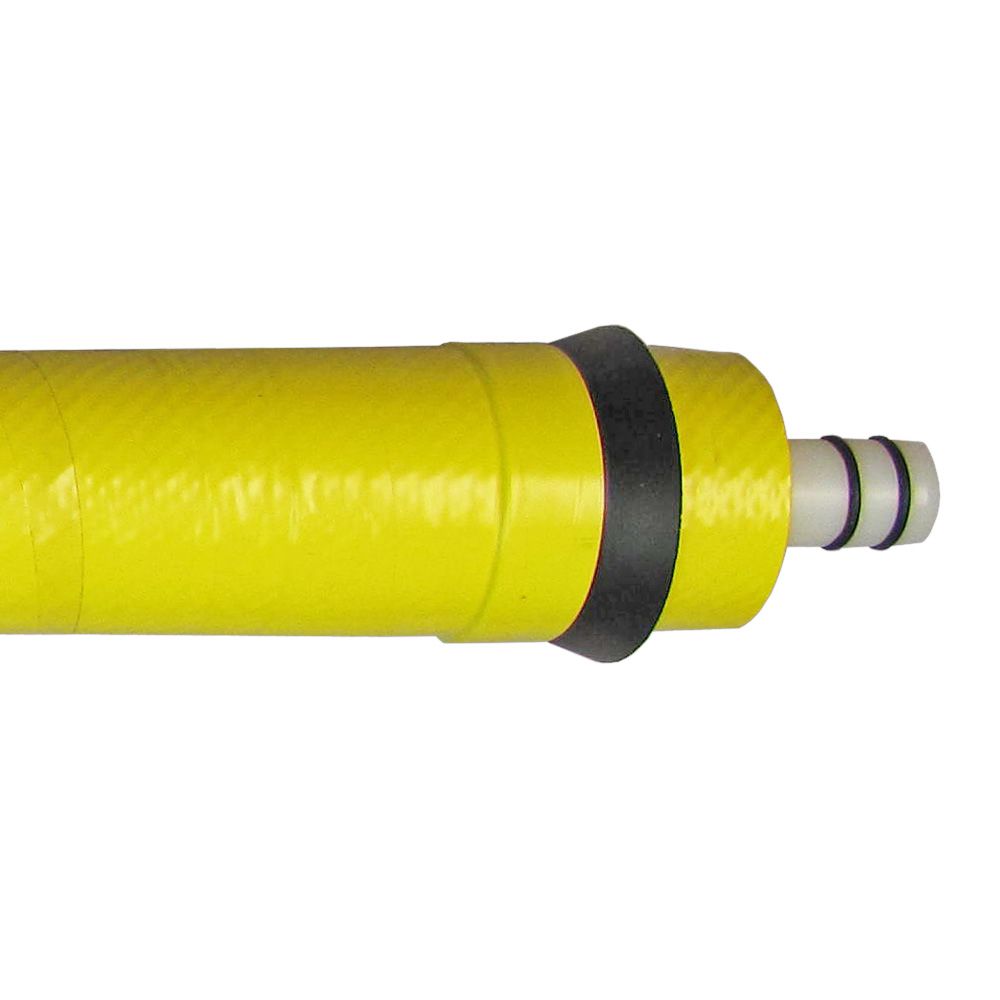

Filmtec NF90-2540 680 GPD Nano Membrane Element

Part Number: NF90-2540

Filmtec NF90-2540 680 GPD Nano Membrane Element

Part Number: NF90-2540
Regular price $315.71

Product not eligible for free shipping

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Dow FILMTEC NF90-2540 Nanofiltration Membrane is specifically designed for applications with high concentrations of silt, nitrates, iron and organic compounds such as pesticides, herbicides and THM (Trihalomethane gas) precursors, while offering effectiveness even at low operating pressures.

Specifications:
  • Up to 680 Gallon Per Day production
  • Up to 600 psi
  • Fits Standard 2.5" Housings or Pressure Vessels
  • The Filmtec NF90-2540 Nano Membrane 2.4" x 40" 680 GPD Nanofiltration Element for Commercial Systems
  • Provides high productivity performance while removing a high percentage of salts, nitrate, iron and organic compounds such as pesticides, herbicides and THM precursors
  • Low net driving pressure allows the removal of compounds at low operating pressure

Compatible with:
Filmtec Membranes149982

Specifications

  • Product Details
  • Active Area
    28 sq. ft.
  • Chlorine Tolerance
    <0.1 ppm
  • Cleaning Ph Range
    1-12
  • Direction
    Outside - In
  • Feed Water
    Brackish Water
  • Inlet Pressure
    70 PSI
  • Max Feed Silt Density Index
    5 Silt Density Index
  • Max Flow Rate
    6 gpm (1.4 m3/hr)
  • Max Pressure Drop
    13 PSI Differential
  • Membrane Type
    Nanofiltration
  • Permeate Flow Rate
    680 gpd (2.6)
  • Permeate Tube Diameter
    0.75 in
  • Shipping Dimensions
  • Shipping Length
    40
  • Shipping Width
    3.5
  • Shipping Height
    3

Downloads

Filmtec NF90-2540 680 GPD Nano Membrane Element Manual
