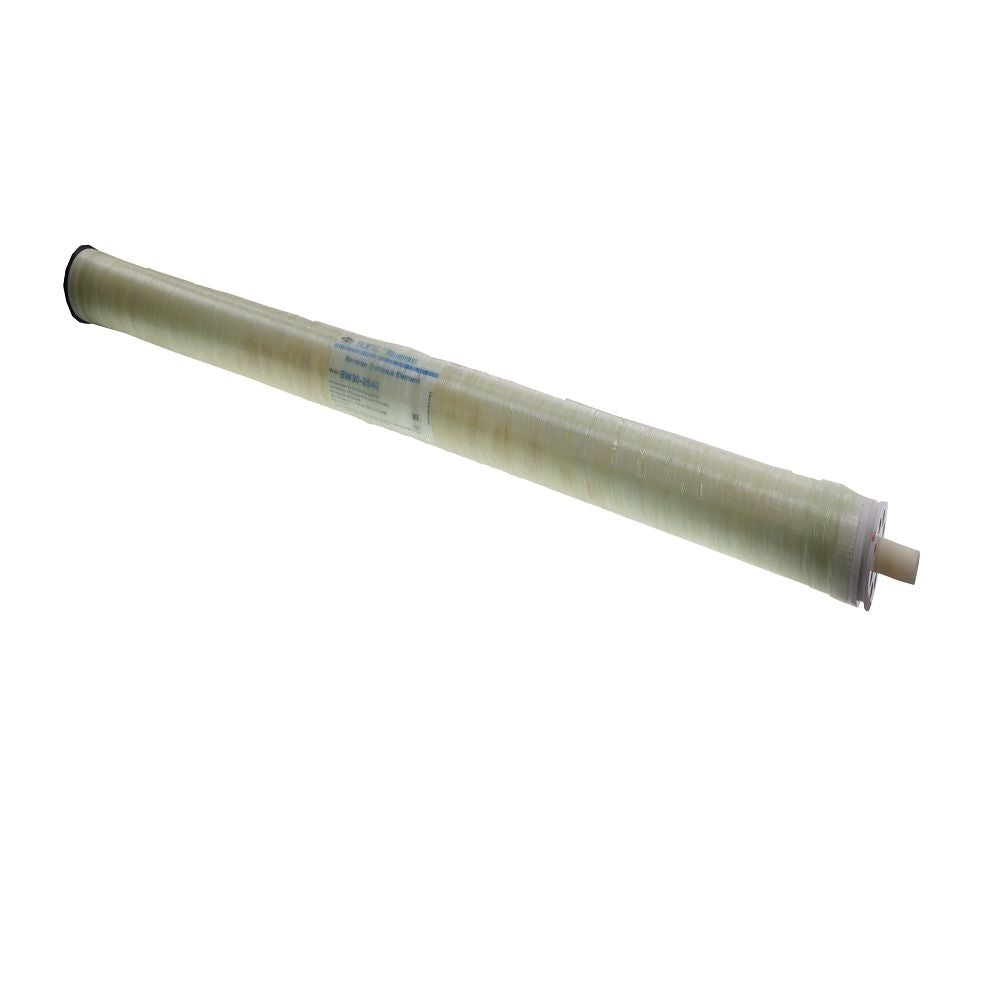

Filmtec BW30-2540 Brackish Water 850 GPD RO Membrane Element

Filmtec BW30-2540 Brackish Water Membrane 2.4" x 40" 850 GPD Features:

The Dow FILMTEC BW Brackish Water Membranes are specifically designed for light industrial applications with higher than normal silt density. Due to the fiberglass outer wrap, these Brackish Water (BW) membranes can consistently sustain the higher pressures required in these applications.

Up to 850 Gallon Per Day production
Up to 600 SIPG
Fits Standard 4" Housings or Pressure Vessels
FILMTEC BW30-2540 elements are designed for systems smaller than 1 gpm (0.2 m3/h) offering a hard shell exterior for extra strength

DOW Filmtec BW30-2540 Brackish Water RO Membrane Element Specifications

Also known as:

Filmtec Membranes

80766

Production

Applied Pressure

225 psi

Permeate Flow Rate

660 gpd

Average NaCl Rejection

99.5 %

Dimensions

Length

40 "

Diameter

2.4 "

Operating Conditions

Max Temperature

113 °F

Max Pressure

600 psi

Maximum Pressure Drop

15 psid

pH Range, Continuous Operation

2-11

pH Range, Short Term Cleaning

1-13

Maximum Feed Silt Density Index

5 SDI

Chlorine Tolerance

<0.1 ppm

Membrane Specifications

Membrane Style

Drop-in Element

Materials

Polyamide Thin-Film

Active Area

28 ft²

Outer Wrap

Fiberglass

Certifications

Mouse over for more information.
