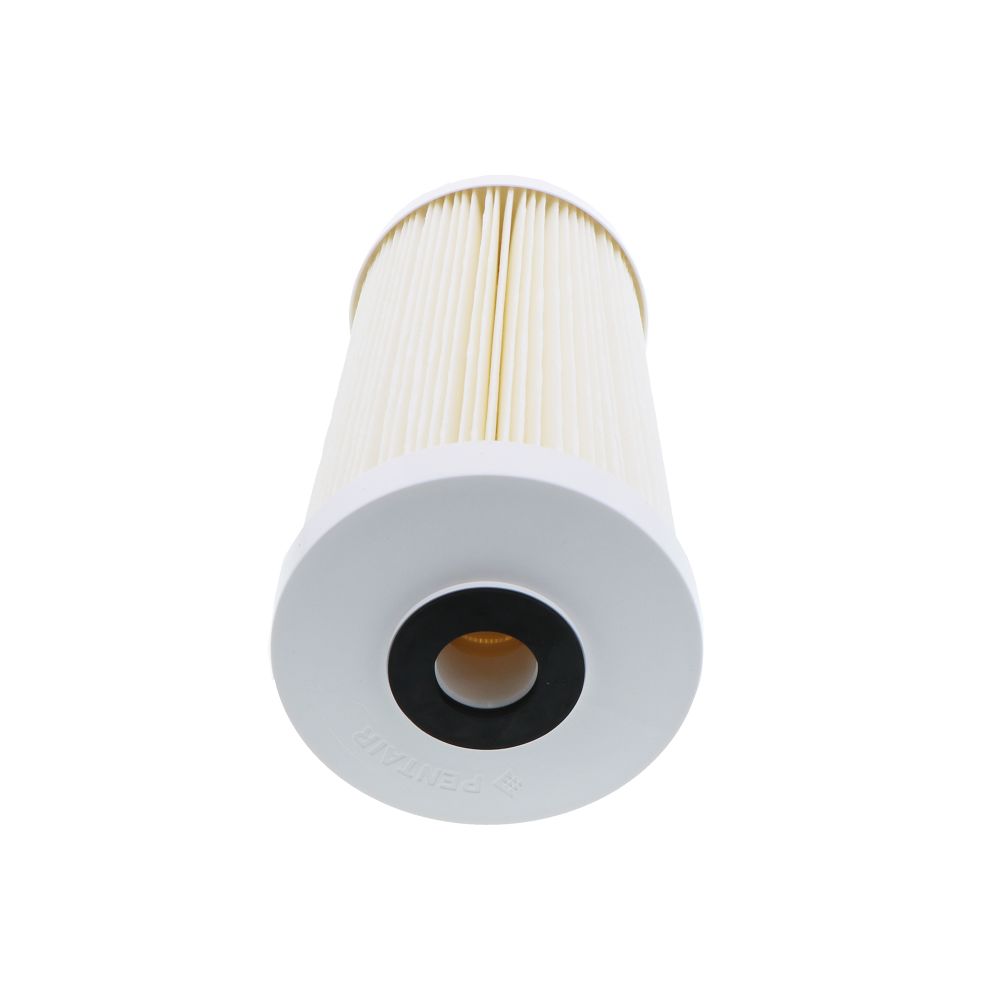

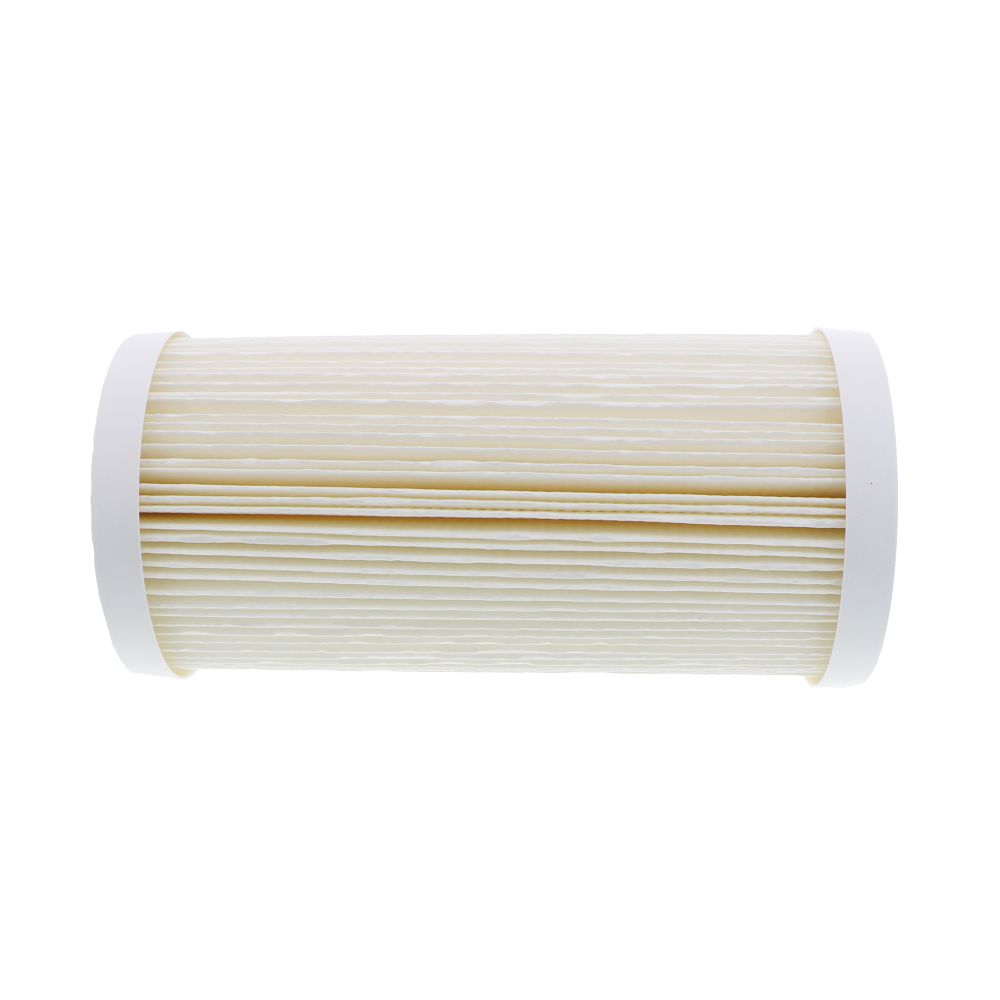

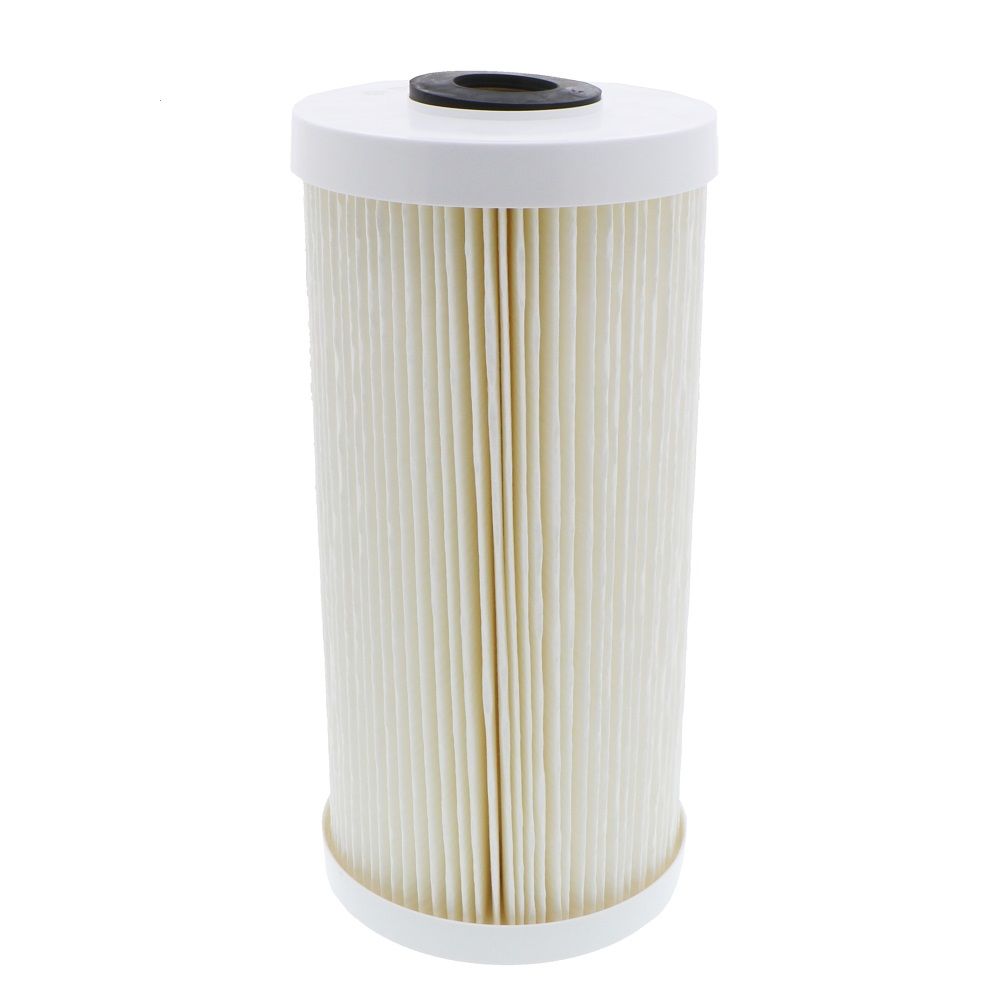

10" BB Pentek Pleated Cellulose-Polyester ECP5-BB 5 mic Filter

10" BB Pentek Pleated Cellulose-Polyester ECP5-BB 5 mic Filter Features:

The Pentek ECP Series Filters are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers. This unique blend of materials provides a higher wet strength that regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop.

Special formulation of resin-impregnated cellulose and polyester fibers
Provides higher wet strength than regular cellulose cartridges
Provides high flow rates and dirtholding capacity, while maintaining extremely low pressure drop.
Minimal unloading and media migration
Contains more media surface area than most competitive cartridges (the 10" Big Blue ECP cartridges contain 18 square feet of media)

Replacement Filter for Culligan HD-950 & most other 10" Big Blue Filter Housings
Replaces CP and HFCP Series Cartridges

10" BB Pentek ECP5-BB Pleated Cellulose-Polyester 5 mic Filter Specifications

Also known as:

Ace Hardware	4021341
American Plumber	W5CPHD
Culligan	155184, CP5-BB, CP5-BBS, CP5-BBSa
Culligan Water Filters	155184, CP5-BB, CP5-BBS, CP5-BBSa
Keystone	GPC5
Purwater	PC05-BB-S

Filter Specifications

Filter Application

Sediment/Dirt/Rust

Cartridge Style

Drop-In

Micron Rating (Nominal)

5 µm

Manufacturer

Pentek

Dimensions

Length

9-3/4" (24.8 cm)

Outer Diameter

4.5" (11.4 cm)

Quantity per case

Operating Conditions

Flow Rate

20 gpm

Initial Pressure Drop

1 psid

Temperature Rating

40-125 °F

Filter Life

Change Frequency

As Needed

Materials of Construction

End Cap Material

Vinyl-Plastisol

Filter Media

Pleated Cellulose Polyester

End Caps

DOE

Certifications

Mouse over for more information.
