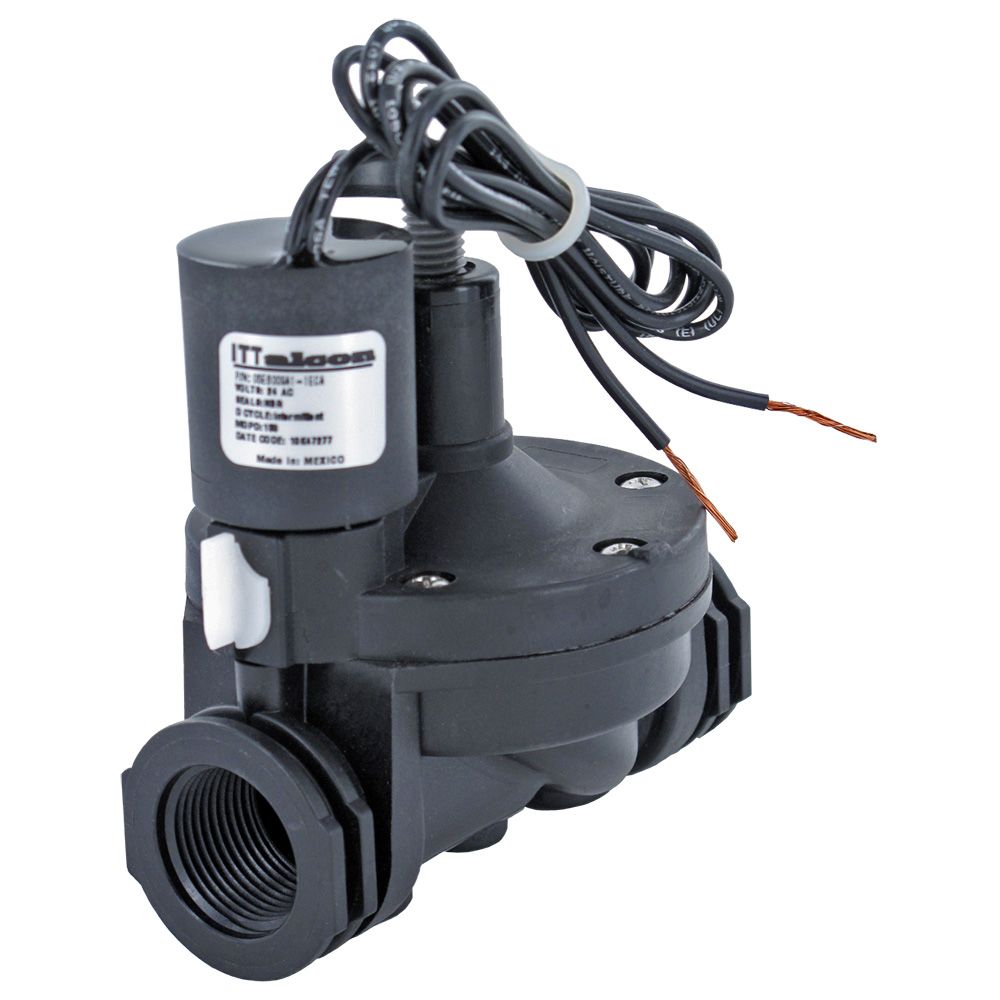

Alcon 05EB009A1-1ECA Solenoid Valve N.C. With Flow Control 3/4 FPT 24V

Part Number: 05EB009A1-1ECA
Alt. Part Number: 953B-1249

Price: $43.98

Qty:

Details
Specs
Reviews
Related

Alcon 05EB009A1-1ECA Solenoid Valve N.C. With Flow Control 3/4 FPT 24V Features:

Alcon 05EB009A1-1ECA Normally Closed 3/4" port solenoid valves are designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of glass reinforced nylon and the diaphragm and seals are Nitrile (Buna-N).

Ports: 3/4" NPT Female
Body Material: Glass Reinforced Nylon
Internal Components: Stainless Steel
Seals: NBR (Buna-N)
Voltage: 24V AC
Duty Cycle: Intermittent
Connection Type: 18 AWG Lead Wires
Has adjustable flow control
Certified to NSF/ANSI Standard 61

Alcon 05EB009A1-1ECA Solenoid Valve N.C. With Flow Control 3/4 FPT 24V Applications:

Car Wash
General Industrial
Process Applications

Water Industries
HVAC

Alcon 05EB009A1-1ECA Solenoid Valve N.C. with Flow Control 3/4 FPT 24V Specifications

Specifications

Port Size

3/4" FPT "

Normally Open or Normally Closed

Closed

Voltage

24V AC

Temperature Range

max. 120°F (49°C)

Wetted Materials

Glass Reinforced Nylon

Operating Pressure Range

10 - 150 psi

Power Consumption

5 W

Certifications

NSF Certified

YES

Country of Origin

Mexico
