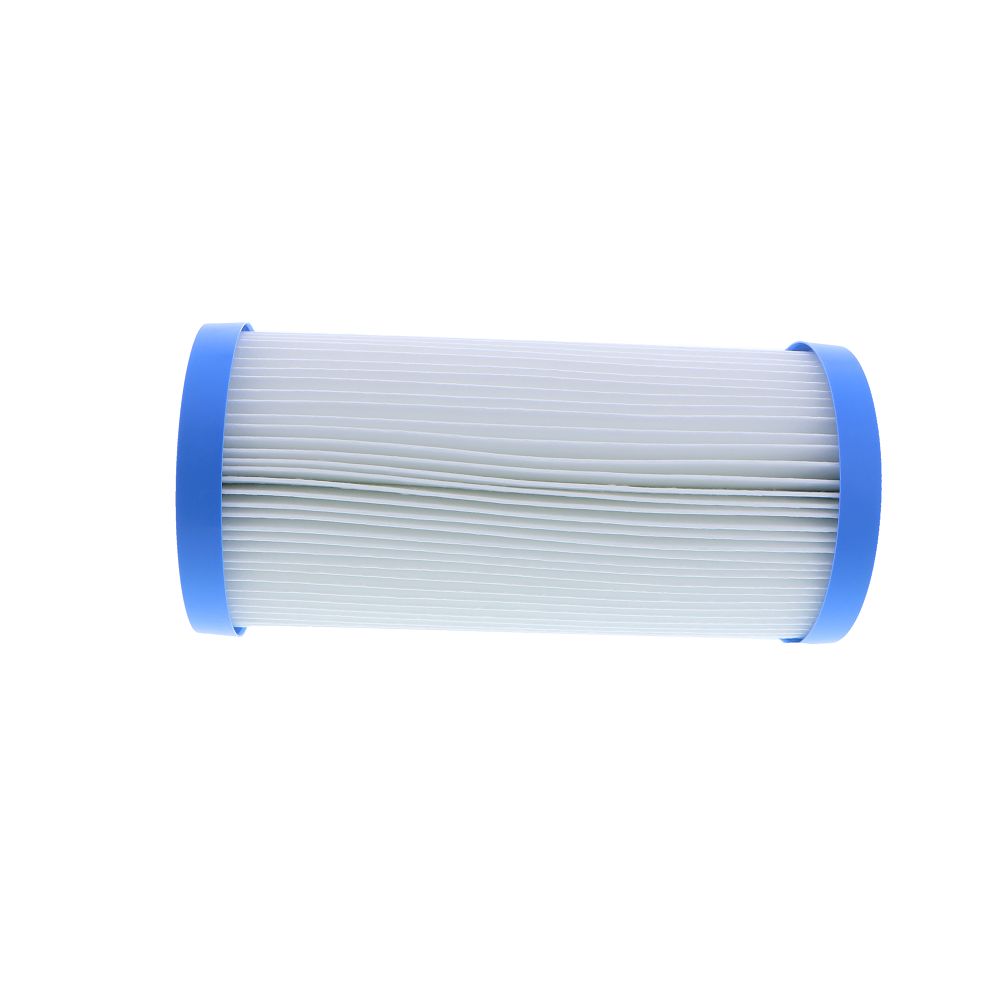

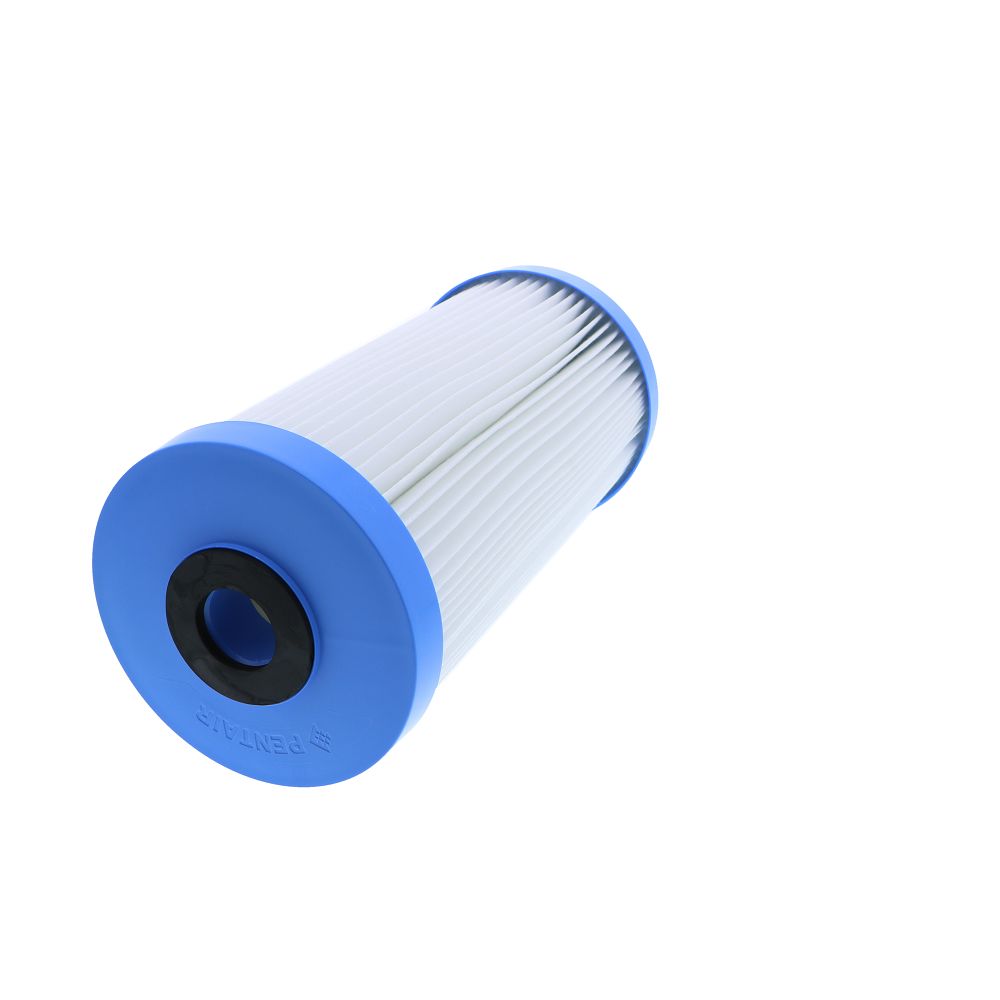

10" BB Pentek R30-BB Pleated Polyester 30 Mic Filter

10" BB Pentek R30-BB Pleated Polyester 30 Mic Filter Features:

R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses.
The media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.

Replacement filter for most 10" Big Blue Housings
Pleated design maximizes dirt-holding capacity
Versatile and reusable, allowing for a variety of uses
Durable non-woven polyester media is bacteria and chemical resistant
Applications: potable water, light industrial applications, swimming pool and spa, and well water applications

Pentek R30-BB Pleated Polyester Filter Specifications

Also known as:

10" BigBlue® Filter Housings	FXHSC
Cartridges for Heavy Duty Housings	W30PEHD, 155101-51
Keystone	GPE30
Liquatec	SPF-45-1030

Filter Specifications

Micron Rating (Nominal)

30 µm

Manufacturer

Pentek

Country of Origin

Mexico

Dimensions

Length

9-3/4" (24.8 cm)

Outer Diameter

4.5" (11.4 cm)

Quantity per case

Operating Conditions

Flow Rate

10 gpm

Initial Pressure Drop

1 psid

Temperature Rating

40-125 °F

Filter Life

Change Frequency

As Needed

Materials of Construction

End Cap Material

Vinyl-Plastisol

Filter Media

Non-Woven Polyester

End Caps

DOE

Certifications

Mouse over for more information.
