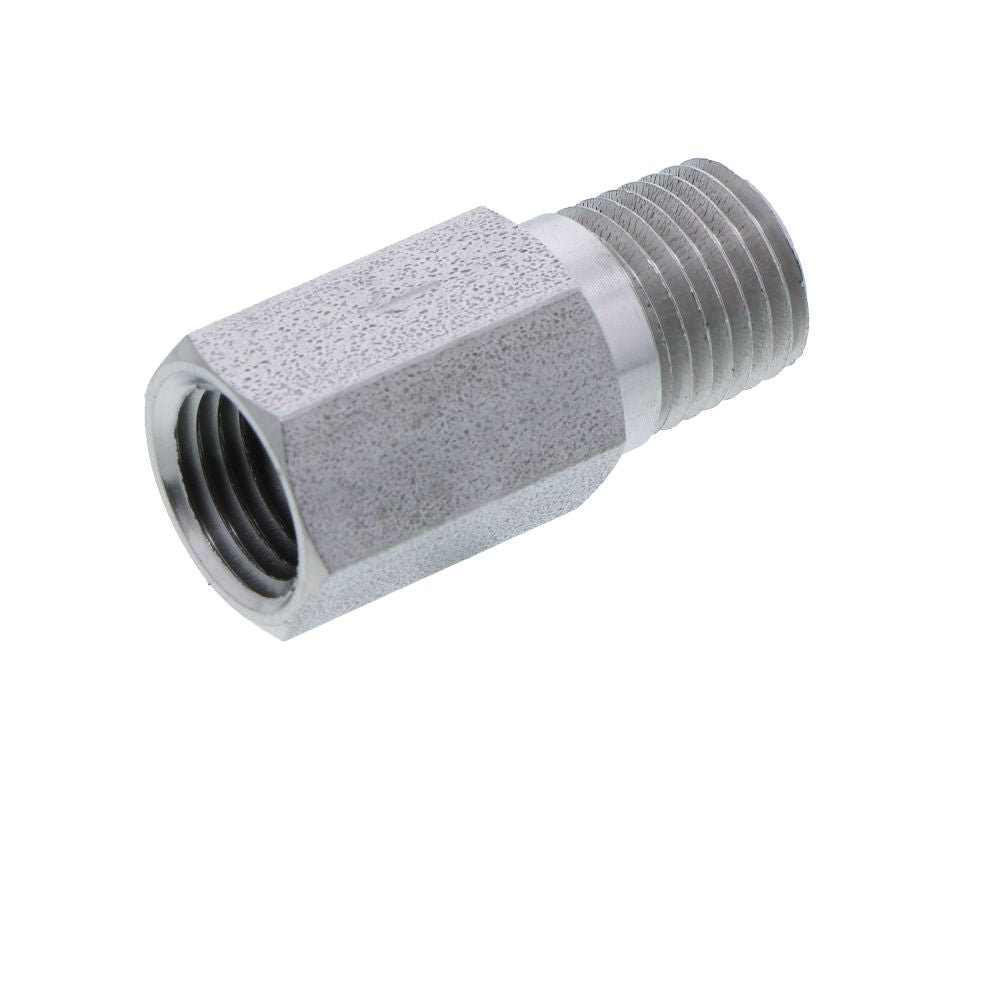

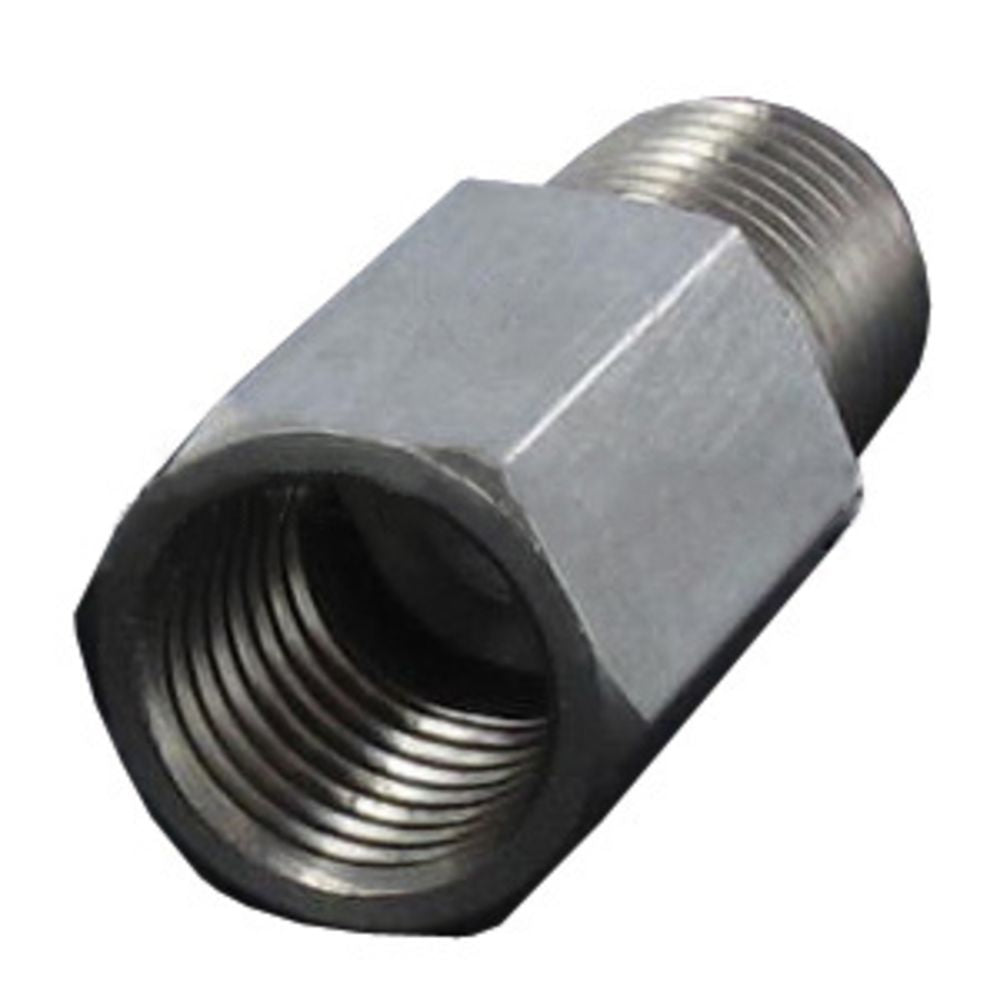

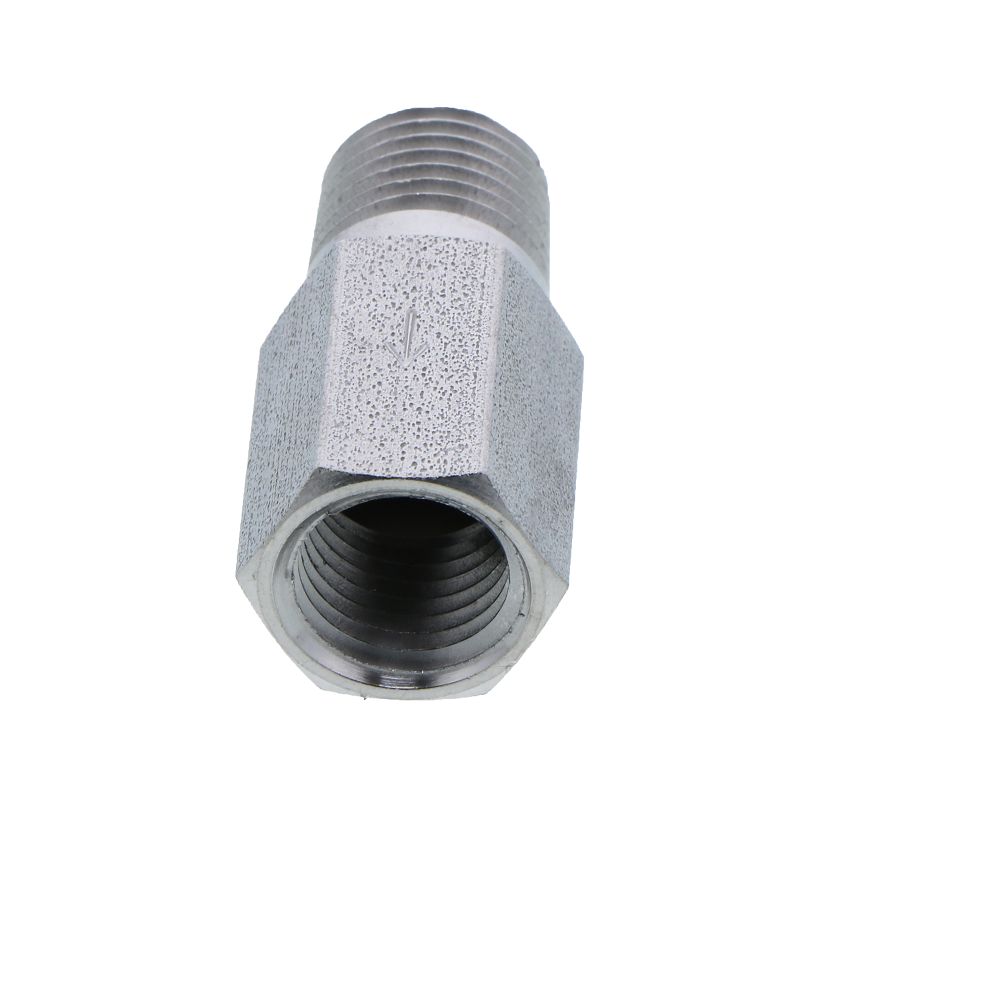

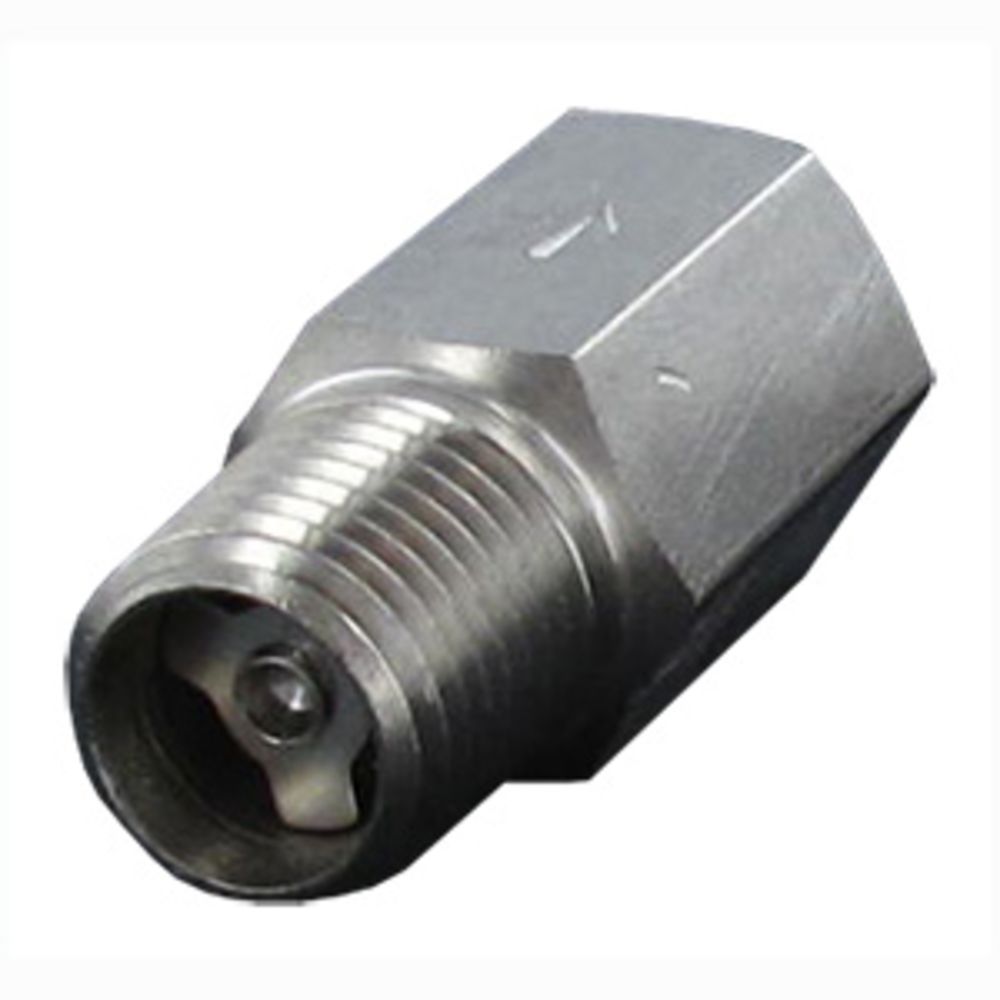

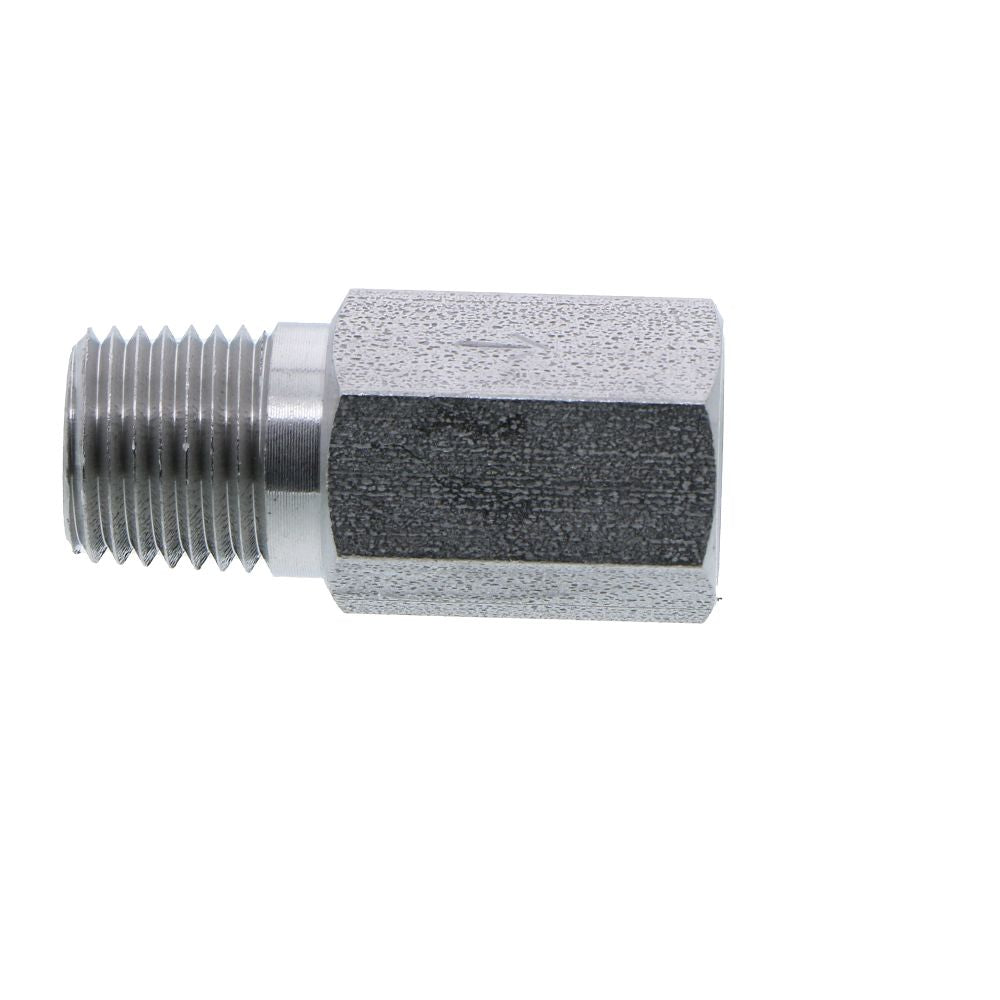

Inline Stainless Check Valve Viton O-Ring - 1/4" MPT Inlet x 1/4" FPT Outlet

Part Number: CV14SV-MF
Alt. Part Number: CV14SF-V, CV14SF-MxF

MSRP: $12.02

Price: $11.37

Qty:

CV14SV-MF Inline Stainless Check Valve, Viton O-Ring - 1/4" MPT Inlet x 1/4" FPT Outlet Features:

Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Material: Stainless Steel
Connection: 1/4" MPT Inlet x 1/4" FPT Outlet
Dimensions: 1.41" x 11/16" Hex

Cracking Pressure: 1.5 psi +/- 1/2 psi

Flow Rates: 1.28 gpm @ 5 psi, 1.92 gpm @ 10 psi, 2.36 gpm @ 15 psi, 2.8 gpm @ 20 psi

O-Rings: Viton, FDA grade
