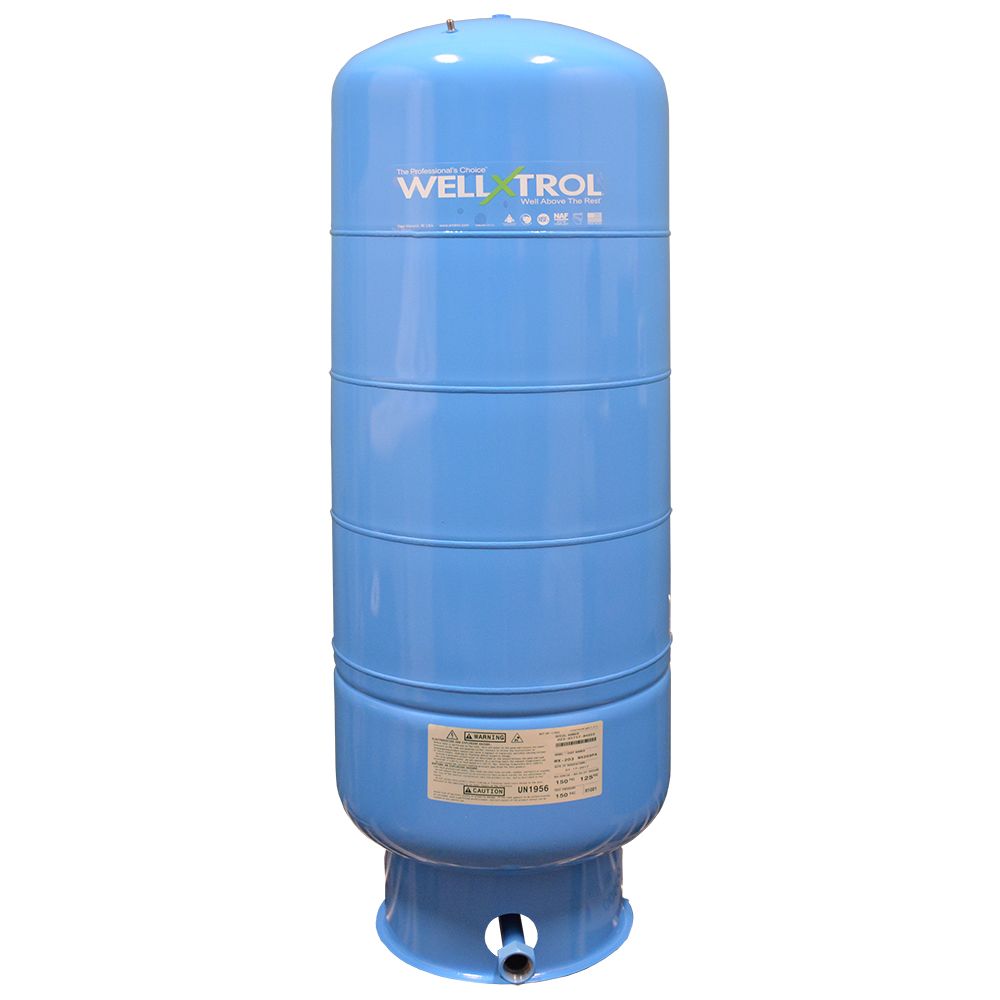

Amtrol Well-X-Trol WX-203-PRO Well Pressure Tank 32 gal w/ Pro Access

Well-X-Trol WX-203-PRO Well Pressure Tank Features:

The Well-X-Trol WX-203-PRO well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-203-PRO now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Heavy duty butyl diaphragm
Stainless steel system connection piped through the base of the stand
Stainless steel air stem
Virgin polypropylene liner
100% Helium tested
Drawdown 30/50 Setting: 10.9 gallons
7 year warranty
NSF Standard 61 listed

Well-X-Trol WX-203-Pro Well Pressure Tank Brochure
Well-X-Trol WX-203-Pro Well Pressure Tank Installation Manual

Tank Specifications

Application(s)

Pressure Pump Tank

Total Volume

32 Gallons

Tank Pre-charge

38 psi

Inlet/Outlet Size

1" NPTF Stainless Steel

Inlet/Outlet Location

Bottom

Air Valve Stem Location

Top

Drawdown at 30/50 Setting

10.9 Gallons

Dimensions

Height w/ Stand

46-1/2 "

Diameter

15-3/8 "

Weight

43 lbs

Operating Conditions

Max Temperature

200 °F

Max Working Pressure

150 psi

Tank Materials

Steel

Diaphragm Materials

Butyl Rubber

Origin

USA

Certifications

NSF 61

Warranty

7 year
