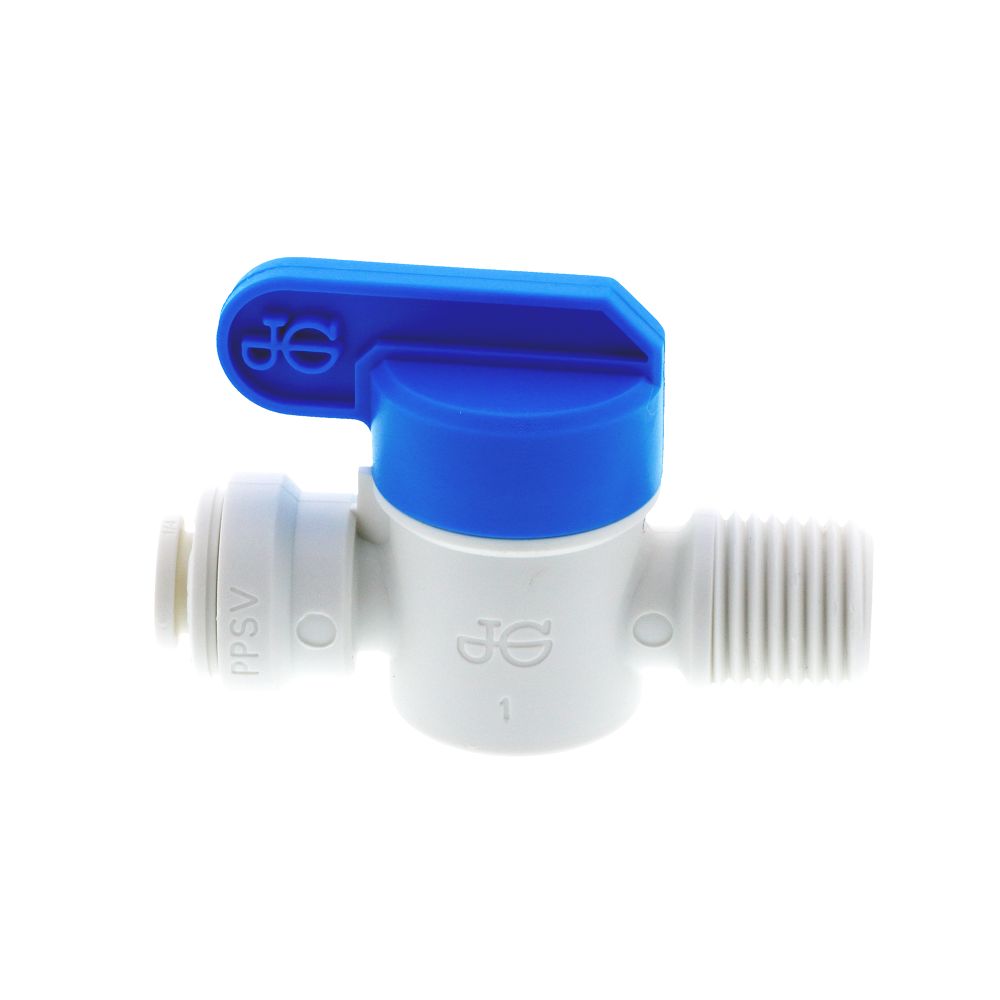

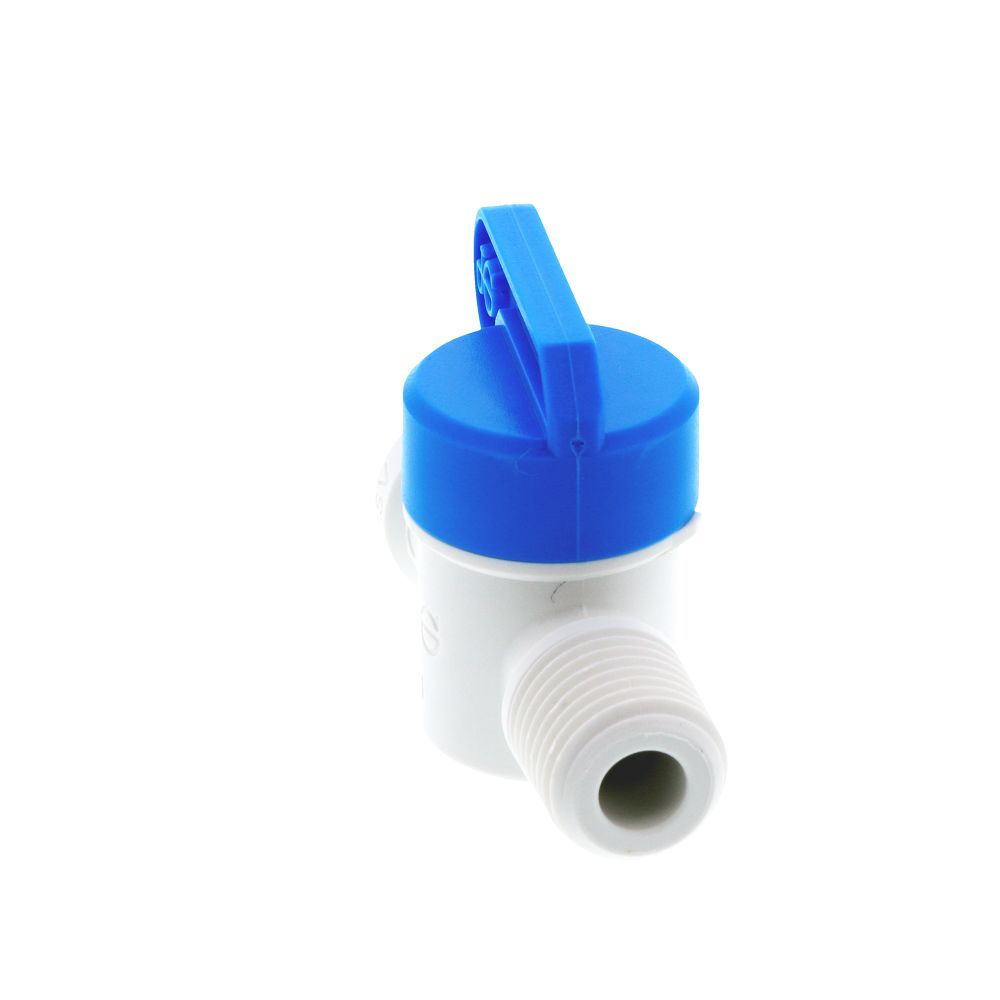

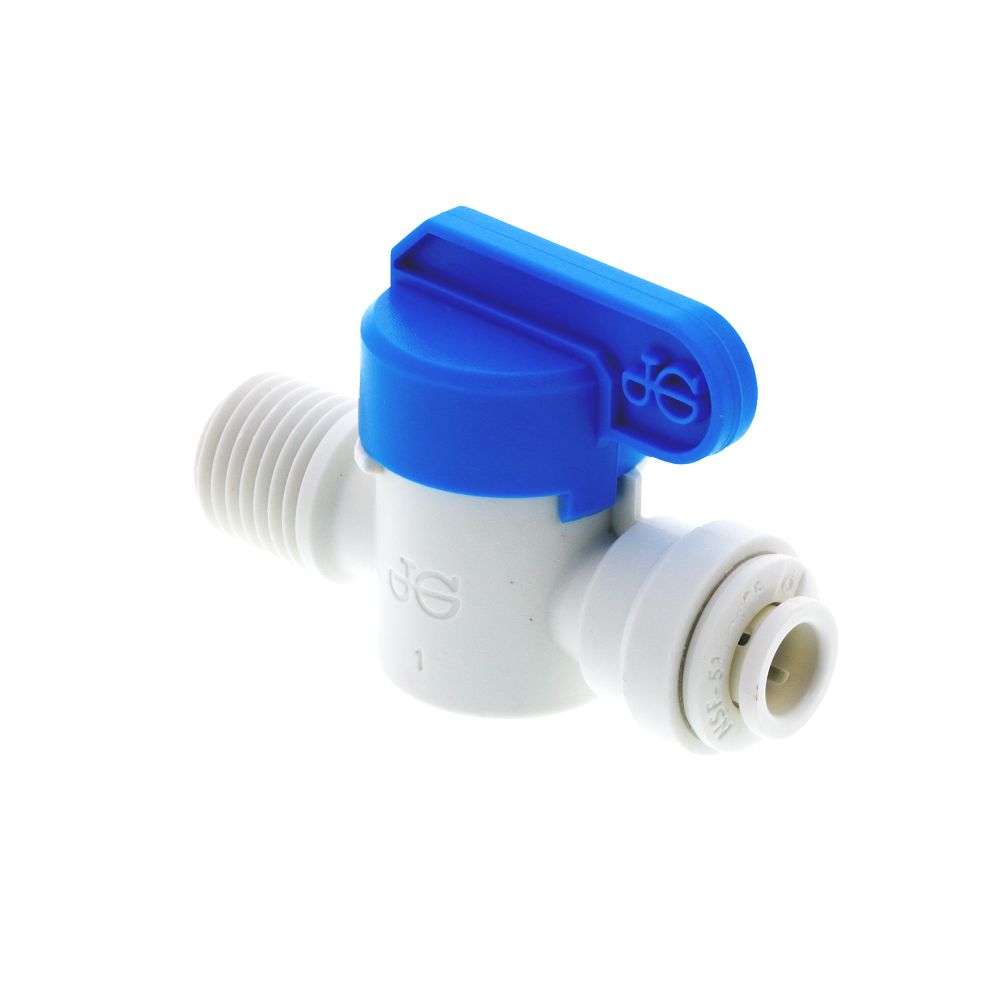

John Guest Shut-Off Valve Polypro Male NPTF - 1/4 Tube x 1/4 Male NPTF

5.0

(3 reviews)

Part Number: PPSV010822W-X Alt. Part Number: AHMC0404

1 3

John Guest

John Guest Shut-Off Valve Polypro Male NPTF - 1/4 Tube x 1/4 Male NPTF

5.0

(3 reviews)

Part Number: PPSV010822W-X Alt. Part Number: AHMC0404

MSRP: $7.44

$5.71

Quantity

Unit Price

Price

Savings

$5.71

—

$5.37

$53.76

200

$4.75

$950.00

16%

1000

$4.56

$4,569.60

20%

Product variants

You May Also Need

Optional Accessory
Black 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.85
Optional Accessory
PTFE Teflon® Thread Seal Tape - 0.4 Density 1/2" x 60"

Regular price From $0.39
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
NeoFit - Acetal Locking Clip 1/2" and 12mm

Regular price From $0.23
Optional Accessory
John Guest Collet Cover - 1/4 OD

Regular price From $0.22

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest Shut-Off Valve is used to isolate the supply for service and maintenance. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the filtered pure water market.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to isolate the supply for service and maintenance
Quarter turn to open or close
Connect, disconnect, and reconnect in seconds without tools
Compatible with plastic or copper OD sized tubing
Food Quality and suitable for potable liquids and pure water applications
Polypropylene body with EDPM O-ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

View Prop 65 Warning

Specifications

Product Details
Application

Water
Fitting Connection Size

1/4" Tube OD x 1/4" NPTF
Inlet Connection

1/4" MPT
Outlet Connection

1/4" MPT
Push-In Size

1/4" OD
Seal / O-Ring Material

EPDM
Series

PPSV
Shape

Straight
Shipping Dimensions
Shipping Length

10
10
10
21.65
Shipping Width

10
10
10
10.63
Shipping Height

1
10
4
11.42

Downloads

John Guest Shut-Off Valve Polypro Male NPTF - 1/4 Tube x 1/4 Male NPTF Manual
