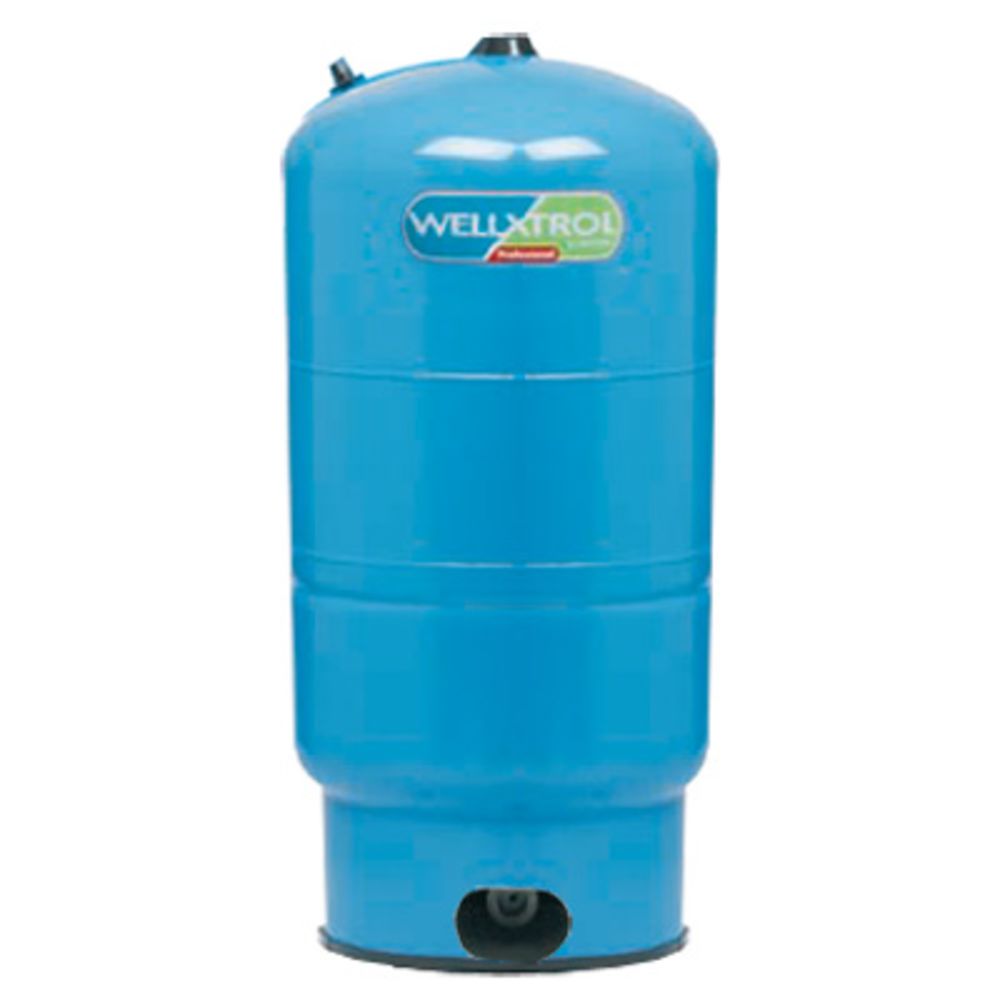

Amtrol Well-X-Trol WX-251 Well Pressure Tank 62 gal

Well-X-Trol WX-251 Well Pressure Tank Features:

The Well-X-Trol WX-251 well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-251 now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Heavy duty butyl diaphragm
Stainless steel system connection
Stainless steel air stem
Virgin polypropylene liner
100% Helium tested
Drawdown 30/50 Setting: 21.1 gallons
7 year warranty
NSF Standard 61 listed

NOTE: $1.99 Shipping is only offered on this product to commercial addresses that have a loading dock. This does NOT include residential addresses. An additional charge of $85.00 for Residential Addresses will be applied after completing your order on the website. Other charges may apply for "Extended Delivery" to rural areas.

Well-X-Trol WX-251 Well Pressure Tank Brochure
Well-X-Trol WX-251 Well Pressure Tank Installation Manual

Tank Specifications

Application(s)

Pressure Pump Tank

Total Volume

62 Gallons

Tank Pre-charge

38 psi

Inlet/Outlet Size

1 1/4" NPTF Stainless Steel

Inlet/Outlet Location

Bottom

Air Valve Stem Location

Top

Drawdown at 30/50 Setting

21.1 Gallons

Dimensions

Height w/ Stand

46-3/4 "

Diameter

22 "

Weight

92 lbs

Operating Conditions

Max Temperature

200 °F

Max Working Pressure

150 psi

Tank Materials

Steel

Diaphragm Materials

Butyl Rubber

Origin

USA

Certifications

NSF 61

Warranty

7 years
