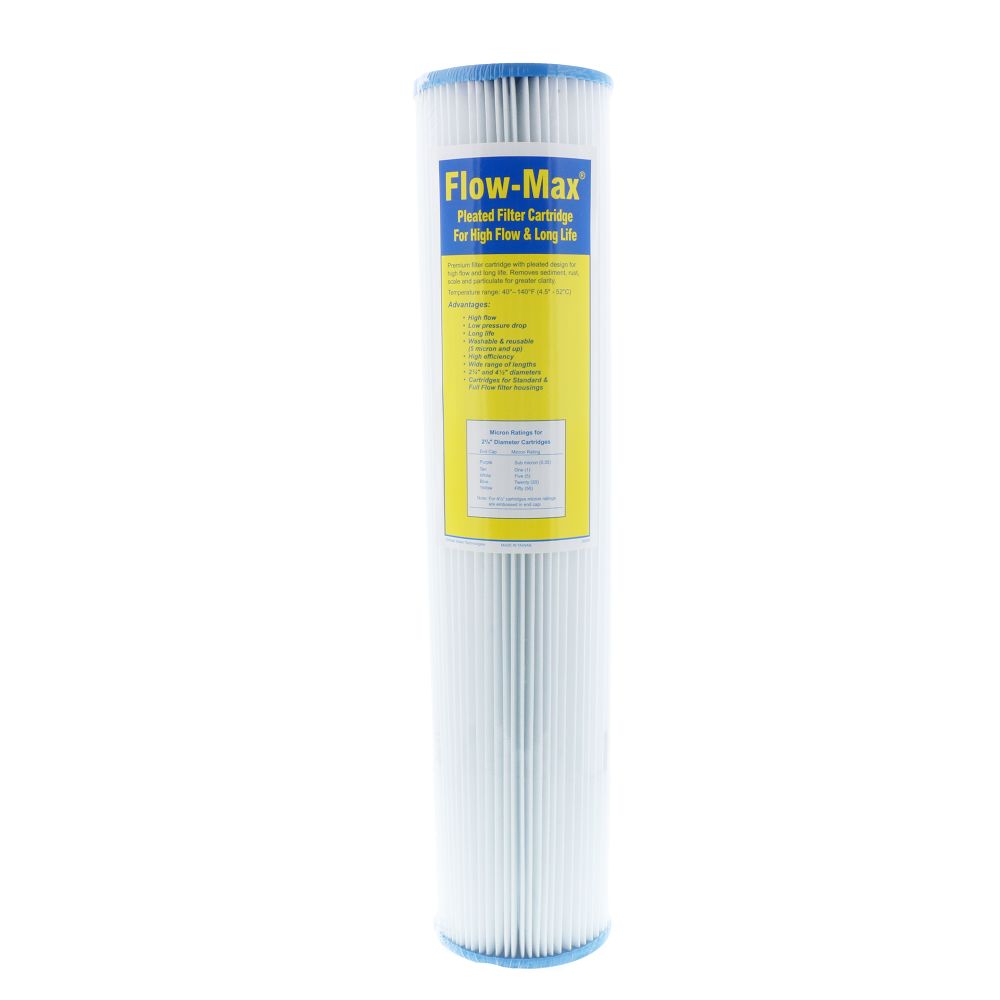

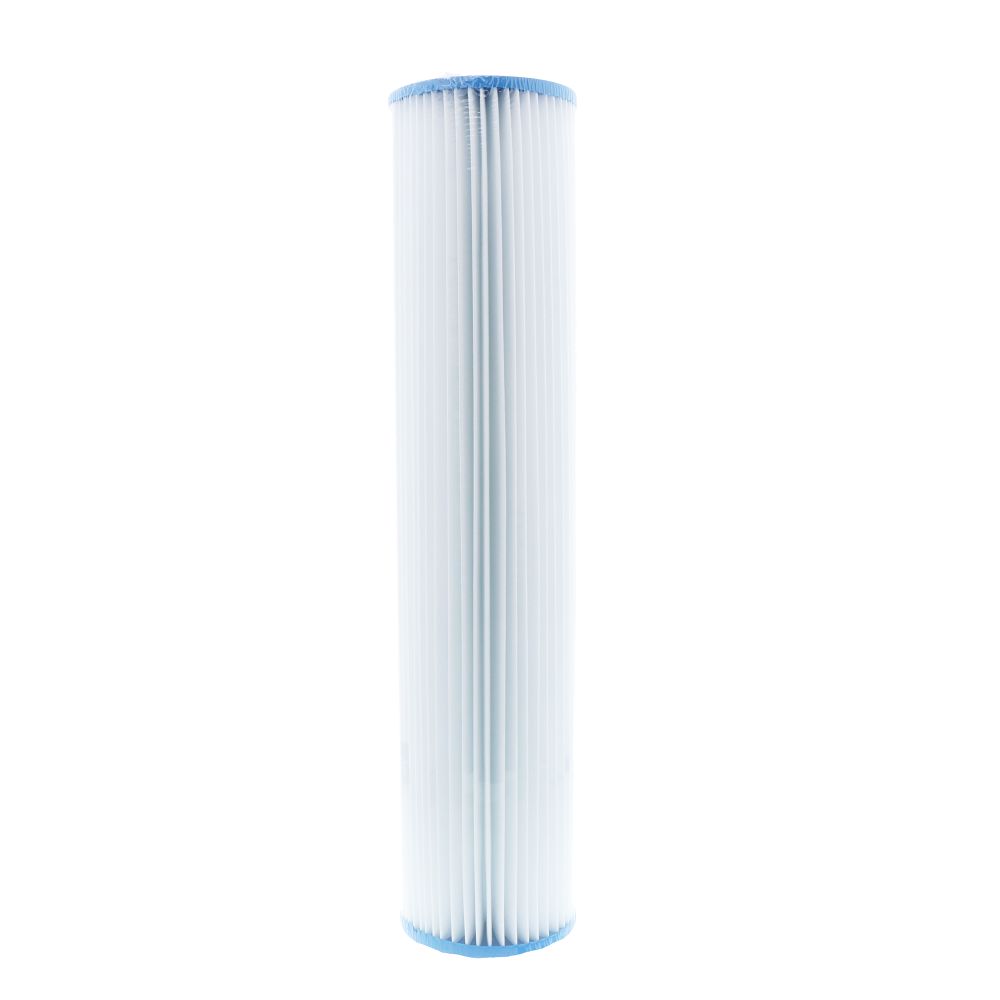

20" × 4-1/2" BB Flow-Max BB Pleated 20 Mic Filter

Flow-Max FM-BB-20-20 Pleated Poly 20" × 4-1/2" BB - 20 Mic Filter

The Flow-Max FM-BB-20-20 Filter Cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the chemically resistant pleated polyester media provides increased surface area and longer life, and are cleanable on filter of 5 microns and up.

Cleanable (Reusable) Filter
Sediment Filtration
20 Micron Nominal
Chemically Resistant Pleated Polyester Filtration
100% Cellulose Free

Flow-Max FM-BB-10-20 Brochure & Technical Specifications

Also known as:

Aqua Sun International	WR-BB
Purwater	PP20-BB-2-S
Unicel	K-40430-B

Filter Specifications

Filter Application

Sediment/Dirt/Rust

Cartridge Style

Drop-In

Micron Rating (Nominal)

20 µm

Manufacturer

Flowmatic

Country of Origin

USA

Dimensions

Length

20" (50.8 cm)

Outer Diameter

4.5" (11.4 cm)

Quantity per case

Operating Conditions

Flow Rate

25 gpm

Temperature Rating

40-140 °F

Filter Life

Capacity

30 psid Gallons

Change Frequency

As Needed

Materials of Construction

End Cap Material

Vinyl-Plastisol

Filter Media

Pleated Polyester

End Caps

DOE

Certifications

Notes:

Cleanable (Reusable) Filter
