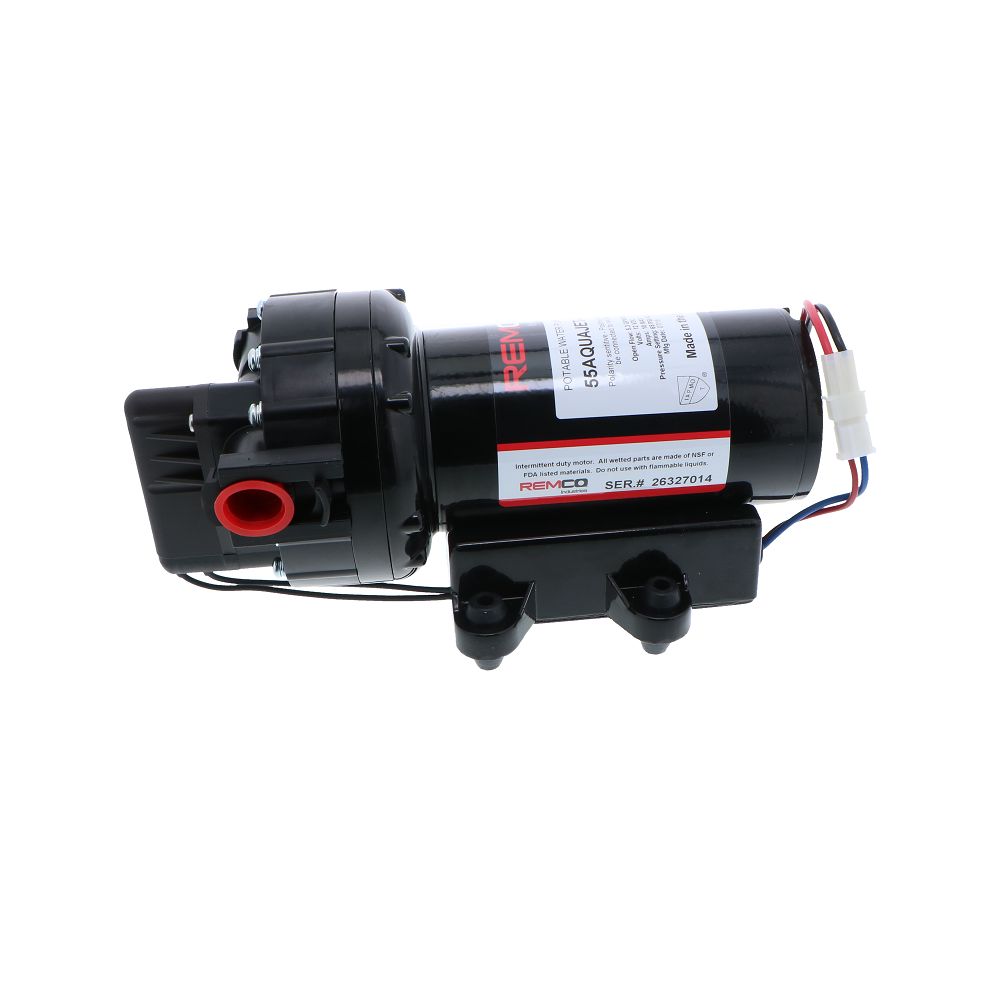

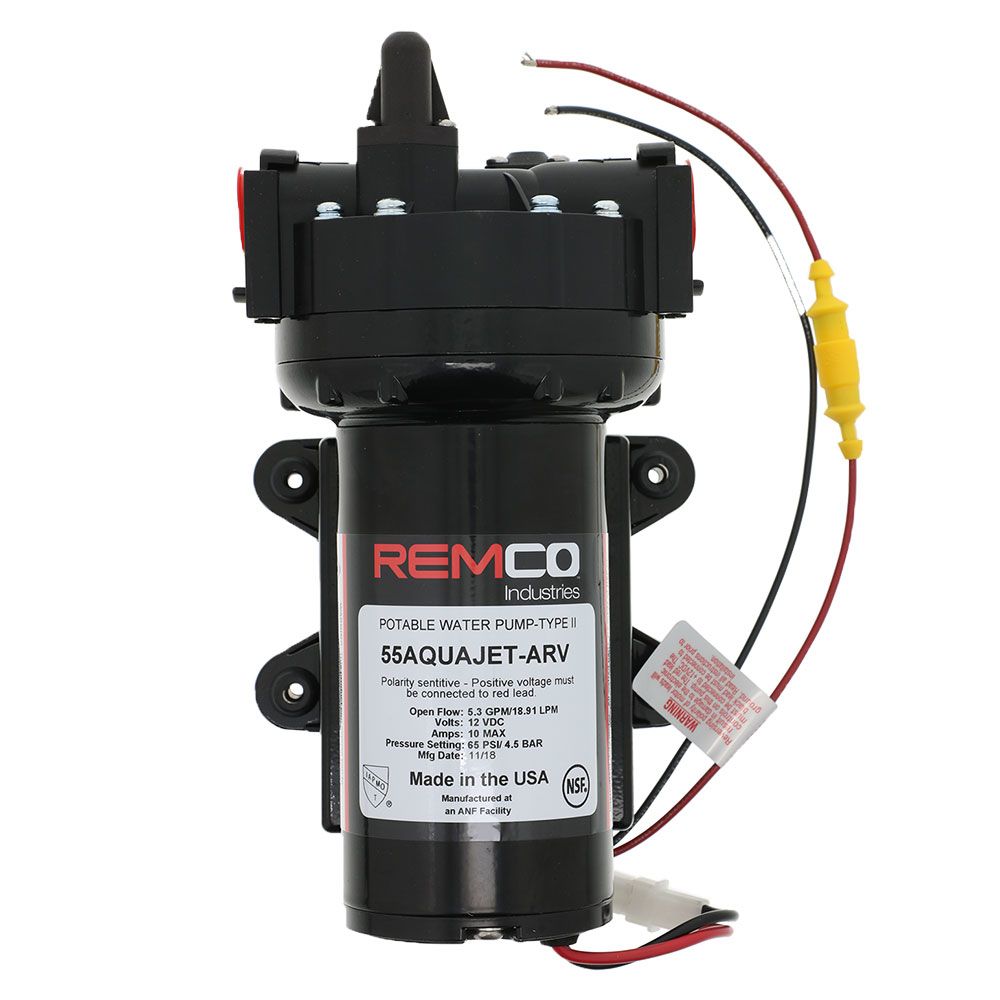

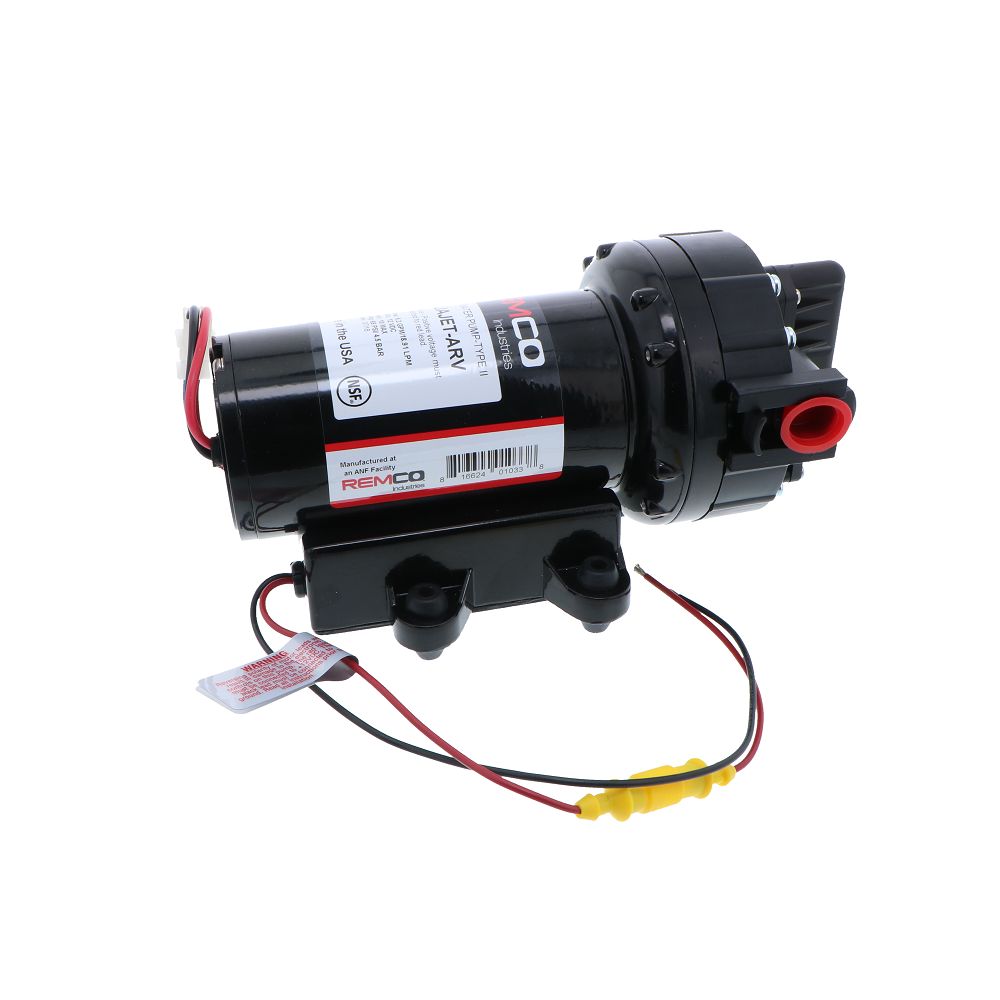

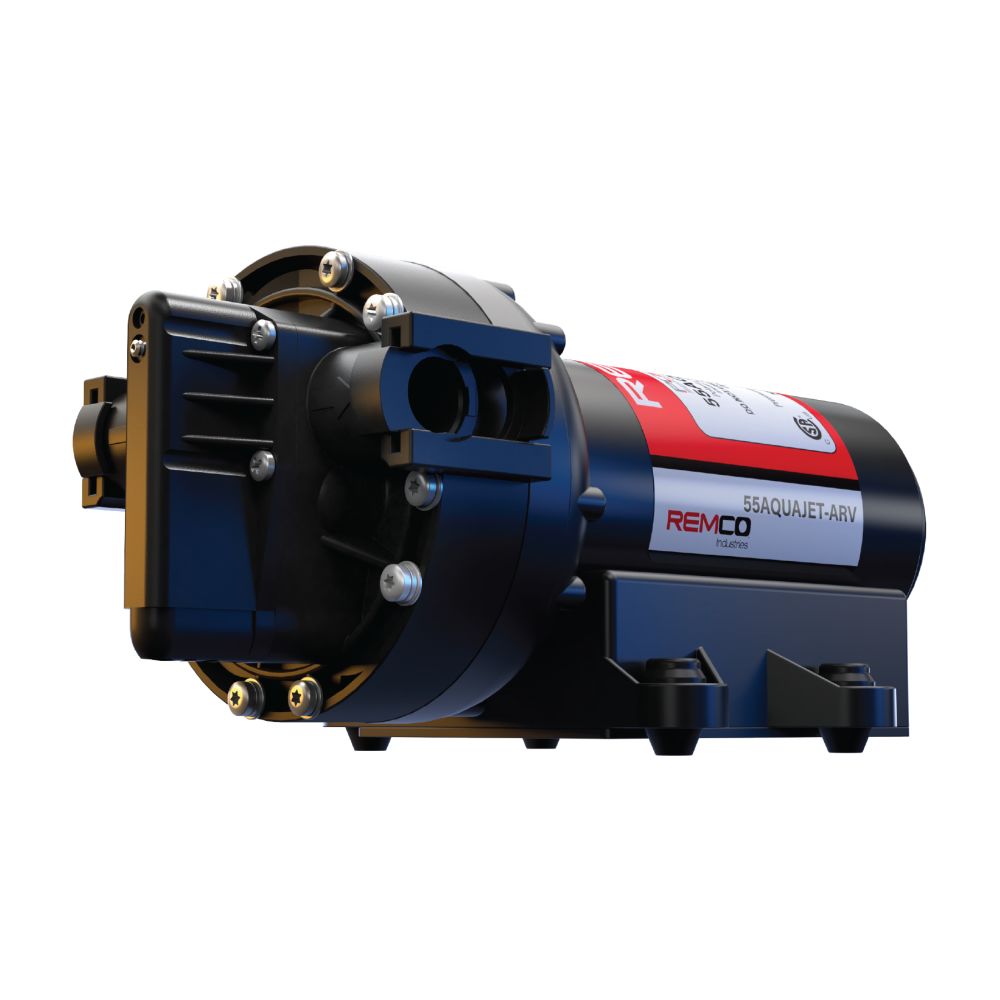

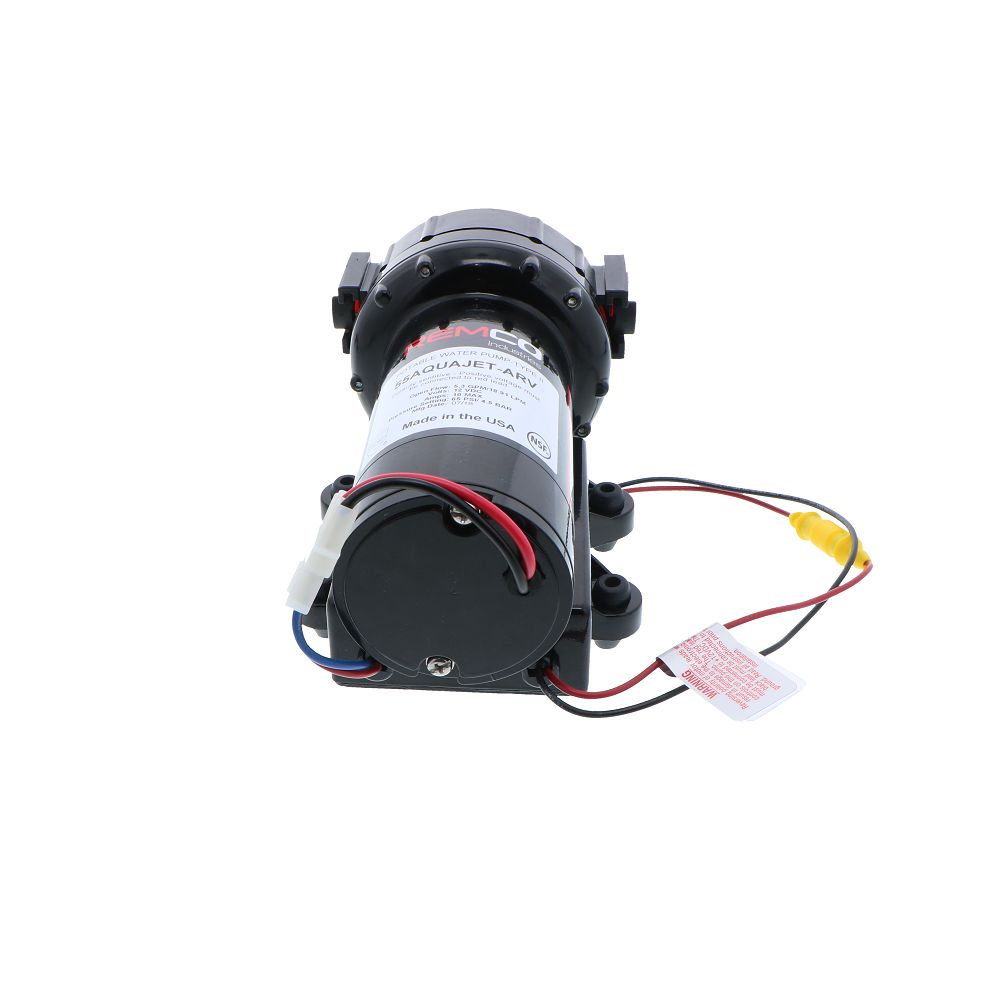

Aquajet RV 5503-AV15-B636 RV Pump 5.3 GPM 12VDC

Aquajet 55-AQUAJET-ARV RV Pump 5.3 gpm @ 85psi 10 Amp 12VDC Benefits:

The 55-AQUAJET-ARV pumps are typically used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

8A revolutionary water pump using digital controls to automatically control motor speed and maintain high pressures as multiple water fixtures are opened or closed.

Aquajet ARV Pump 5.3 gpm @ 85psi 10 Amp 12VDC Features:

Maintains high pressure across multiple outlets
Restores pressure lost through water filtration
5-chamber construction
Works with or without accumulator tank
Independent symmetrical valves
Highest structural integrity w/ engineered composite plastics & corrosion resistant metal
Includes low voltage protection
Includes over pressurization protection
Self-priming & runs dry without damage
Whisper quiet at lower flows & minimal pulsations
2 year warranty
(2) Quad Port 3/4 x 1/2 Male Thread Fittings are included
Multiple porting options sold separately, see Quad Port Fittings

* CAUTION: Overheating and/or electrical fire may result from improperly sized power supply, wiring, fuses/circuit breakers, switches, connectors and controllers used to power the 12 VDC pump.

Aquajet 55-AQUAJET-ARV Pump Technical Information
Aquajet 55-AQUAJET-ARV Pump Specifications
Aquajet 55-AQUAJET-ARV Pump Installation Instructions
Aquajet RV Pump Troubleshooting Guide

Pump Specifications

Pump Type

Demand

Inlet

3/4" Quad Port

Outlet

3/4" Quad port

Flow Rate

5.3gpm@85 psi

Voltage

12VDC

Amps

10 AMP

Motor RPM

2200 RPM

Operating Conditions

Liquid Temperature

140 Max °F

Max system pressure

100 psi

Dimensions

Length

9.95 "

Height

4.58 "

Width

5.00 "

Materials

Housings

Nylon

Valves

EPDM

Diaphragm

Santoprene

Certifcations

Certifications

NSF 58

Mouse over for more information.
