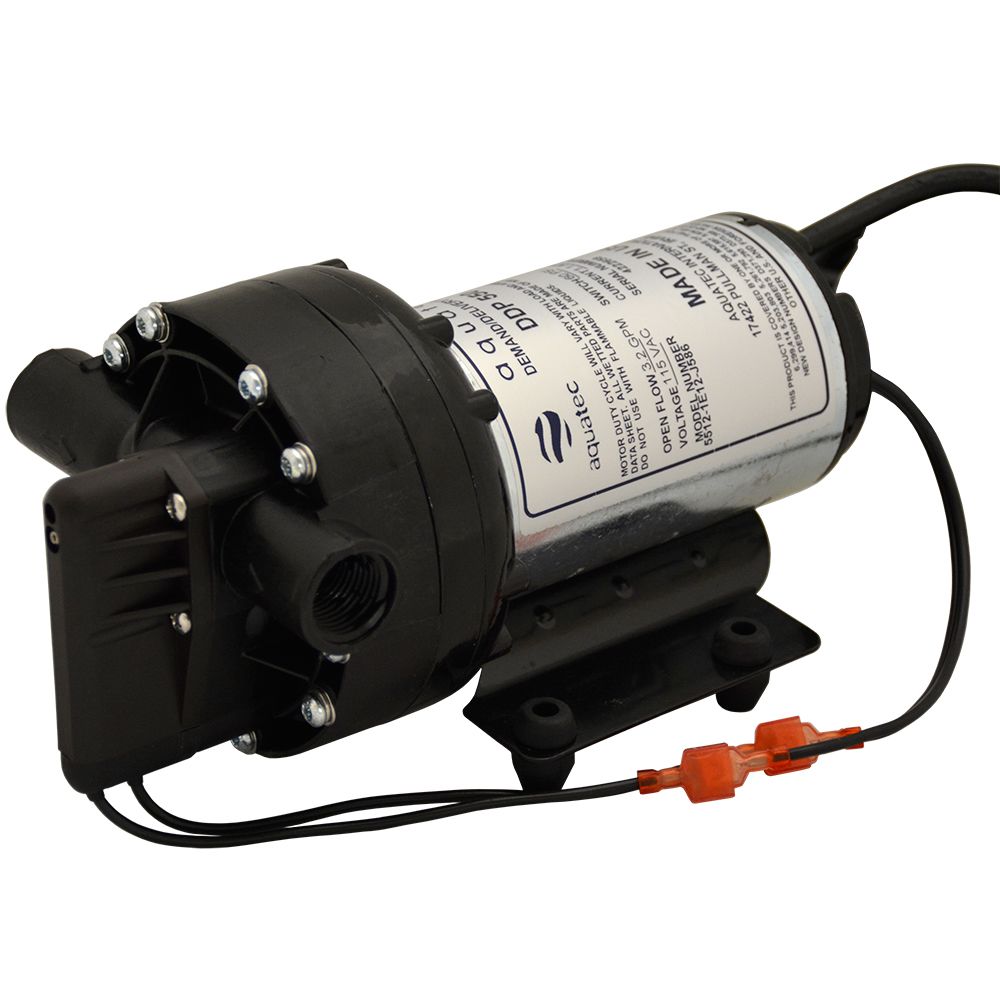

Aquatec 5512-1E12-J586 Pump 3.2 gpm, 1/2 FPT, 115VAC

Aquatec 550 Series Demand Pump 3.2 gpm, 1/2 FPT, 115V AC w/ Cord Features:

The Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

5-chamber construction
Closed impervious diaphragm
Independent symmetrical valves
Highest structural integrity
Ten point clamping
Engineered composite plastics
Corrosion resistant metal
Pressure switch and transducer options

Aquatec 5512-1E12-J586 Demand Pump Benefits:

Self-priming
Unparalleled performance, efficiency
Whisper quiet at lower flows
Minimal pulsations
7 year design life
Runs dry without damage
Chemically resistant versions

Aquatec 5512-1E12-J586 Demand Pump Technical Information Aquatec 550 Series Demand Pump Data

Pump Specifications

Pump Type

Demand

Inlet

1/2" FPT

Outlet

1/2" FPT

Flow Rate

3.2 gpm

Voltage

110VAC

Motor RPM

1600 RPM

Operating Conditions

Shut-off Pressure

60 psi

Liquid Temperature

140 max °F

Dimensions

Length

9.05 "

Height

4.58 "

Width

4.84 "

Materials

Housings

Polypropylene

Valves

EPDM

Diaphragm

Santoprene

Certifcations

Certifications

NSF 58

Mouse over for more information.
