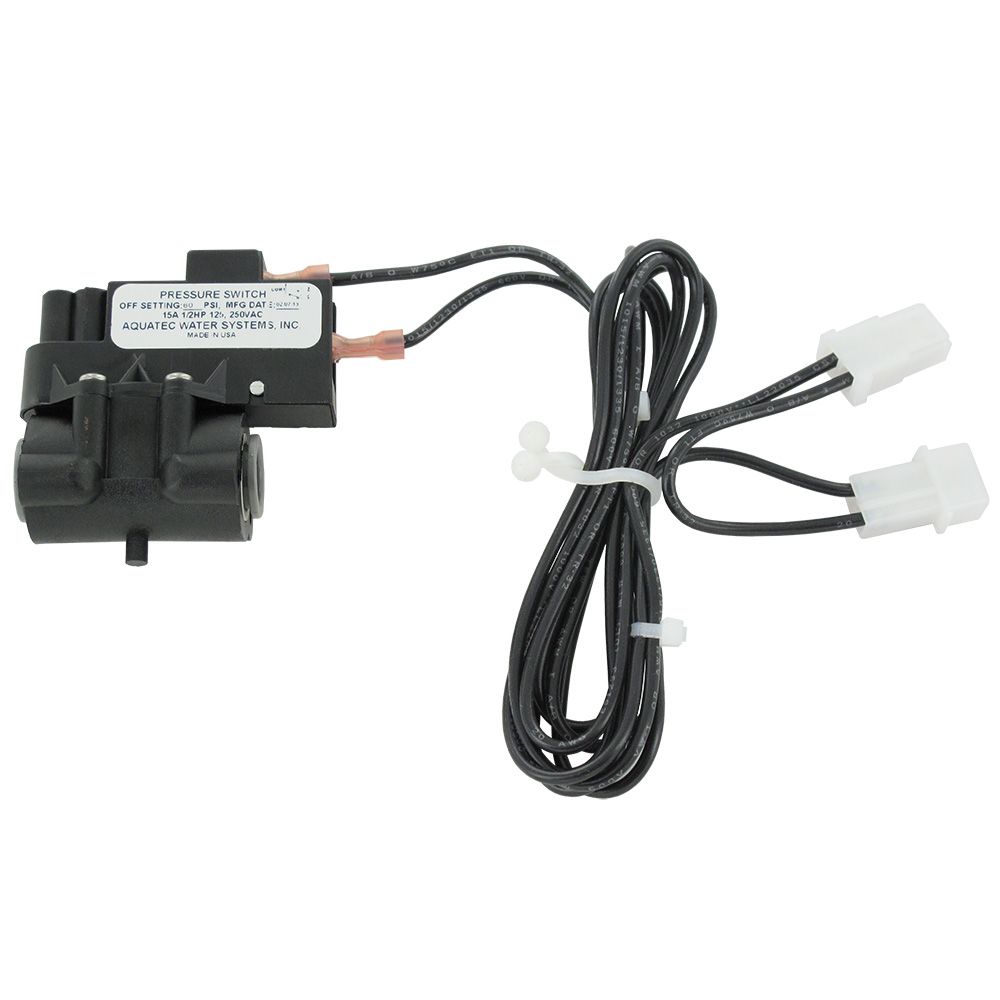

Tank Pressure Shut Off Switch w/ Wire Harness

Model: PSW
Part Number: PSW

Options

40 PSI - 1/4" QC

PSW240-00

$14.35

40 PSI - 3/8" QC

PSW340-00

$14.85

60 PSI - 1/4" QC

PSW260-00

$14.35

60 PSI - 3/8" QC

PSW360-00

$14.85

80 PSI - 1/4" QC

PSW280-00

$14.35

80 PSI - 3/8" QC

PSW380-00

$14.85

Details
Reviews
Related Items

Features:

Inexpensive
Compact
High reliability
100% factory tested
Built-in John Guest half cartridges

Aquatec's PSW tank pressure sensing electrical switches are intended for in-line mounting as close to the hydropneumatic product water tank as possible. Its purpose is to turn off the Booster Pump when the tank is full. The normally closed switch can be factory pre-set at various shut-off pressures. The PSW, when used with a typical under-counter RO system, enables the hydraulic shut-off valve to open and close very reliably and positively. The PSW, with two John Guest half cartridges, is available for either 1/4" or 3/8" tubing. Optionally available are 1/4" or 3/8" Jaco elbows.

When both the permeate pump and a 6800 or 8800 series booster pump are used together or the tank switch psi is above 40, an electronic shut-off valve must be used with the PSW tank switch. If an electronic shut-off valve is not used when the PSW tank switch is above 40 psi, the water will never get shut off and the system will continue to run.

PSW240-00 is comparable to the Shurflo 94-090-01 and the PSW340-00 is comparable to the Shurflo 94-090-02.

Choose a shut off switch according to the pressure that you want the tank to be filled to.

We recommend these accessories:

Wire Harness Assy; 2 way divider 11" FWS # 21-127	$3.65	Qty:
Electronic Shut-off Solenoid Valve with QC fittings 24VAC FWS # 1102X-062CE-B205AN	$27.99	Qty:
Electronic Shut-off Solenoid Valve with QC fittings 24VAC FWS # 1102X-062CE-B205AN	$29.99	Qty:

Customers who purchased this item also bought:

Aquatec 6800 Series RO Booster Pump for up to 50 GPD, 1/4"JG, 24 VAC FWS # 6840-2J03-B221S	$88.47	Qty:
6800 Series Transformer 120VAC/24VAC (US) FWS # TAS114-19EP	$15.88	Qty:
Aquatec 8800 Series Transformer 120V/24VAC 2 Amp (USA) FWS # TACS114-48	$21.98	Qty:
Aquatec 8800 Series Booster Pump 125 PSI, 3/8 JG, 24 VAC FWS # 8852-2J03-B423	$109.49	Qty:
John Guest Shut-Off Valve-Polypro Straight - 3/8 Tube x 3/8 Tube FWS # PPSV041212W	$4.10	Qty:
John Guest Reducing Union Polypro - 3/8 x 1/4 FWS # PP201208W	$2.69	Qty:
